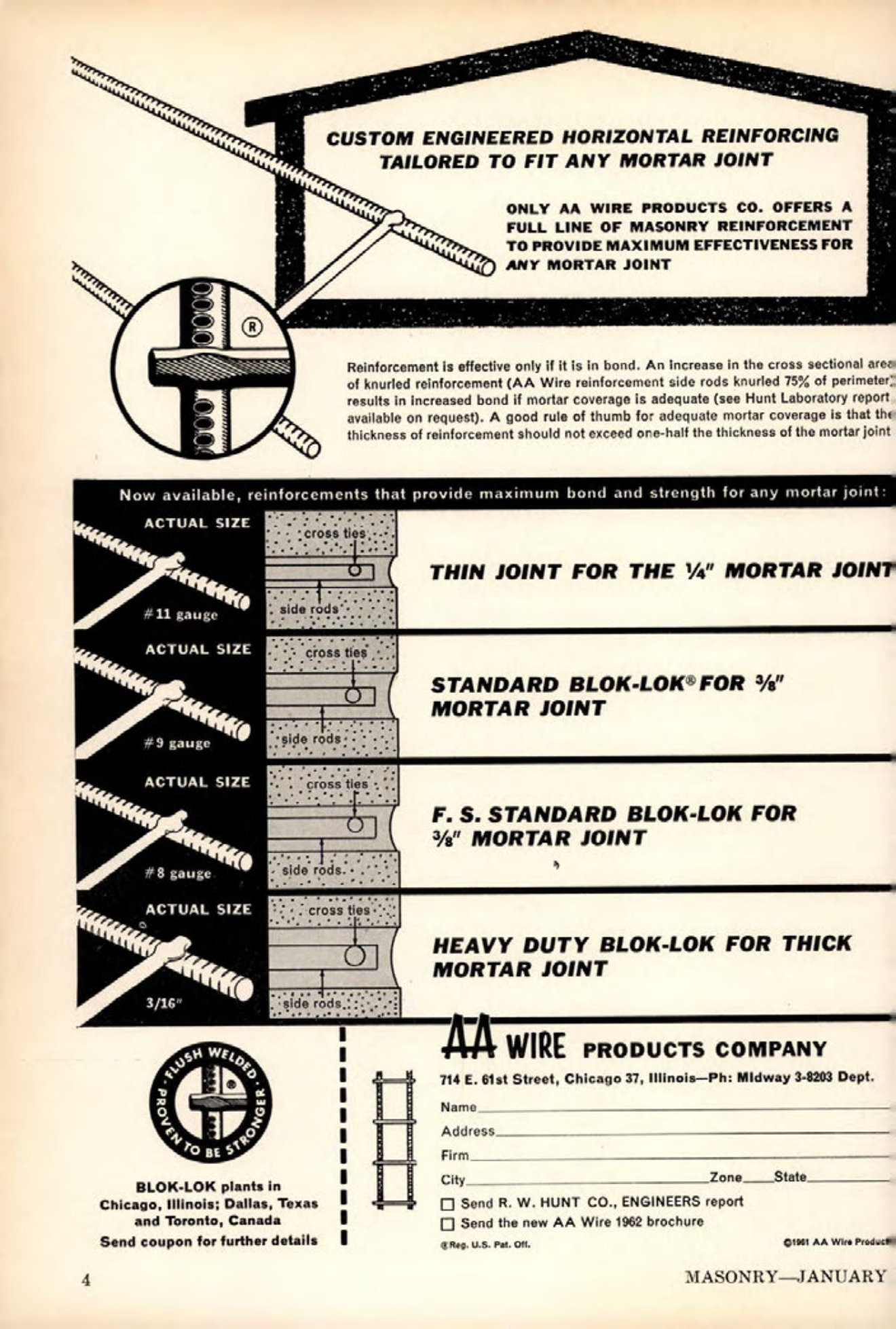

Masonry Magazine January 1962 Page. 4
CUSTOM ENGINEERED HORIZONTAL REINFORCING
TAILORED TO FIT ANY MORTAR JOINT
ONLY AA WIRE PRODUCTS CO. OFFERS A FULL LINE OF MASONRY REINFORCEMENT TO PROVIDE MAXIMUM EFFECTIVENESS FOR ANY MORTAR JOINT
Reinforcement is effective only if it is in bond. An increase in the cross sectional area of knurled reinforcement (AA Wire reinforcement side rods knurled 75% of perimeter results in increased bond if mortar coverage is adequate (see Hunt Laboratory report available on request). A good rule of thumb for adequate mortar coverage is that the thickness of reinforcement should not exceed one-half the thickness of the mortar joint.
Now available, reinforcements that provide maximum bond and strength for any mortar joint:
ACTUAL SIZE
cross ties
THIN JOINT FOR THE 14" MORTAR JOINT
side rods
#11 gauge
ACTUAL SIZE
cross ties
STANDARD BLOK-LOK® FOR %" MORTAR JOINT
#9 gauge
side rods
ACTUAL SIZE
cross ties
F. S. STANDARD BLOK-LOK FOR 3/8" MORTAR JOINT
4
#8 gauge
side rods.
ACTUAL SIZE
cross tie
3/16"
FLUSH WELDED
E
EN TO BE STRO
side rods,
HEAVY DUTY BLOK-LOK FOR THICK MORTAR JOINT
AA WIRE PRODUCTS COMPANY
714 E. 61st Street, Chicago 37, Illinois-Ph: Midway 3-8203 Dept.
Name
Address.
Firm.
City
Zone State
Send R. W. HUNT CO., ENGINEERS report
Send the new AA Wire 1962 brochure
Reg. U.S. Pat. Of
AA Wire Produc
MASONRY-JANUARY
BLOK-LOK plants in
Chicago, Illinois; Dallas, Texas
and Toronto, Canada
Send coupon for further details
