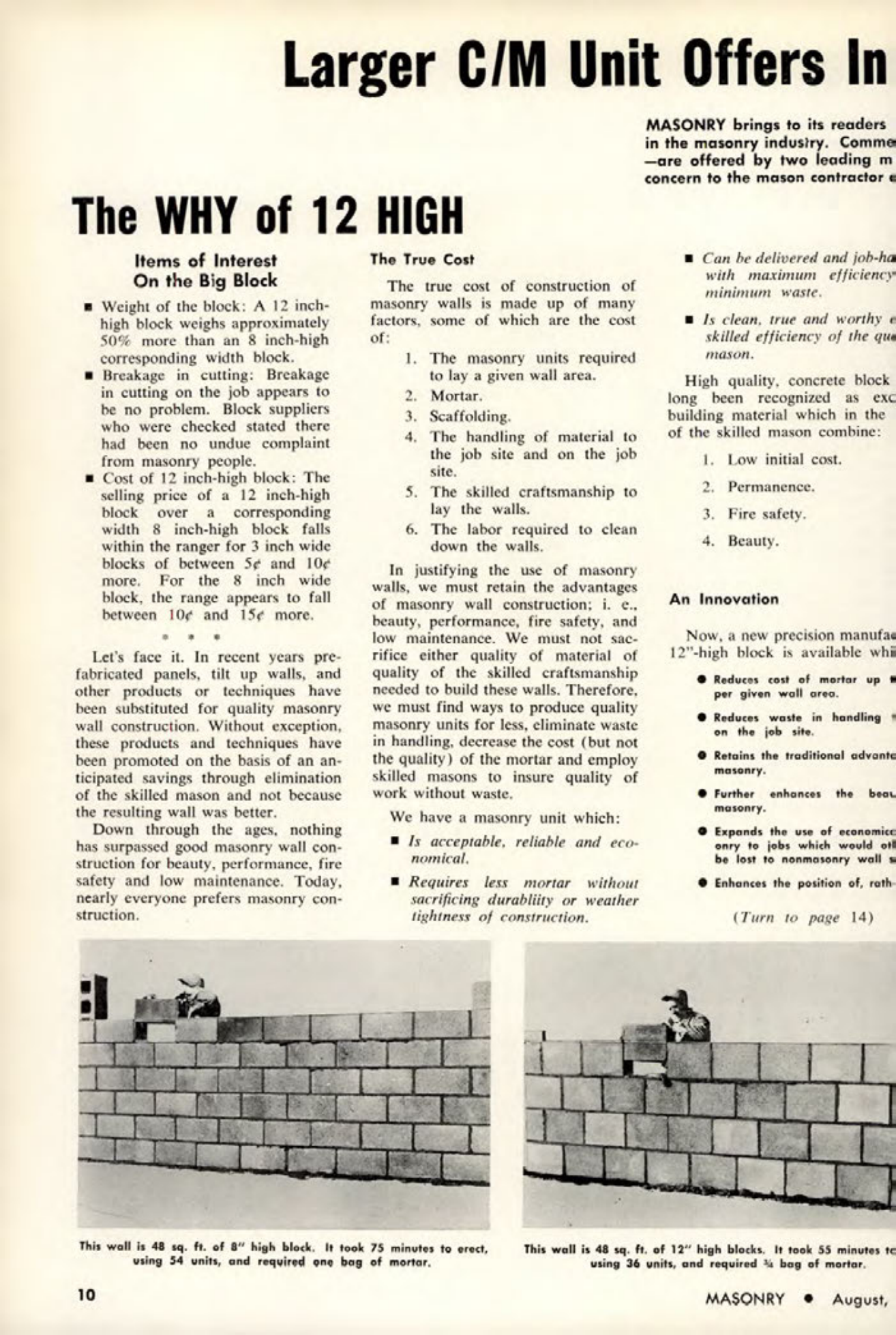

Masonry Magazine August 1962 Page. 10
Larger C/M Unit Offers In
The WHY of 12 HIGH
# Items of Interest On the Big Block
Weight of the block: A 12 inch- high block weighs approximately 50% more than an 8 inch-high corresponding width block.
Breakage in cutting: Breakage in cutting on the job appears to be no problem. Block suppliers who were checked stated there had been no undue complaint from masonry people.
Cost of 12 inch-high block: The selling price of a 12 inch-high block over a corresponding width 8 inch-high block falls within the ranger for 3 inch wide blocks of between 5e and 104 more. For the 8 inch wide block, the range appears to fall between 10 and 15 more.
Let's face it. In recent years pre- fabricated panels, tilt up walls, and other products or techniques have been substituted for quality masonry wall construction. Without exception, these products and techniques have been promoted on the basis of an anticipated savings through elimination of the skilled mason and not because the resulting wall was better.
Down through the ages, nothing has surpassed good masonry wall construction for beauty, performance, fire safety and low maintenance. Today, nearly everyone prefers masonry construction.
# The True Cost
The true cost of construction of masonry walls is made up of many factors, some of which are the cost of:
1. The masonry units required to lay a given wall area.
2. Mortar.
3. Scaffolding.
4. The handling of material to the job site and on the job site.
5. The skilled craftsmanship to lay the walls.
6. The labor required to clean down the walls.
In justifying the use of masonry walls, we must retain the advantages of masonry wall construction; i. e., beauty, performance, fire safety, and low maintenance. We must not sacrifice either quality of material of quality of the skilled craftsmanship needed to build these walls. Therefore, we must find ways to produce quality masonry units for less, eliminate waste in handling, decrease the cost (but not the quality) of the mortar and employ skilled masons to insure quality of work without waste.
We have a masonry unit which:
Is acceptable, reliable and economical.
Requires less mortar without sacrificing durabliity or weather tightness of construction.
MASONRY brings to its readers in the masonry industry. Comme -are offered by two leading m concern to the mason contractor
Can be delivered and job-ha with maximum efficiency minimum waste.
Is clean, true and worthy e skilled efficiency of the que mason.
High quality, concrete block long been recognized as exc building material which in the of the skilled mason combine:
1. Low initial cost.
2. Permanence.
3. Fire safety.
4. Beauty.
# An Innovation
Now, a new precision manufa 12"-high block is available whi
Reduces cost of mertar up per given wall area.
Reduces waste in handling on the job site.
Retains the traditional advante masonry.
Further enhances the beas masonry.
Expands the use of economicc onry to jobs which would etil be lost to nonmasonry wall s
Enhances the position of, rath
(Turn to page 14)
This wall is 48 sq. ft. of a high block. It took 75 minutes to erect, using 54 units, and required one bag of mortar. This wall is 48 sq. ft. of 12" high blocks. It took 55 minutes t using 36 units, and required beg of mortar.
