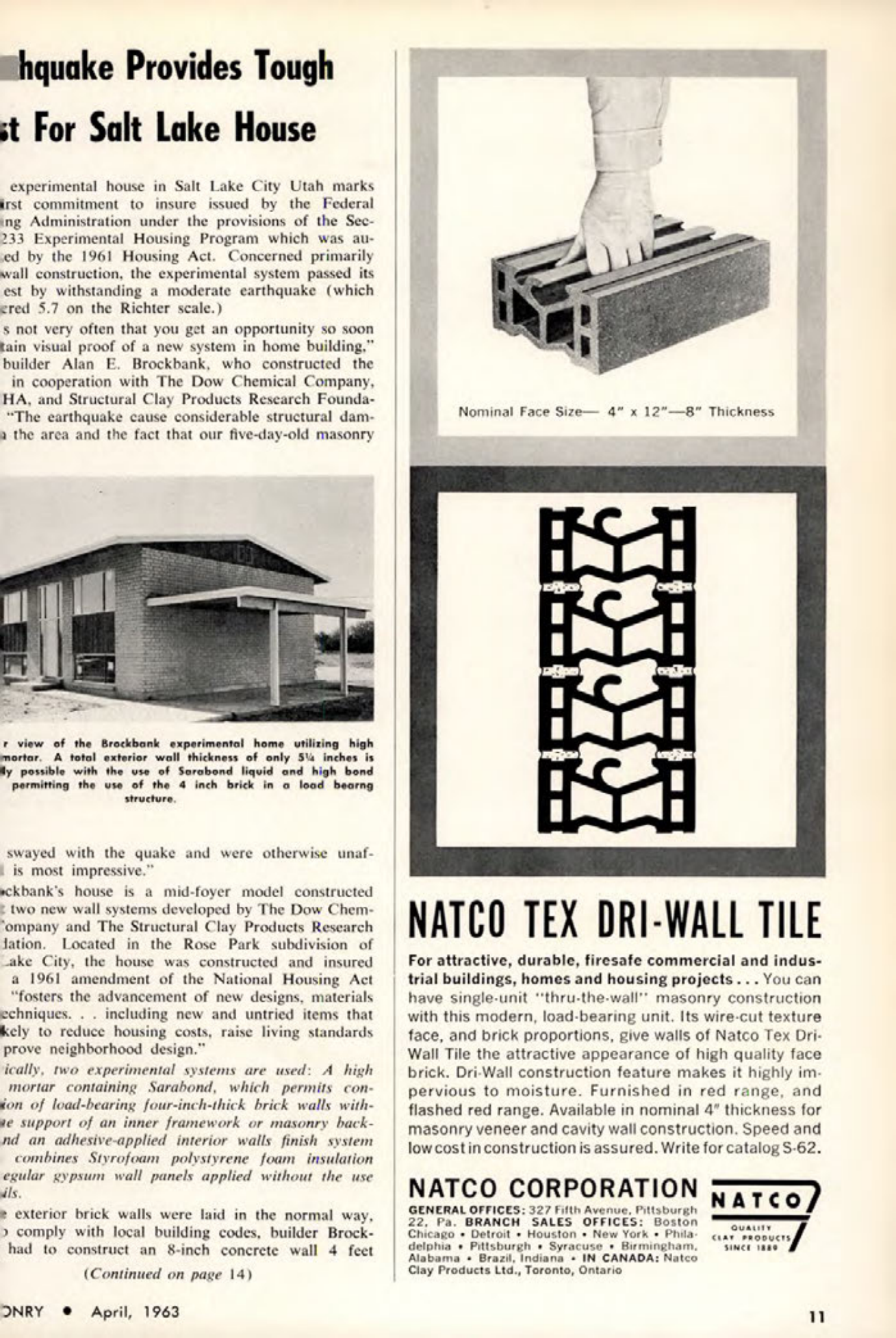

Masonry Magazine April 1963 Page. 11
Earthquake Provides Tough Test For Salt Lake House
An experimental house in Salt Lake City, Utah, marks the first commitment to insure issued by the Federal Housing Administration under the provisions of the Section 233 Experimental Housing Program which was authorized by the 1961 Housing Act. Concerned primarily with wall construction, the experimental system passed its first test by withstanding a moderate earthquake (which registered 5.7 on the Richter scale.)
"It's not very often that you get an opportunity so soon to obtain visual proof of a new system in home building," said builder Alan E. Brockbank, who constructed the home in cooperation with The Dow Chemical Company, FHA, and Structural Clay Products Research Foundation. "The earthquake cause considerable structural damage in the area and the fact that our five-day-old masonry Nominal Face Size 4" x 12"-8" Thickness swayed with the quake and were otherwise unaffected is most impressive."
A view of the Brockbank experimental home utilizing high mortar. A total exterior wall thickness of only Sta inches is ly possible with the use of Saraband liquid and high bend permitting the use of the 4 inch brick in a load bearng structure.
Brockbank's house is a mid-foyer model constructed with two new wall systems developed by The Dow Chemical Company and The Structural Clay Products Research Foundation. Located in the Rose Park subdivision of Salt Lake City, the house was constructed and insured under a 1961 amendment of the National Housing Act which "fosters the advancement of new designs, materials and techniques, including new and untried items that are likely to reduce housing costs, raise living standards and improve neighborhood design."
Basically, two experimental systems are used: A high mortar containing Sarabond, which permits construction of load-bearing four-inch-thick brick walls without the support of an inner framework or masonry backing, and an adhesive-applied interior walls finish system which combines Styrofoam polystyrene foam insulation and regular gypsum wall panels applied without the use of nails.
The exterior brick walls were laid in the normal way, to comply with local building codes, builder Brockbank had to construct an 8-inch concrete wall 4 feet (Continued on page 14)
NATCO TEX DRI-WALL TILE
For attractive, durable, firesafe commercial and industrial buildings, homes and housing projects... You can have single-unit "thru-the-wall" masonry construction with this modern, load-bearing unit. Its wire-cut texture face, and brick proportions, give walls of Natco Tex Dri-Wall Tile the attractive appearance of high quality face brick. Dri-Wall construction feature makes it highly impervious to moisture. Furnished in red range, and flashed red range. Available in nominal 4" thickness for masonry veneer and cavity wall construction. Speed and low cost in construction is assured. Write for catalog S-62.
NATCO CORPORATION
GENERAL OFFICES: 327 Fifth Avenue, Pittsburgh 22, Pa. BRANCH SALES OFFICES: Boston Chicago Detroit Houston New York Philadelphia Pittsburgh Syracuse Birmingham, Alabama Brazil, Indiana IN CANADA: Natco Clay Products Ltd., Toronto, Ontario
ONRY
April, 1963
11
