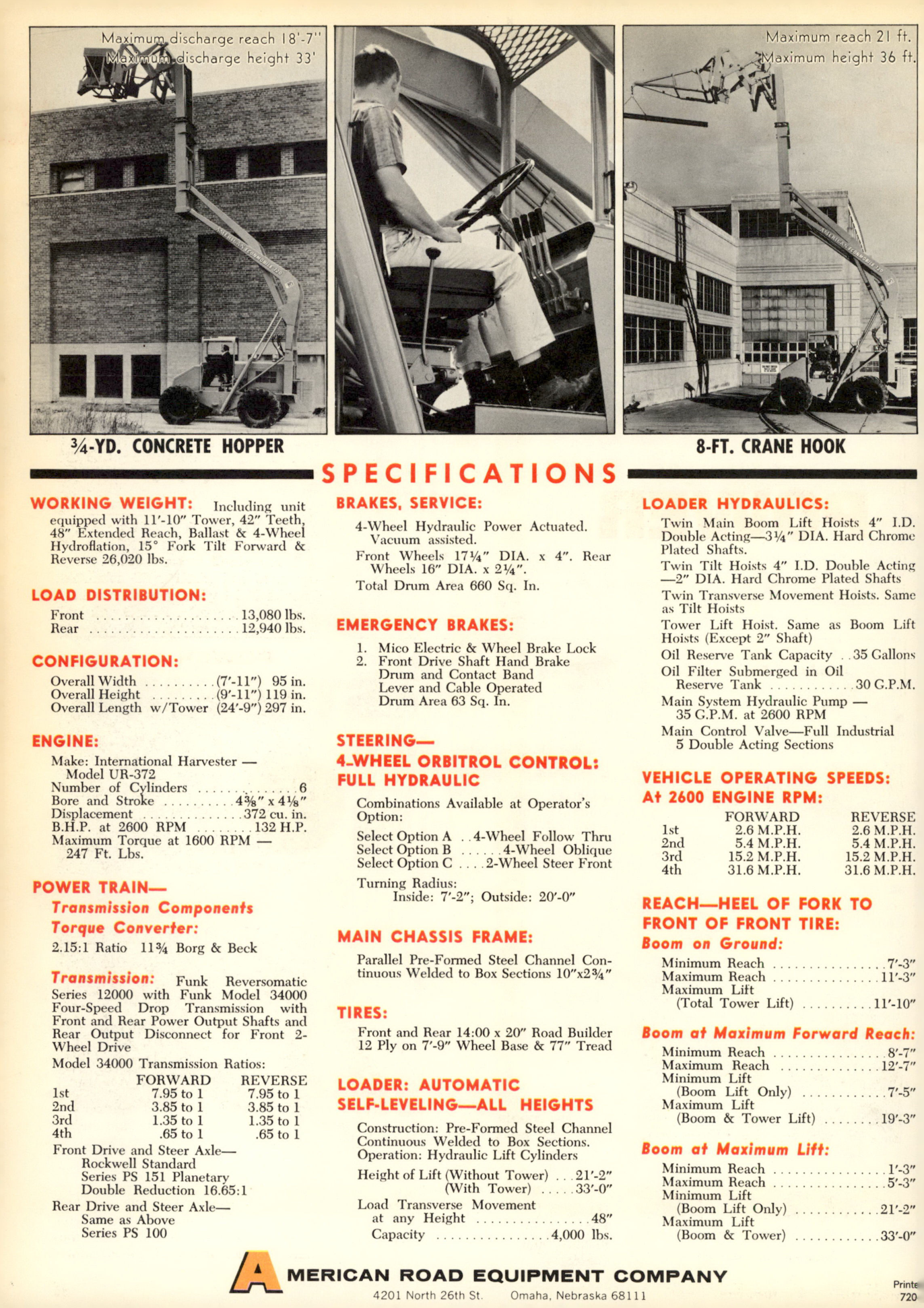

Masonry Magazine January 1965 Page. 34
Maximum discharge reach 18-7"
Discharge height 33'
Maximum reach 21 ft.
Maximum height 36 ft.
3/4-YD. CONCRETE HOPPER
8-FT. CRANE HOOK
SPECIFICATIONS
BRAKES, SERVICE:
4-Wheel Hydraulic Power Actuated. Vacuum assisted. Front Wheels 174" DIA. x 4". Rear Wheels 16" DIA. x 24". Total Drum Area 660 Sq. In.
LOADER HYDRAULICS:
Twin Main Boom Lift Hoists 4" LD. Double Acting-34" DIA. Hard Chrome Plated Shafts.
Twin Tilt Hoists 4" I.D. Double Acting -2" DIA. Hard Chrome Plated Shafts. Twin Transverse Movement Hoists. Same as Tilt Hoists.
Tower Lift Hoist. Same as Boom Lift Hoists (Except 2" Shaft)
Oil Reserve Tank Capacity 35 Gallons
Oil Filter Submerged in Oil Reserve Tank....
Main System Hydraulic Pump 35 G.P.M. at 2600 RPM
30 C.P.M.
Main Control Valve Full Industrial 5 Double Acting Sections
EMERGENCY BRAKES:
1. Mico Electric & Wheel Brake Lock
2. Front Drive Shaft Hand Brake Drum and Contact Band Lever and Cable Operated Drum Area 63 Sq. In.
VEHICLE OPERATING SPEEDS:
A+ 2600 ENGINE RPM:
FORWARD
REVERSE
1st 2.6 Μ.Ρ.Η. 2.6 Μ.Ρ.Η.
2nd 5.4 Μ.Ρ.Η. 5.4 Μ.Ρ.Η.
3rd 15.2 Μ.Ρ.Η. 15.2 Μ.Ρ.Η.
4th 31.6 Μ.Ρ.Η. 31.6 Μ.Ρ.Η.
STEERING-
4-WHEEL ORBITROL CONTROL:
FULL HYDRAULIC
Combinations Available at Operator's Option:
Select Option A
Select Option B
Select Option C
Turning Radius:
4-Wheel Follow Thru
4-Wheel Oblique
2-Wheel Steer Front
Inside: 7-2"; Outside: 20-0"
REACH-HEEL OF FORK TO FRONT OF FRONT TIRE:
Boom on Ground:
Minimum Reach 7-3"
Maximum Reach 11'-3"
Maximum Lift (Total Tower Lift) 11-10"
MAIN CHASSIS FRAME:
Parallel Pre-Formed Steel Channel Continuous Welded to Box Sections 10"x24"
Boom at Maximum Forward Reach:
Minimum Reach 8-7
Maximum Reach 12-7"
Minimum Lift (Boom Lift Only) 7-5"
Maximum Lift (Boom & Tower Lift) 19-3
TIRES:
Front and Rear 14:00 x 20" Road Builder 12 Ply on 7-9" Wheel Base & 77" Tread
Boom at Maximum Lift:
Minimum Reach 1-3
Maximum Reach 5-3"
Minimum Lift (Boom Lift Only) 21-2
Maximum Lift (Boom & Tower) 33-0
LOADER: AUTOMATIC
SELF-LEVELING-ALL HEIGHTS
Construction: Pre-Formed Steel Channel Continuous Welded to Box Sections.
Operation: Hydraulic Lift Cylinders
Height of Lift (Without Tower) 21-2"
Load Transverse Movement (With Tower) 33-0
at any Height 48"
Capacity 4,000 lbs.
WORKING WEIGHT: Including unit equipped with 11-10" Tower, 42" Teeth, 48 Extended Reach, Ballast & 4-Wheel Hydroflation, 15° Fork Tilt Forward & Reverse 26,020 lbs.
LOAD DISTRIBUTION:
Front 13,080 lbs.
Rear 12,940 lbs.
CONFIGURATION:
Overall Width (7-11") 95 in.
Overall Height (9-11) 119 in.
Overall Length w/Tower (24-9") 297 in.
ENGINE:
Make: International Harvester
Model UR-372
Number of Cylinders
Bore and Stroke
Displacement 372 cu. in.
B.H.P. at 2600 RPM 132 H.P.
Maximum Torque at 1600 RPM 247 Ft. Lbs.
POWER TRAIN-
Transmission Components
Torque Converter: 2.15:1 Ratio 114 Borg & Beck
Transmission: Funk Reversomatic Series 12000 with Funk Model 34000 Four-Speed Drop Transmission with Front and Rear Power Output Shafts and Rear Output Disconnect for Front 2-Wheel Drive
Model 34000 Transmission Ratios:
FORWARD
REVERSE
1st 7.95 to 1 7.95 to 1
2nd 3.85 to 1 3.85 to 1
3rd 1.35 to 1 1.35 to 1
4th .65 to 1 65 to 1
Front Drive and Steer Axle-
Rockwell Standard
Series PS 151 Planetary
Double Reduction 16.65:1
Rear Drive and Steer Axle-
Same as Above
Series PS 100
A
MERICAN ROAD EQUIPMENT COMPANY
4201 North 26th St. Omaha, Nebraska 68111
