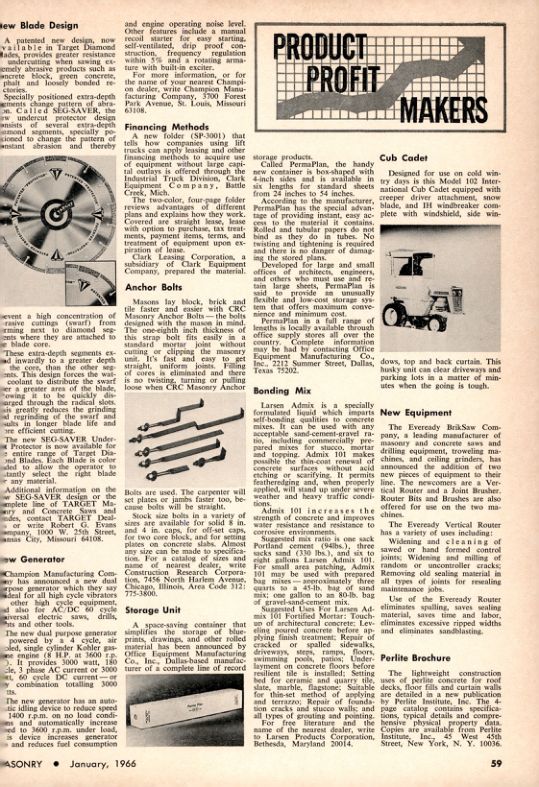

Masonry Magazine January 1966 Page. 57
New Blade Design
A patented new design, now available in Target Diamond Blades, provides greater resistance to undercutting when sawing extremely abrasive products such as concrete block, green concrete, asphalt and loosely bonded refractories.
Specially positioned extra-depth segments change the pattern of abrasion. Called SEG-SAVER, the new undercut protector design consists of several extra-depth diamond segments, specially positioned to change the pattern of constant abrasion and thereby prevent a high concentration of abrasive cuttings (swarf) from forming next to diamond segments where they are attached to the blade core.
These extra-depth segments extend inwardly to a greater depth than the other segments. This design forces the water coolant to distribute the swarf over a greater area of the blade, allowing it to be quickly discharged through the radical slots. This greatly reduces the grinding and regrinding of the swarf and results in longer blade life and more efficient cutting.
The new SEG-SAVER Undercut Protector is now available for the entire range of Target Diamond Blades. Each Blade is color coded to allow the operator to instantly select the right blade for any material.
Additional information on the SEG-SAVER design or the complete line of TARGET Masonry and Concrete Saws and Blades, contact TARGET Dealers or write Robert G. Evans Company, 1000 W. 25th Street, Kansas City, Missouri 64108.
New Generator
Champion Manufacturing Company has announced a new dual purpose generator which they say is ideal for all high cycle vibrators or other high cycle equipment, and also for AC/DC 60 cycle universal electric saws, drills, kits and other tools.
The new dual purpose generator is powered by a 4 cycle, air cooled, single cylinder Kohler gasoline engine (8 HP. at 3600 r.p.m.). It provides 3000 watt, 180 cycle, 3 phase AC current or 3000 watt, 60 cycle DC current-or a combination totalling 3000 watts.
The new generator has an automatic idling device to reduce speed to 1400 r.p.m. on no load conditions and automatically increase speed to 3600 r.p.m. under load. This device increases generator life and reduces fuel consumption and engine operating noise level. Other features include a manual recoil starter for easy starting, self-ventilated, drip proof construction, frequency regulation within 5% and a rotating armature with built-in exciter.
For more information, or for the name of your nearest Champion dealer, write Champion Manufacturing Company, 3700 Forest Park Avenue, St. Louis, Missouri 63108.
Financing Methods
A new folder (SP-3001) that tells how companies using lift trucks can apply leasing and other financing methods to acquire use of equipment without large capital outlays is offered through the Industrial Truck Division, Clark Equipment Company, Battle Creek, Mich.
The two-color, four-page folder reviews advantages of different plans and explains how they work. Covered are straight lease, lease with option to purchase, tax treatments, payment items, terms, and treatment of equipment upon expiration of lease.
Clark Leasing Corporation, a subsidiary of Clark Equipment Company, prepared the material.
Anchor Bolts
Masons lay block, brick and tile faster and easier with CRC Masonry Anchor Bolts, the bolts designed with the mason in mind. The one-eighth inch thickness of this strap bolt fits easily in a standard mortar joint without cutting or clipping the masonry unit. It's fast and easy to get straight, uniform joints. Filling of cores is eliminated and there is no twisting, turning or pulling loose when CRC Masonry Anchor Bolts are used. The carpenter will set plates or jambs faster too, because bolts will be straight.
Stock size bolts in a variety of sizes are available for solid & in. and 4 in. caps, for off-set caps, for two core block, and for setting plates on concrete slabs. Almost any size can be made to specification. For a catalog of sizes and name of nearest dealer, write Construction Research Corporation, 7456 North Harlem Avenue, Chicago, Illinois, Area Code 312: 775-3800.
Storage Unit
A space-saving container that simplifies the storage of blue prints, drawings, and other rolled material has been announced by Office Equipment Manufacturing Co., Inc, Dallas-based manufacturer of a complete line of record storage products.
Called PermaPlan, the handy new container is box-shaped with 4-inch sides and is available in six lengths for standard sheets from 24 inches to 54 inches.
According to the manufacturer, PermaPlan has the special advantage of providing instant, easy access to the material it contains. Rolled and tubular papers do not bind as they do in tubes. No twisting and tightening is required and there is no danger of damaging the stored plans.
Developed for large and small offices of architects, engineers, and others who must use and retain large sheets, PermaPlan is said to provide an unusually flexible and low-cost storage system that offers maximum convenience and minimum cost.
PermaPlan in a full range of lengths is locally available through office supply stores all over the country. Complete information may be had by contacting Office Equipment Manufacturing Co., Inc., 2212 Summer Street, Dallas, Texas 75202.
Bonding Mix
Larsen Admix is a specially formulated liquid which imparts self-bonding qualities to concrete mixes. It can be used with any acceptable sand-cement-gravel ratio, including commercially prepared mixes for stucco, mortar and topping. Admix 101 makes possible the thin-coat renewal of concrete surfaces without acid etching or scarifying. It permits featheredging and, when properly applied, will stand up under severe weather and heavy traffic conditions.
Admix 101 increases the strength of concrete and improves water resistance and resistance to corrosive environments.
Suggested mix ratio is one sack Portland cement (94lbs.), three sacks sand (330 lbs.), and six to eight gallons Larsen Admix 101. For small area patching, Admix 101 may be used with prepared bag mixes approximately three quarts to a 45-lb. bag of sand mix; one gallon to an 80-lb. bag of gravel-sand-cement mix.
Suggested Uses For Larsen Admix 101 Fortified Mortar: Touch up of architectural concrete: Leveling poured concrete before applying finish treatment: Repair of cracked or spalled sidewalks, driveways, steps, ramps, floors, swimming pools, patios; Underlayment on concrete floors before resilient tile is installed; Setting bed for ceramic and quarry tile, slate, marble, flagstone; Suitable for thin-set method of applying and terrazzo; Repair of foundation cracks and stucco walls; and all types of grouting and pointing.
For free literature and the name of the nearest dealer, write to Larsen Products Corporation, Bethesda, Maryland 20014.
Cub Cadet
Designed for use on cold wintry days is this Model 102 International Cub Cadet equipped with creeper driver attachment, snow blade, and IH windbreaker complete with windshield, side windows, top and back curtain. This husky unit can clear driveways and parking lots in a matter of minutes when the going is tough.
New Equipment
The Eveready BrikSaw Company, a leading manufacturer of masonry and concrete saws and drilling equipment, troweling machines, and ceiling grinders, has announced the addition of two new pieces of equipment to their line. The newcomers are a Vertical Router and a Joint Brusher. Router Bits and Brushes are also offered for use on the two machines.
The Eveready Vertical Router has a variety of uses including: Widening and cleaning of sawed or hand formed control joints, Widening and milling of random or uncontroller cracks; Removing old sealing material in all types of joints for resealing maintenance jobs.
Use of the Eveready Router eliminates spalling, saves sealing material, saves time and labor, eliminates excessive ripped widths and eliminates sandblasting.
Perlite Brochure
The lightweight construction uses of perlite concrete for roof decks, floor fills and curtain walls are detailed in a new publication by Perlite Institute, Inc. The 4-page catalog contains specifications, typical details and comprehensive physical property data. Copies are available from Perlite Institute, Inc., 45 West 45th Street, New York, N. Y. 10036.
