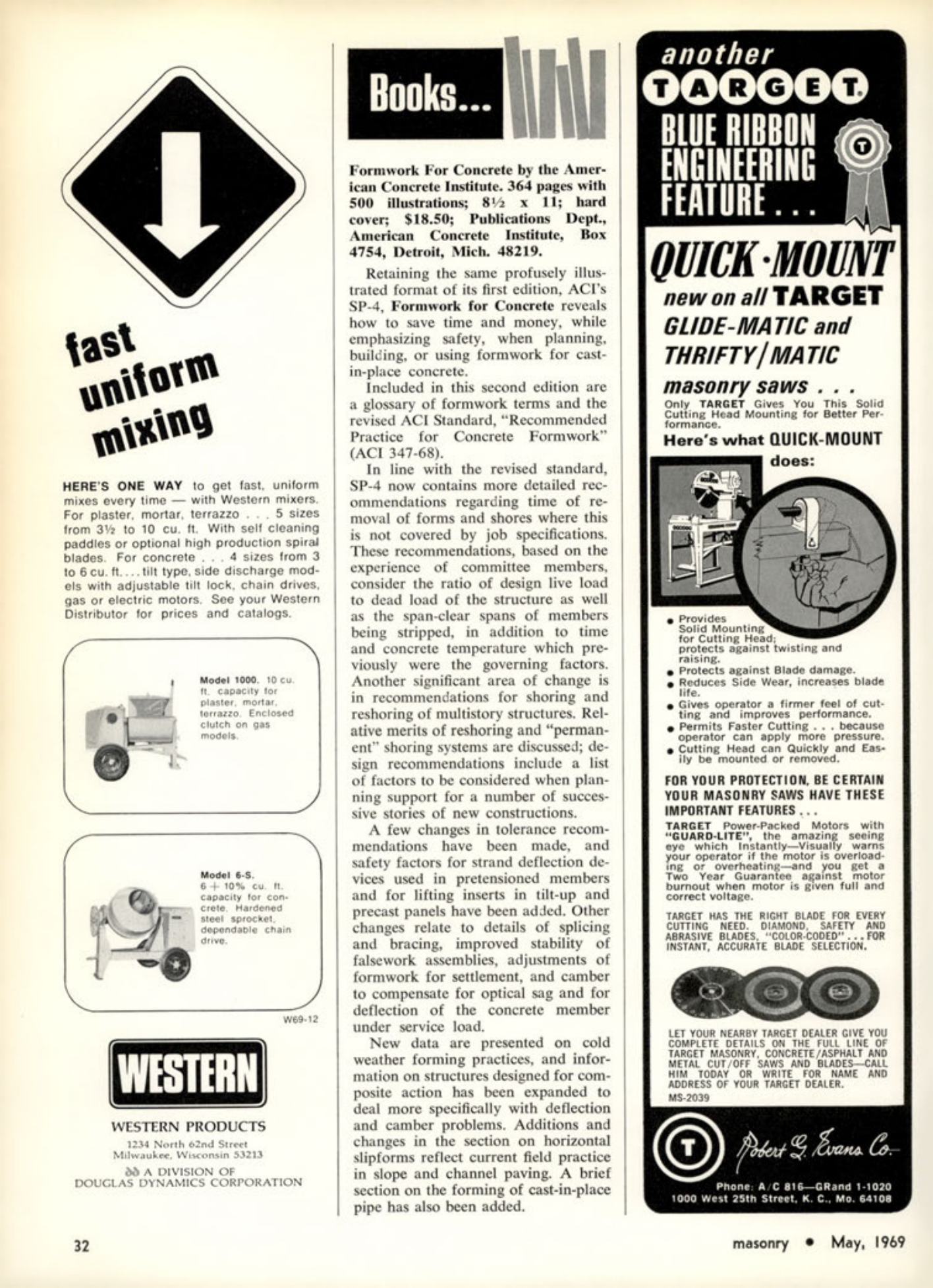

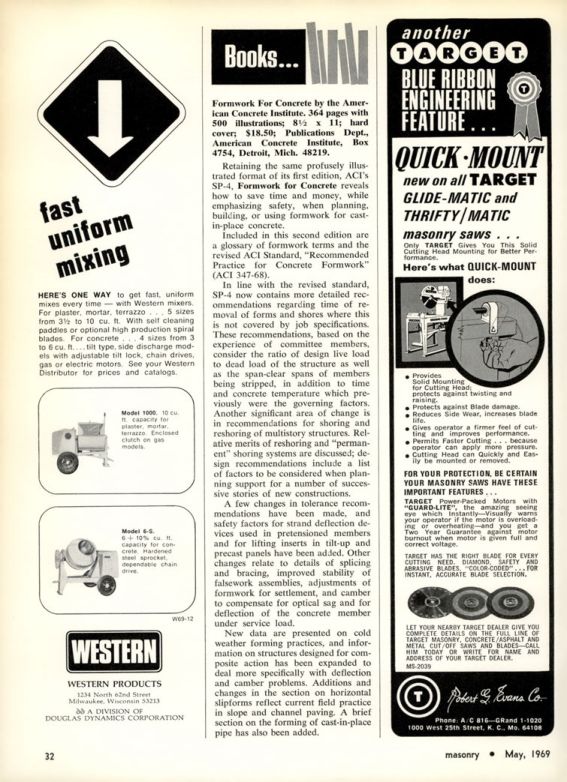

Masonry Magazine May 1969 Page. 32
Fast Uniform Mixing
HERE'S ONE WAY to get fast, uniform mixes every time with Western mixers. For plaster, mortar, terrazzo 5 sizes from 3% to 10 cu. ft. With self cleaning paddles or optional high production spiral blades. For concrete 4 sizes from 3 to 6 cu. ft.... tilt type, side discharge models with adjustable tilt lock, chain drives, gas or electric motors. See your Western Distributor for prices and catalogs.
Model 1000. 10 cu. ft. capacity for plaster, mortar, terrazzo. Enclosed clutch on gas models.
Model 6-5. 6+10% cu.ft. capacity for concrete. Hardened steel sprocket, dependable chain drive.
WESTERN
W69-12
WESTERN PRODUCTS
1234 North 62nd Street
Milwaukee, Wisconsin 53213
A DIVISION OF
DOUGLAS DYNAMICS CORPORATION
Books...
Formwork For Concrete by the American Concrete Institute. 364 pages with 500 illustrations; 8½ x 11; hard cover; $18.50; Publications Dept., American Concrete Institute, Box 4754, Detroit, Mich. 48219.
Retaining the same profusely illustrated format of its first edition, ACI's SP-4, Formwork for Concrete reveals how to save time and money, while emphasizing safety, when planning, building, or using formwork for cast-in-place concrete.
Included in this second edition are a glossary of formwork terms and the revised ACI Standard, "Recommended Practice for Concrete Formwork" (ACI 347-68).
In line with the revised standard, SP-4 now contains more detailed recommendations regarding time of removal of forms and shores where this is not covered by job specifications. These recommendations, based on the experience of committee members, consider the ratio of design live load to dead load of the structure as well as the span-clear spans of members being stripped, in addition to time and concrete temperature which previously were the governing factors.
Another significant area of change is in recommendations for shoring and reshoring of multistory structures. Relative merits of reshoring and "permanent" shoring systems are discussed; design recommendations include a list of factors to be considered when planning support for a number of successive stories of new constructions.
A few changes in tolerance recommendations have been made, and safety factors for strand deflection devices used in pretensioned members and for lifting inserts in tilt-up and precast panels have been added. Other changes relate to details of splicing and bracing, improved stability of falsework assemblies, adjustments of formwork for settlement, and camber to compensate for optical sag and for deflection of the concrete member under service load.
New data are presented on cold weather forming practices, and information on structures designed for composite action has been expanded to deal more specifically with deflection and camber problems. Additions and changes in the section on horizontal slipforms reflect current field practice in slope and channel paving. A brief section on the forming of cast-in-place pipe has also been added.
another
TARGET
BLUE RIBBON
ENGINEERING
FEATURE...
T
QUICK-MOUNT
new on all TARGET
GLIDE-MATIC and
THRIFTY/MATIC
masonry saws
Only TARGET Gives You This Solid Cutting Head Mounting for Better Performance.
Here's what QUICK-MOUNT does:
• Provides Solid Mounting for Cutting Head; protects against twisting and raising.
Protects against Blade damage.
Reduces Side Wear, increases blade life.
Gives operator a firmer feel of cutting and improves performance.
Permits Faster Cutting... because operator can apply more pressure.
Cutting Head can Quickly and Easily be mounted or removed.
FOR YOUR PROTECTION, BE CERTAIN YOUR MASONRY SAWS HAVE THESE IMPORTANT FEATURES
TARGET Power-Packed Motors with "GUARD-LITE", the amazing seeing eye which Instantly-Visually warns your operator if the motor is overloading or overheating and you get a Two Year Guarantee against motor burnout when motor is given full and correct voltage.
TARGET HAS THE RIGHT BLADE FOR EVERY CUTTING NEED, DIAMOND, SAFETY AND ABRASIVE BLADES, COLOR-CODED"... FOR INSTANT, ACCURATE BLADE SELECTION.
LET YOUR NEARBY TARGET DEALER GIVE YOU COMPLETE DETAILS ON THE FULL LINE OF TARGET MASONRY, CONCRETE/ASPHALT AND METAL CUT/OFF SAWS AND BLADES CALL HIM TODAY OR WRITE FOR NAME AND ADDRESS OF YOUR TARGET DEALER
MS-2039
Robert S. Evans Co
Phone: A/C 816-GRand 1-1020
1000 West 25th Street, K. C., Mo. 64108
32
masonry
May, 1969
