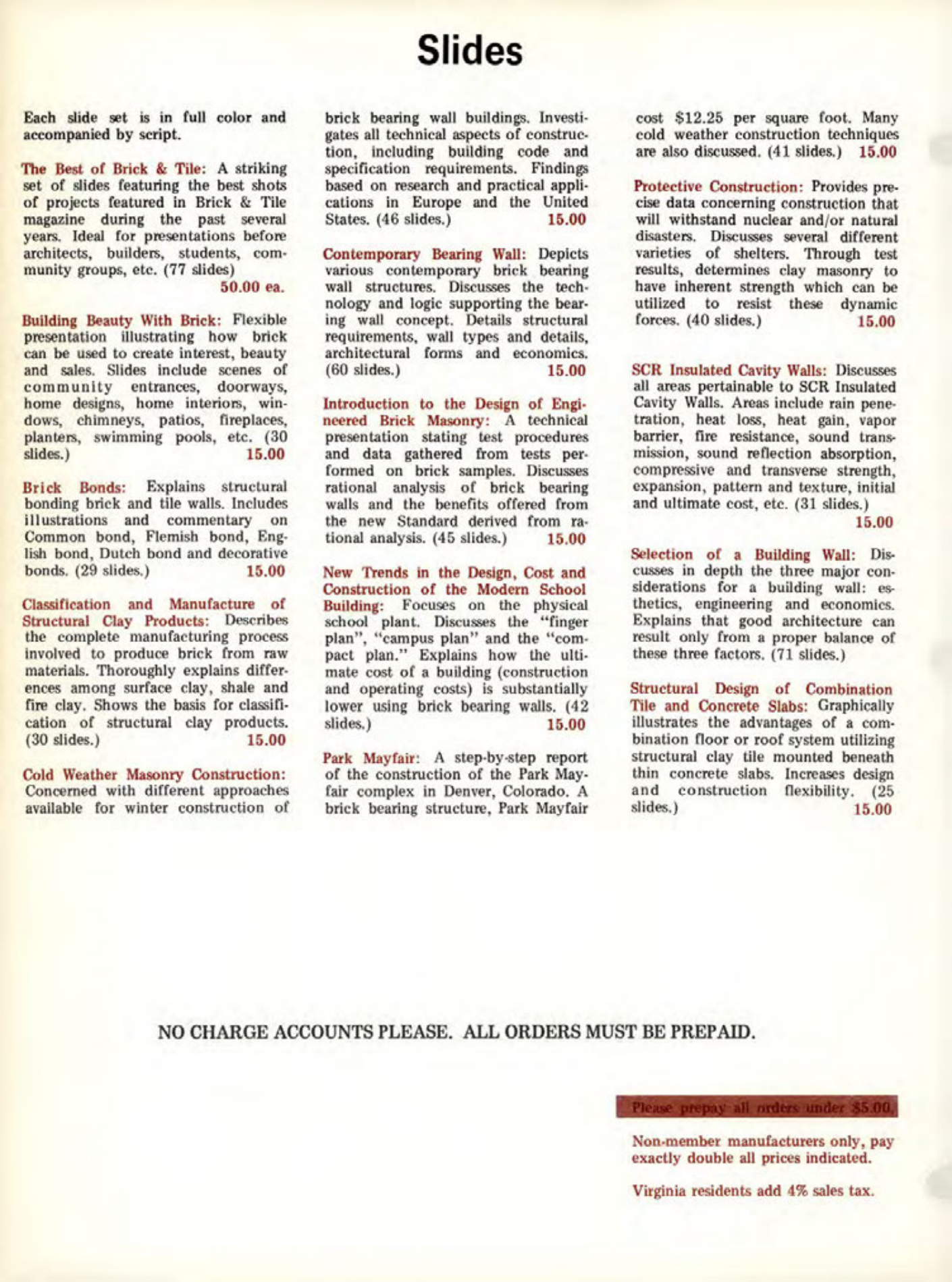

Slides
Each slide set is in full color and accompanied by script.
# The Best of Brick & Tile
A striking set of slides featuring the best shots of projects featured in Brick & Tile magazine during the past several years. Ideal for presentations before architects, builders, students, community groups, etc. (77 slides) 50.00 ea.
# Building Beauty With Brick
Flexible presentation illustrating how brick can be used to create interest, beauty and sales. Slides include scenes of community entrances, doorways, home designs, home interiors, windows, chimneys, patios, fireplaces, planters, swimming pools, etc. (30 slides.) 15.00
# Brick Bonds
Explains structural bonding brick and tile walls. Includes illustrations and commentary on Common bond, Flemish bond, English bond, Dutch bond and decorative bonds. (29 slides.) 15.00
# Classification and Manufacture of Structural Clay Products
Describes the complete manufacturing process involved to produce brick from raw materials. Thoroughly explains differences among surface clay, shale and fire clay. Shows the basis for classification of structural clay products. (30 slides.) 15.00
# Cold Weather Masonry Construction
Concerned with different approaches available for winter construction of brick bearing wall buildings. Investigates all technical aspects of construction, including building code and specification requirements. Findings based on research and practical applications in Europe and the United States. (46 slides.) 15.00
# Contemporary Bearing Wall
Depicts various contemporary brick bearing wall structures. Discusses the technology and logic supporting the bearing wall concept. Details structural requirements, wall types and details, architectural forms and economics. (60 slides.) 15.00
# Introduction to the Design of Engineered Brick Masonry
A technical presentation stating test procedures and data gathered from tests performed on brick samples. Discusses rational analysis of brick bearing walls and the benefits offered from the new Standard derived from rational analysis. (45 slides.) 15.00
# New Trends in the Design, Cost and Construction of the Modern School Building
Focuses on the physical school plant. Discusses the "finger plan", "campus plan" and the "compact plan." Explains how the ultimate cost of a building (construction and operating costs) is substantially lower using brick bearing walls. (42 slides.) 15.00
# Park Mayfair
A step-by-step report of the construction of the Park Mayfair complex in Denver, Colorado. A brick bearing structure, Park Mayfair cost $12.25 per square foot. Many cold weather construction techniques are also discussed. (41 slides.) 15.00
# Protective Construction
Provides precise data concerning construction that will withstand nuclear and/or natural disasters. Discusses several different varieties of shelters. Through test results, determines clay masonry to have inherent strength which can be utilized to resist these dynamic forces. (40 slides.) 15.00
# SCR Insulated Cavity Walls
Discusses all areas pertainable to SCR Insulated Cavity Walls. Areas include rain penetration, heat loss, heat gain, vapor barrier, fire resistance, sound transmission, sound reflection absorption, compressive and transverse strength, expansion, pattern and texture, initial and ultimate cost, etc. (31 slides.) 15.00
# Selection of a Building Wall
Discusses in depth the three major considerations for a building wall: esthetics, engineering and economics. Explains that good architecture can result only from a proper balance of these three factors. (71 slides.)
# Structural Design of Combination Tile and Concrete Slabs
Graphically illustrates the advantages of a combination floor or roof system utilizing structural clay tile mounted beneath thin concrete slabs. Increases design and construction flexibility. (25 slides.) 15.00
NO CHARGE ACCOUNTS PLEASE. ALL ORDERS MUST BE PREPAID.
Please prepay all orders under $5.00, Non-member manufacturers only, pay exactly double all prices indicated. Virginia residents add 4% sales tax.
