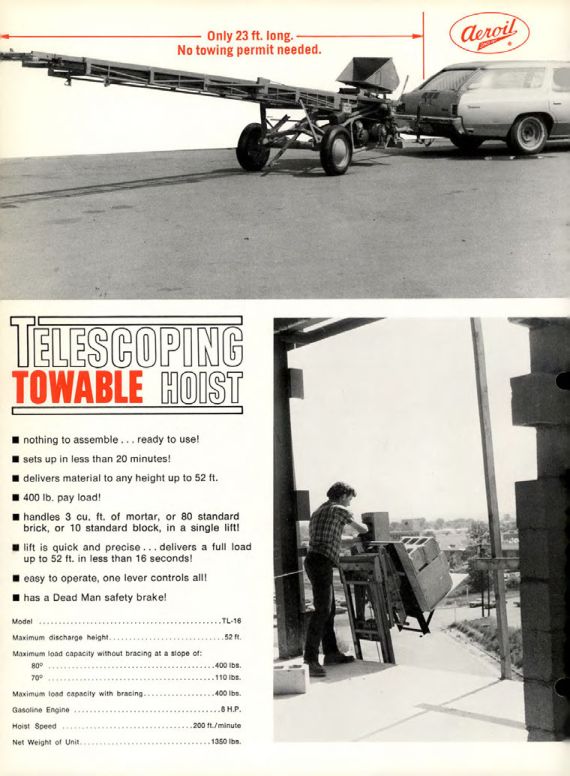

Masonry Magazine January 1975 Page. 24
Only 23 ft. long. No towing permit needed.
TELESCOPING TOWABLE HOIST
nothing to assemble... ready to use!
sets up in less than 20 minutes!
delivers material to any height up to 52 ft.
400 lb. pay load!
handles 3 cu. ft. of mortar, or 80 standard brick, or 10 standard block, in a single lift!
lift is quick and precise... delivers a full load up to 52 ft. in less than 16 seconds!
easy to operate, one lever controls all!
has a Dead Man safety brake!
Model TL-16
Maximum discharge height. 52 ft.
Maximum load capacity without bracing at a slope of: 80° 400 lbs. 70° 110 lbs.
Maximum load capacity with bracing. 400 lbs.
Gasoline Engine ..6 H.P.
Hoist Speed 200 ft/minute
Net Weight of Unit.. 1350 lbs.
