MINERAL WOOL OR BOARD INSULATION
WOOD STUDS
GYPSUM BOARD
GYPSUM BOARD
FURRING OR
POLYSTYRENE BOARD
INSULATION OR
POLYURETHANE BOARD
INSULATION
000000
WEEP HOLES 24' O.C.
3 OR 4" BRICK VENEER
SHEATHING

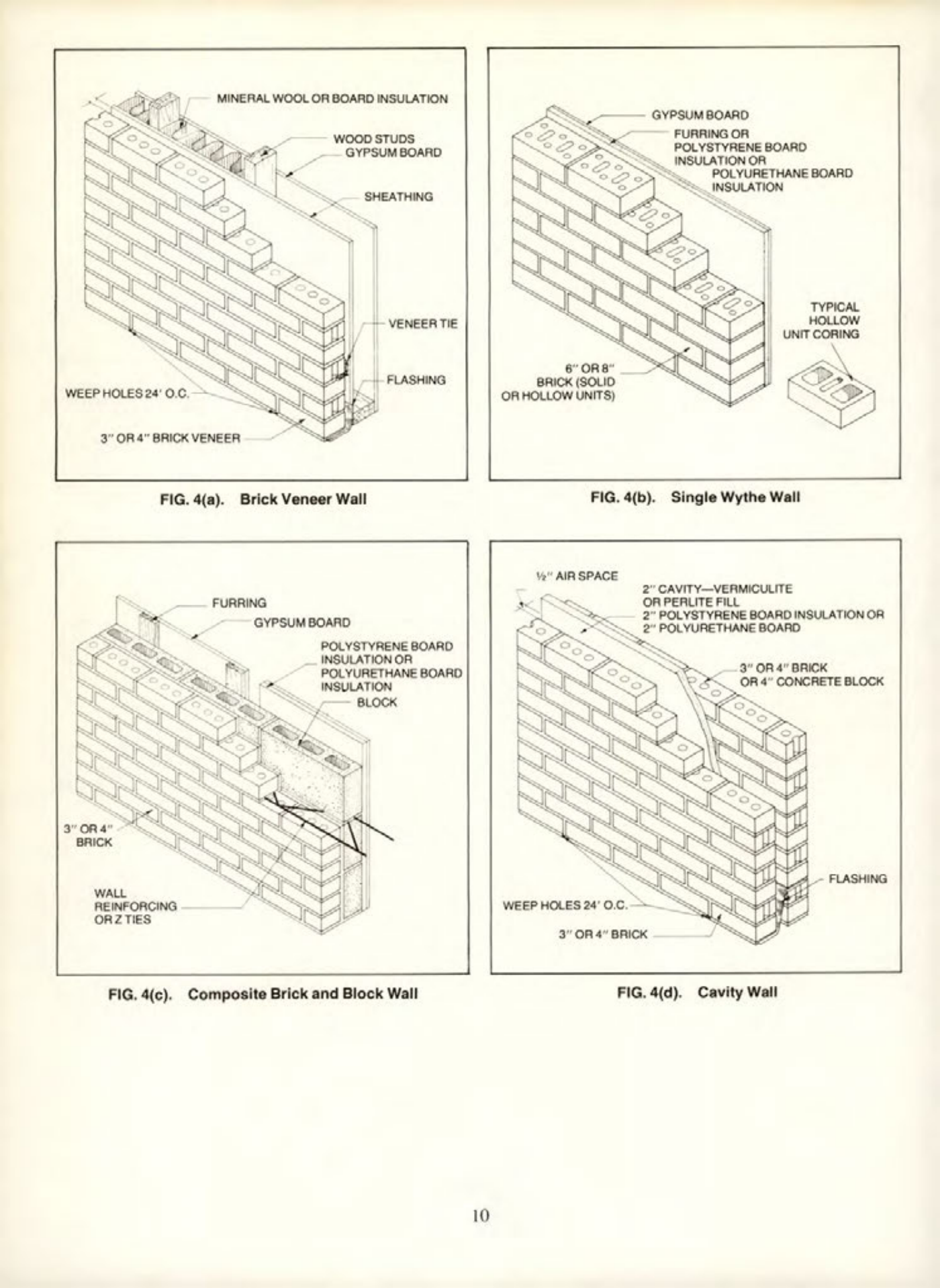

FIG. 4(a). Brick Veneer Wall
VENEER TIE
6 OR 8
FLASHING
BRICK (SOLID
OR HOLLOW UNITS)
FURRING
GYPSUM BOARD
POLYSTYRENE BOARD
INSULATION OR
POLYURETHANE BOARD
INSULATION
BLOCK
000000000
3 OR 4"
BRICK
WALL
REINFORCING
ORZTIES
FIG. 4(c). Composite Brick and Block Wall
TYPICAL
HOLLOW
UNIT CORING
FIG. 4(b). Single Wythe Wall
W" AIR SPACE
2 CAVITY-VERMICULITE
OR PERLITE FILL
2 POLYSTYRENE BOARD INSULATION OR
2 POLYURETHANE BOARD
3 OR 4" BRICK
OR 4 CONCRETE BLOCK
0000000
WEEP HOLES 24' O.C.
3" OR 4" BRICK
10
0000
FIG. 4(d). Cavity Wall
FLASHING
