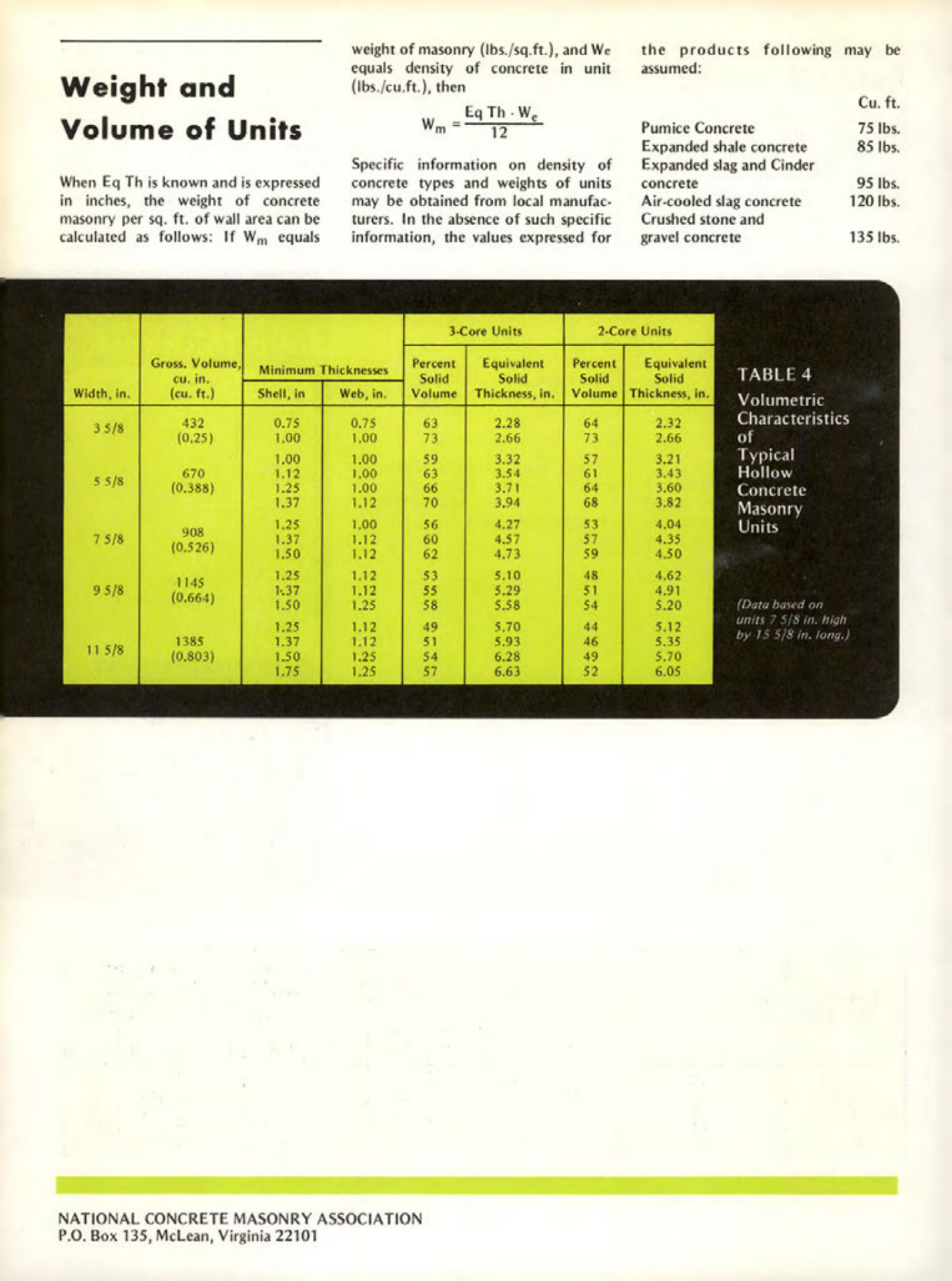

Masonry Magazine February 1976 Page. 14
Weight and Volume of Units
When Eq Th is known and is expressed in inches, the weight of concrete masonry per sq. ft. of wall area can be calculated as follows: If Wm equals weight of masonry (lbs./sq.ft.), and We equals density of concrete in unit (lbs./cu.ft.), then
Wm = Eq Th-We / 12
Specific information on density of concrete types and weights of units may be obtained from local manufacturers. In the absence of such specific information, the values expressed for the products following may be assumed:
Pumice Concrete Cu. ft. 75 lbs.
Expanded shale concrete 85 lbs.
Expanded slag and Cinder concrete 95 lbs.
Air-cooled slag concrete 120 lbs.
Crushed stone and gravel concrete 135 lbs.
3-Core Units 2-Core Units
TABLE 4
Volumetric Characteristics of Typical Hollow Concrete Masonry Units
| Width, in. | Gross Volume, cu. in. (cu. ft.) | Minimum Thicknesses Shell, in | Web, in. | Percent Solid | Equivalent Solid Volume Thickness, in. | Percent Solid | Equivalent Solid Volume Thickness, in. |
|---|---|---|---|---|---|---|---|
| 35/8 | 432 (0.25) | 0.75 | 0.75 | 63 | 2.28 | 64 | 2.32 |
| | | 1.00 | 1.00 | 73 | 2.66 | 73 | 2.66 |
| 55/8 | 670 (0.388) | 1.00 | 1.00 | 59 | 3.32 | 57 | 3.21 |
| | | 1.12 | 1.00 | 63 | 3.54 | 61 | 3.43 |
| | | 1.25 | 1.00 | 66 | 3.71 | 64 | 3.60 |
| | | 1.37 | 1.12 | 70 | 3.94 | 68 | 3.82 |
| 75/8 | 908 (0.526) | 1.25 | 1.00 | 56 | 4.27 | 53 | 4.04 |
| | | 1.37 | 1.12 | 60 | 4.57 | 57 | 4.35 |
| | | 1.50 | 1.12 | 62 | 4.73 | 59 | 4.50 |
| 95/8 | 1145 (0.664) | 1.25 | 1.12 | 53 | 5.10 | 48 | 4.62 |
| | | 1.37 | 1.12 | 55 | 5.29 | 51 | 4.91 |
| | | 1.50 | 1.25 | 58 | 5.58 | 54 | 5.20 |
| 11 5/8 | 1385 (0.803) | 1.25 | 1.12 | 49 | 5,70 | 44 | 5,12 |
| | | 1.37 | 1.12 | 51 | 5.93 | 46 | 5.35 |
| | | 1.50 | 1.25 | 54 | 6.28 | 49 | 5.70 |
| | | 1.75 | 1.25 | 57 | 6.63 | 52 | 6.05 |
(Data based on units 7 5/8 in. high by 15 5/8 in. long.)
NATIONAL CONCRETE MASONRY ASSOCIATION
P.O. Box 135, McLean, Virginia 22101
