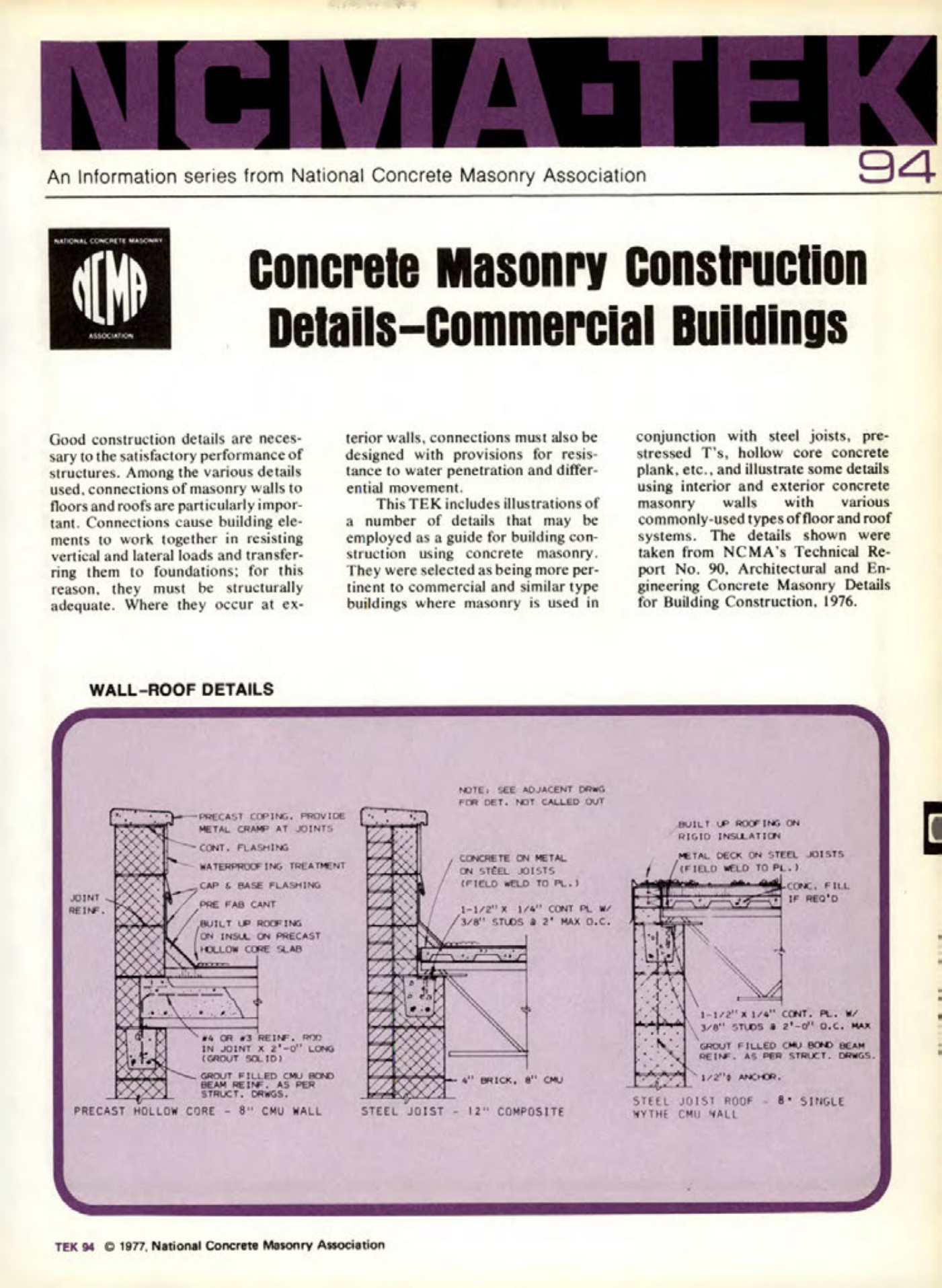

Masonry Magazine April 1978 Page. 13
NCMA-TEK
An Information series from National Concrete Masonry Association
Concrete Masonry Construction Details-Commercial Buildings
94
Good construction details are necessary to the satisfactory performance of structures. Among the various details used, connections of masonry walls to floors and roofs are particularly important. Connections cause building elements to work together in resisting vertical and lateral loads and transferring them to foundations; for this reason, they must be structurally adequate. Where they occur at exterior walls, connections must also be designed with provisions for resistance to water penetration and differential movement.
This TEK includes illustrations of a number of details that may be employed as a guide for building construction using concrete masonry. They were selected as being more pertinent to commercial and similar type buildings where masonry is used in conjunction with steel joists, prestressed T's, hollow core concrete plank, etc., and illustrate some details using interior and exterior concrete masonry walls with various commonly-used types of floor and roof systems. The details shown were taken from NCMA's Technical Report No. 90, Architectural and Engineering Concrete Masonry Details for Building Construction, 1976.
WALL-ROOF DETAILS
JOINT
REINF
PRECAST COPING, PROVIDE
METAL CRAMP AT JOINTS
CONT. FLASHING
WATERPROOF ING TREATMENT
CAP & BASE FLASHING
PRE FAB CANT
BUILT UP ROOFING
ON INSUL ON PRECAST
HOLLOW CORE SLAB
NOTE: SEE ADJACENT DRWG
FOR DET. NOT CALLED OUT
CONCRETE ON METAL
ON STEEL JOISTS
(FIELD WELD TO PL.)
1-1/2 1/4" CONT PLW
3/8" STUDS à 2 MAX D.C.
BUILT UP ROOFING ON
RIGIO INSULATION
METAL DECK ON STEEL JOISTS
(FIELD WELD TO PL.)
CONC FILL
IF REG'D
OR #3 REINFO
IN JOINT X 2-0 LONG
(GROUT SOL 101
GROUT FILLED CMU BOND
BEAM REINE AS PER
STRUCT. DRWGS.
PRECAST HOLLOW CORE
8 CMU WALL
4 BRICK, CMU
STEEL JOIST
12" COMPOSITE
1-1/2" x 1/4" CONT. PL. W
3/8" STUDS & 2-0 O.C. MAX
GROUT FILLED CHU BOND BEAM
REINF. AS PER STRUCT. DWGS.
1/2 ANCHOR.
STEEL JOIST ROOF 8 SINGLE
MYTHE CMU MALL
TEK 94 © 1977, National Concrete Masonry Association
