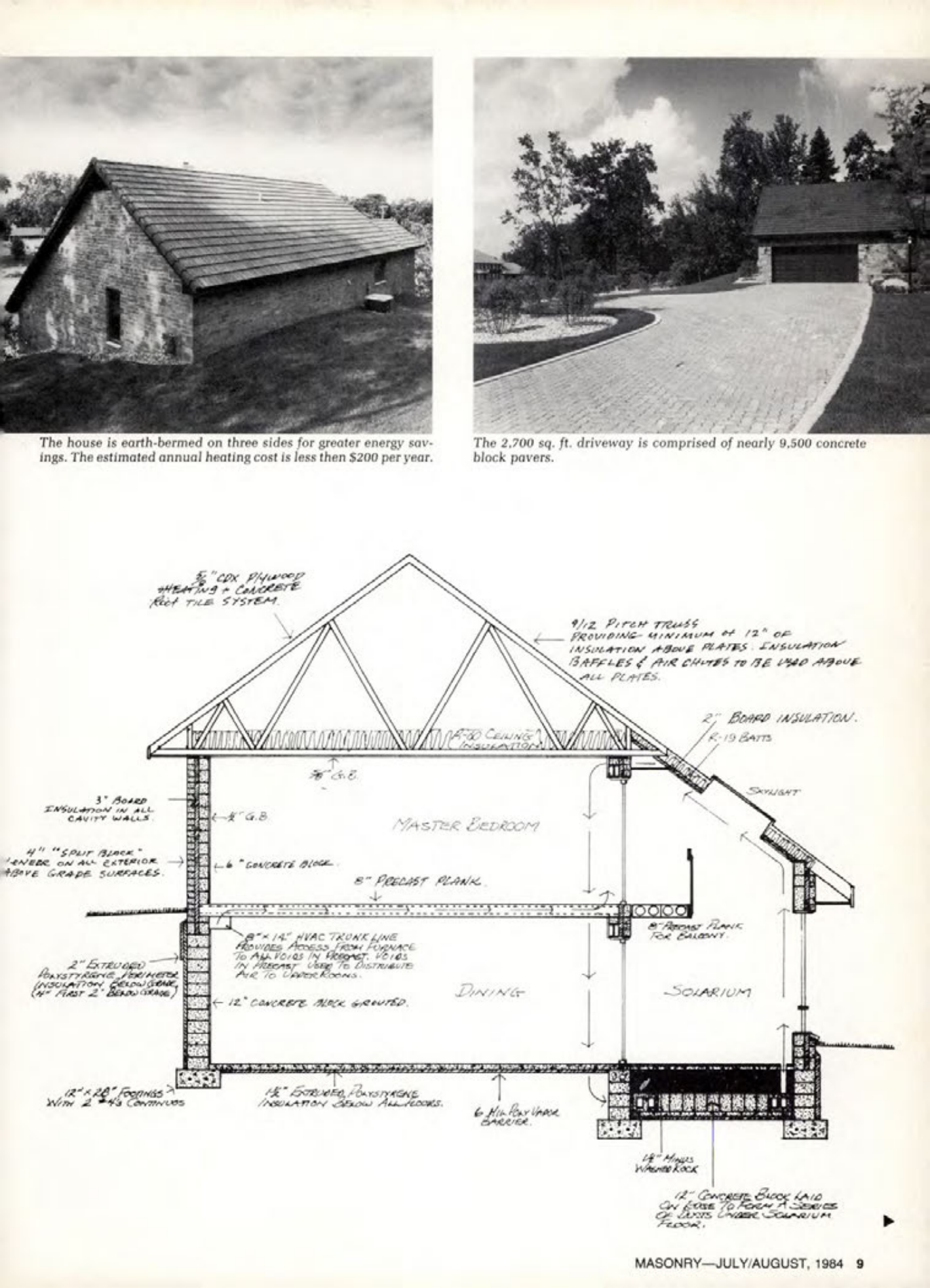

The house is earth-bermed on three sides for greater energy savings. The estimated annual heating cost is less than $200 per year. The 2,700 sq. ft. driveway is comprised of nearly 9,500 concrete block pavers.
HEATING CONCRETE TILE SYSTEM
INSULATION CAVITY WALL
SPLIT BLACK EXTERIOR ABOVE GRADE SURFACES
MASTER BEDROOM
8 PRECAST PLANK
4 HVAC TRUNK LINE 12 CONCRETE BLOCK GROUTED
HE EXTRUDER PASTAGNE
9/12 PITCH TRUSS PROVIDING MINIMUM OF 12 OF INSULATION ABOVE PLATES INSULATION BAFFLES & AIR CHUTES TO BE USED ABOVE ALL PLATES
2 BOARD INSULATION. R-19 BATTS
STRANK CALAWAY
SANUARY
DINING
SOLARIUM
Hin fear Unce BARDIER
12 CONCRETE BLOCK FLOOR
