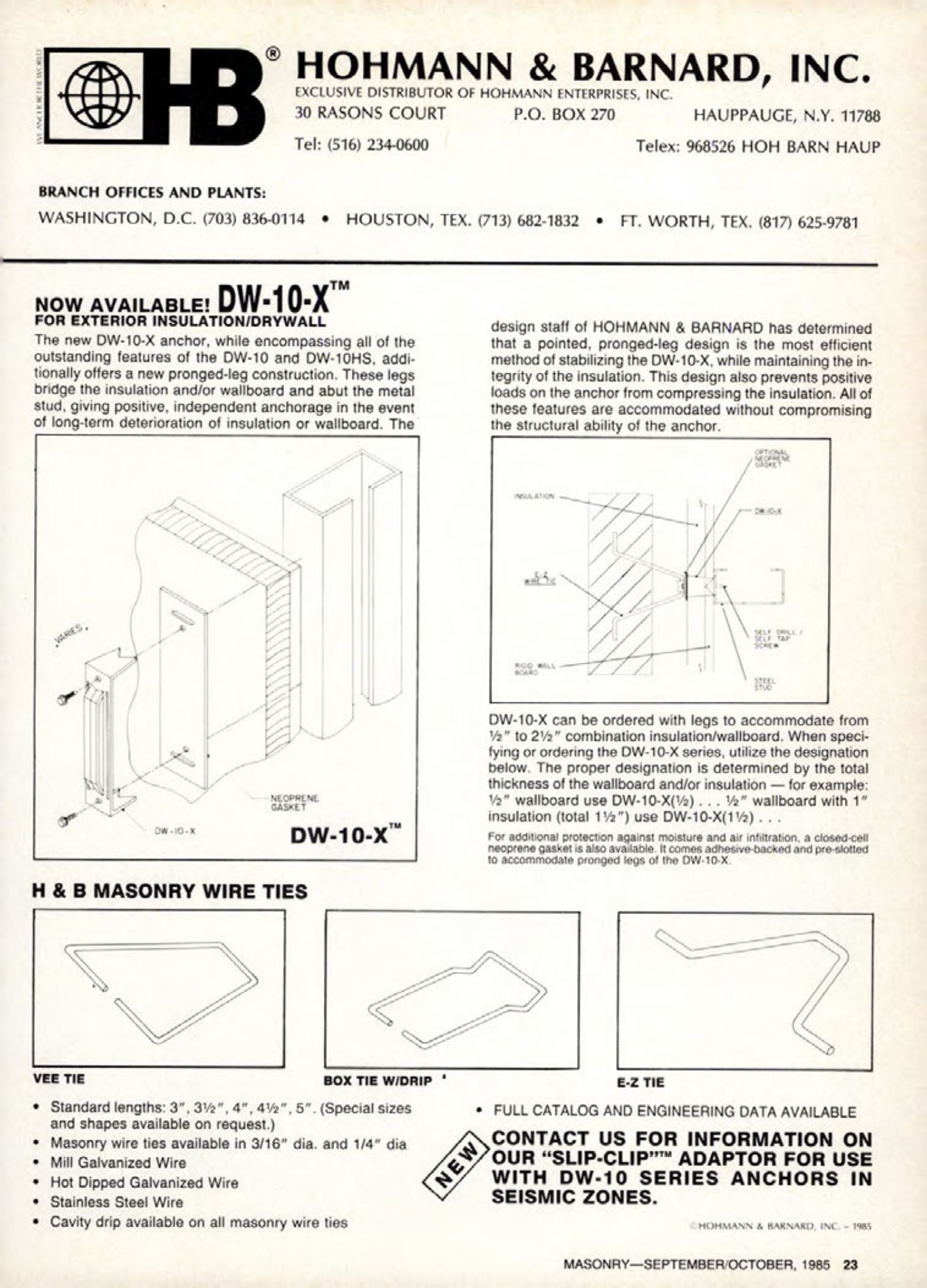

Masonry Magazine October 1985 Page. 27
HOHMANN & BARNARD, INC.
EXCLUSIVE DISTRIBUTOR OF HOHMANN ENTERPRISES, INC.
30 RASONS COURT P.O. BOX 270 HAUPPAUGE, N.Y. 11788
Tel: (516) 234-0600 Telex: 968526 HOH BARN HAUP
BRANCH OFFICES AND PLANTS:
WASHINGTON, D.C. (703) 836-0114. HOUSTON, TEΧ. (713) 682-1832. FT. WORTH, ΤΕΧ. (817) 625-9781
NOW AVAILABLE! DW-10-X™
FOR EXTERIOR INSULATION/DRYWALL
The new DW-10-X anchor, while encompassing all of the outstanding features of the DW-10 and DW-10HS, additionally offers a new pronged-leg construction. These legs bridge the insulation and/or wallboard and abut the metal stud, giving positive, independent anchorage in the event of long-term deterioration of insulation or wallboard. The design staff of HOHMANN & BARNARD has determined that a pointed, pronged-leg design is the most efficient method of stabilizing the DW-10-X, while maintaining the integrity of the insulation. This design also prevents positive loads on the anchor from compressing the insulation. All of these features are accommodated without compromising the structural ability of the anchor.
H & B MASONRY WIRE TIES
DW-10-X can be ordered with legs to accommodate from 1/2" to 21/2" combination insulation/wallboard. When specifying or ordering the DW-10-X series, utilize the designation below. The proper designation is determined by the total thickness of the wallboard and/or insulation for example: 1½" wallboard use DW-10-X(1/2)... 1½" wallboard with 1" insulation (total 1½") use DW-10-X(12). For additional protection against moisture and air infitration, a closed-cell neoprene gasket is also available. It comes adhesive-backed and pre-slotted to accommodate pronged legs of the DW-10-X.
VEE TIE
BOX TIE W/DRIP
E-Z TIE
• FULL CATALOG AND ENGINEERING DATA AVAILABLE
• Standard lengths: 3", 3½", 4", 4½", 5". (Special sizes and shapes available on request.)
• Masonry wire ties available in 3/16" dia. and 1/4" dia.
• Mill Galvanized Wire
• Hot Dipped Galvanized Wire
• Stainless Steel Wire
• Cavity drip available on all masonry wire ties
CONTACT US FOR INFORMATION ON
OUR "SLIP-CLIPTH ADAPTOR FOR USE
WITH DW-10 SERIES ANCHORS IN
SEISMIC ZONES.
CHOHMANN & BARNARD, INC.-1985
