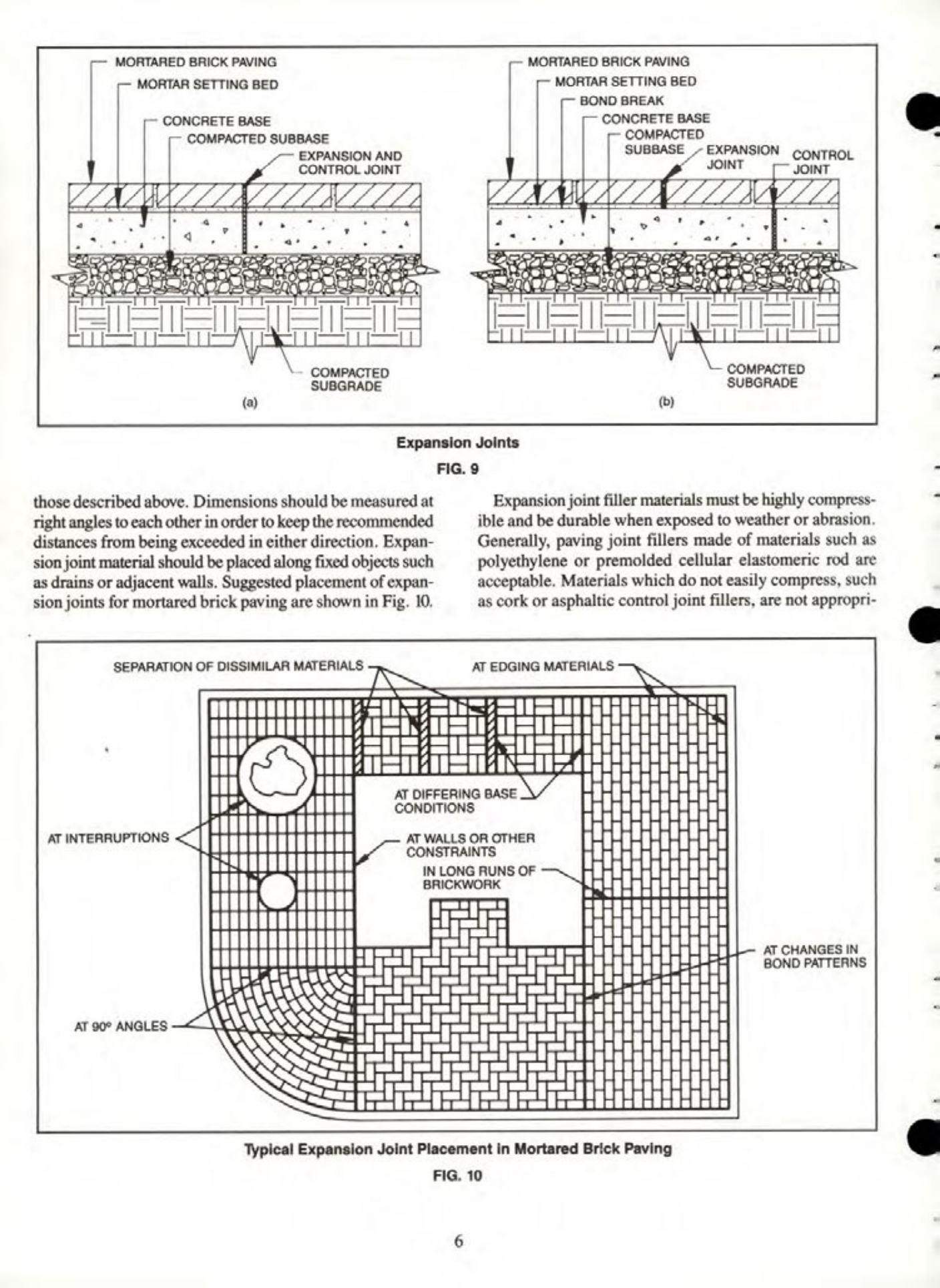

Masonry Magazine December 1992 Page. 28
MORTARED BRICK PAVING
MORTAR SETTING BED
CONCRETE BASE
COMPACTED SUBBASE
EXPANSION AND
CONTROL JOINT
(a)
COMPACTED
SUBGRADE
MORTARED BRICK PAVING
MORTAR SETTING BED
BOND BREAK
CONCRETE BASE
COMPACTED
SUBBASE
EXPANSION CONTROL
JOINT
JOINT
(b)
COMPACTED
SUBGRADE
Expansion Joints
FIG. 9
those described above. Dimensions should be measured at right angles to each other in order to keep the recommended distances from being exceeded in either direction. Expansion joint material should be placed along fixed objects such as drains or adjacent walls. Suggested placement of expansion joints for mortared brick paving are shown in Fig. 10.
Expansion joint filler materials must be highly compressible and be durable when exposed to weather or abrasion. Generally, paving joint fillers made of materials such as polyethylene or premolded cellular elastomeric rod are acceptable. Materials which do not easily compress, such as cork or asphaltic control joint fillers, are not appropri-
SEPARATION OF DISSIMILAR MATERIALS
AT EDGING MATERIALS
AT INTERRUPTIONS
AT DIFFERING BASE
CONDITIONS
AT WALLS OR OTHER
CONSTRAINTS
IN LONG RUNS OF
BRICKWORK
AT 90° ANGLES
Typical Expansion Joint Placement in Mortared Brick Paving
FIG. 10
AT CHANGES IN
BOND PATTERNS
