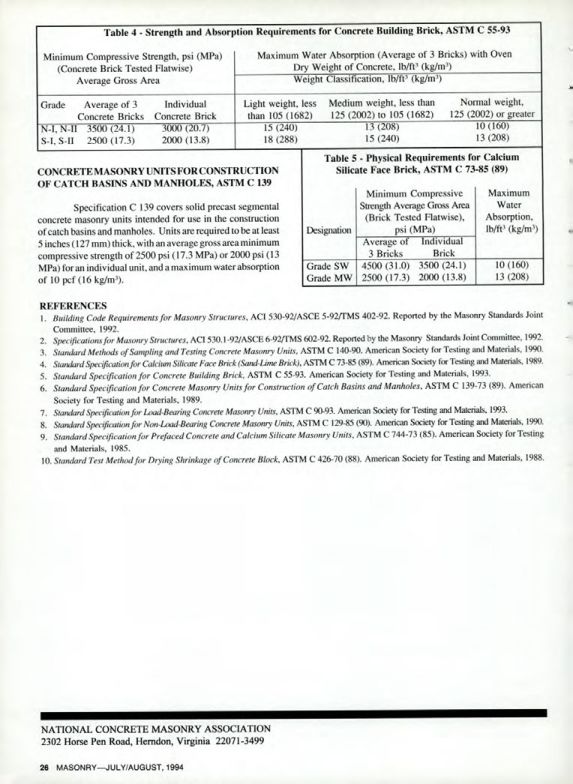

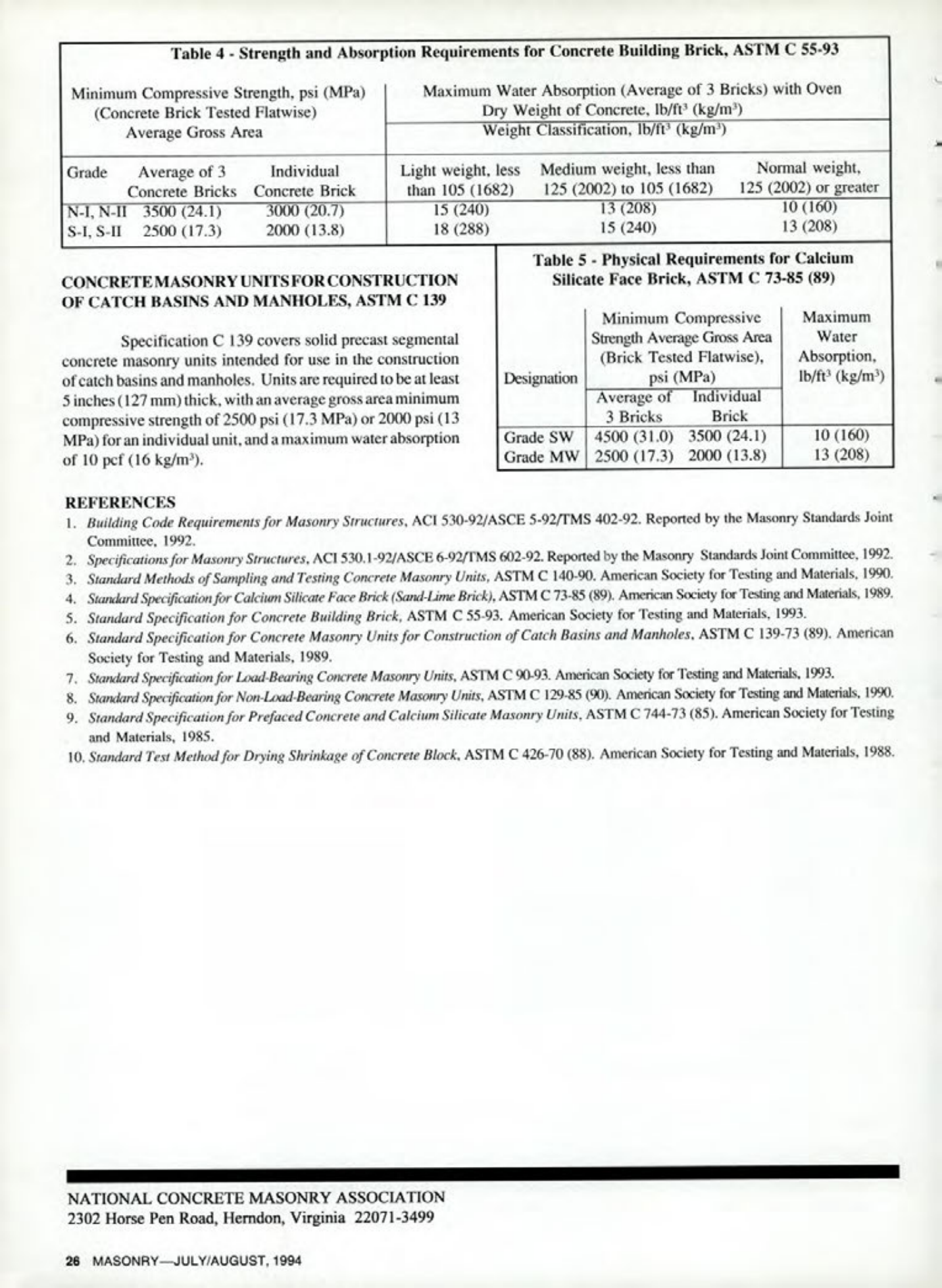

Masonry Magazine August 1994 Page. 26
Table 4 - Strength and Absorption Requirements for Concrete Building Brick, ASTM C 55-93
Minimum Compressive Strength, psi (MPa) (Concrete Brick Tested Flatwise)
Average Gross Area
Maximum Water Absorption (Average of 3 Bricks) with Oven Dry Weight of Concrete, lb/ft³ (kg/m³)
Weight Classification, lb/ft³ (kg/m³)
Grade
Average of 3 Concrete Bricks
Individual Concrete Brick
Light weight, less than 105 (1682)
Medium weight, less than 125 (2002) to 105 (1682)
Normal weight, 125 (2002) or greater
N-I, N-II 3500 (24.1)
3000 (20.7)
15 (240)
13 (208)
10 (160)
S-I, S-II 2500 (17.3)
2000 (13.8)
18 (288)
15 (240)
13 (208)
CONCRETE MASONRY UNITS FOR CONSTRUCTION OF CATCH BASINS AND MANHOLES, ASTM C 139
Specification C 139 covers solid precast segmental concrete masonry units intended for use in the construction of catch basins and manholes. Units are required to be at least 5 inches (127 mm) thick, with an average gross area minimum compressive strength of 2500 psi (17.3 MPa) or 2000 psi (13 MPa) for an individual unit, and a maximum water absorption of 10 pcf (16 kg/m³).
REFERENCES
Table 5- Physical Requirements for Calcium Silicate Face Brick, ASTM C 73-85 (89)
Minimum Compressive Strength Average Gross Area (Brick Tested Flatwise),
Maximum Water Absorption,
Designation
psi (MPa)
lb/ft³ (kg/m³)
Average of 3 Bricks
Individual Brick
Grade SW
4500 (31.0) 3500 (24.1)
10 (160)
Grade MW
2500 (17.3) 2000 (13.8)
13 (208)
1. Building Code Requirements for Masonry Structures, ACI 530-92/ASCE 5-92/TMS 402-92. Reported by the Masonry Standards Joint Committee, 1992.
2. Specifications for Masonry Structures, ACI 530.1-92/ASCE 6-92/TMS 602-92. Reported by the Masonry Standards Joint Committee, 1992.
3. Standard Methods of Sampling and Testing Concrete Masonry Units, ASTM C 140-90. American Society for Testing and Materials, 1990.
4. Standard Specification for Calcium Silicate Face Brick (Sand-Lime Brick), ASTM C 73-85 (89). American Society for Testing and Materials, 1989.
5. Standard Specification for Concrete Building Brick, ASTM C 55-93. American Society for Testing and Materials, 1993.
6. Standard Specification for Concrete Masonry Units for Construction of Catch Basins and Manholes, ASTM C 139-73 (89). American Society for Testing and Materials, 1989.
7. Standard Specification for Load-Bearing Concrete Masonry Units, ASTM C 90-93. American Society for Testing and Materials, 1993.
8. Standard Specification for Non-Load-Bearing Concrete Masonry Units, ASTM C 129-85 (90). American Society for Testing and Materials, 1990.
9. Standard Specification for Prefaced Concrete and Calcium Silicate Masonry Units, ASTM C 744-73 (85). American Society for Testing and Materials, 1985.
10. Standard Test Method for Drying Shrinkage of Concrete Block, ASTM C 426-70 (88). American Society for Testing and Materials, 1988.
