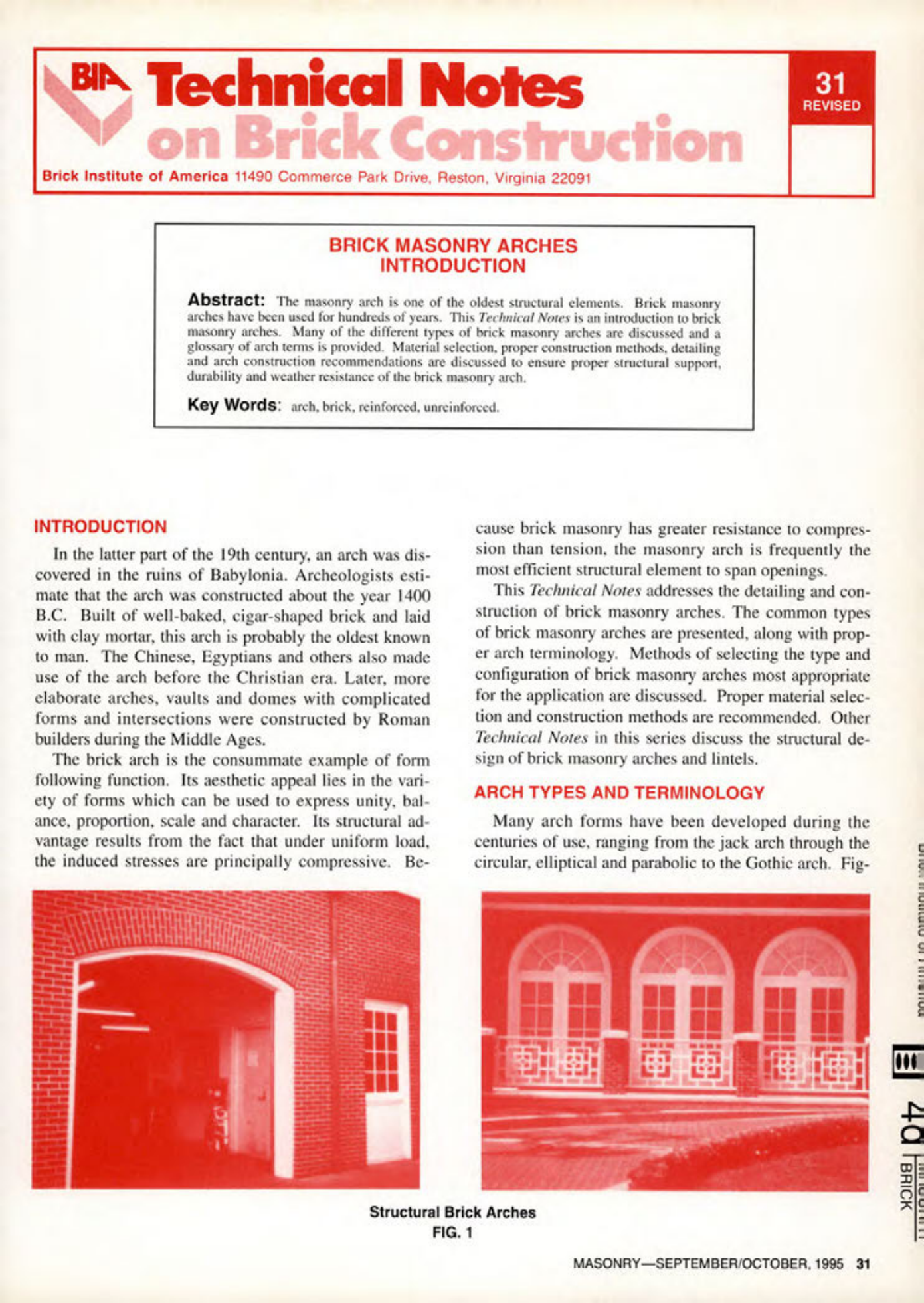

Masonry Magazine October 1995 Page. 31
BIA Technical Notes
on Brick Construction
Brick Institute of America 11490 Commerce Park Drive, Reston, Virginia 22091
BRICK MASONRY ARCHES
INTRODUCTION
Abstract: The masonry arch is one of the oldest structural elements. Brick masonry arches have been used for hundreds of years. This Technical Notes is an introduction to brick masonry arches. Many of the different types of brick masonry arches are discussed and a glossary of arch terms is provided. Material selection, proper construction methods, detailing and arch construction recommendations are discussed to ensure proper structural support, durability and weather resistance of the brick masonry arch.
Key Words: arch, brick, reinforced, unreinforced.
31
REVISED
INTRODUCTION
In the latter part of the 19th century, an arch was discovered in the ruins of Babylonia. Archeologists estimate that the arch was constructed about the year 1400 B.C. Built of well-baked, cigar-shaped brick and laid with clay mortar, this arch is probably the oldest known to man. The Chinese, Egyptians and others also made use of the arch before the Christian era. Later, more elaborate arches, vaults and domes with complicated forms and intersections were constructed by Roman builders during the Middle Ages.
The brick arch is the consummate example of form following function. Its aesthetic appeal lies in the variety of forms which can be used to express unity, balance, proportion, scale and character. Its structural advantage results from the fact that under uniform load, the induced stresses are principally compressive. Because brick masonry has greater resistance to compression than tension, the masonry arch is frequently the most efficient structural element to span openings.
This Technical Notes addresses the detailing and construction of brick masonry arches. The common types of brick masonry arches are presented, along with proper arch terminology. Methods of selecting the type and configuration of brick masonry arches most appropriate for the application are discussed. Proper material selection and construction methods are recommended. Other Technical Notes in this series discuss the structural design of brick masonry arches and lintels.
ARCH TYPES AND TERMINOLOGY
Many arch forms have been developed during the centuries of use, ranging from the jack arch through the circular, elliptical and parabolic to the Gothic arch. Fig-
Structural Brick Arches
FIG. 1
