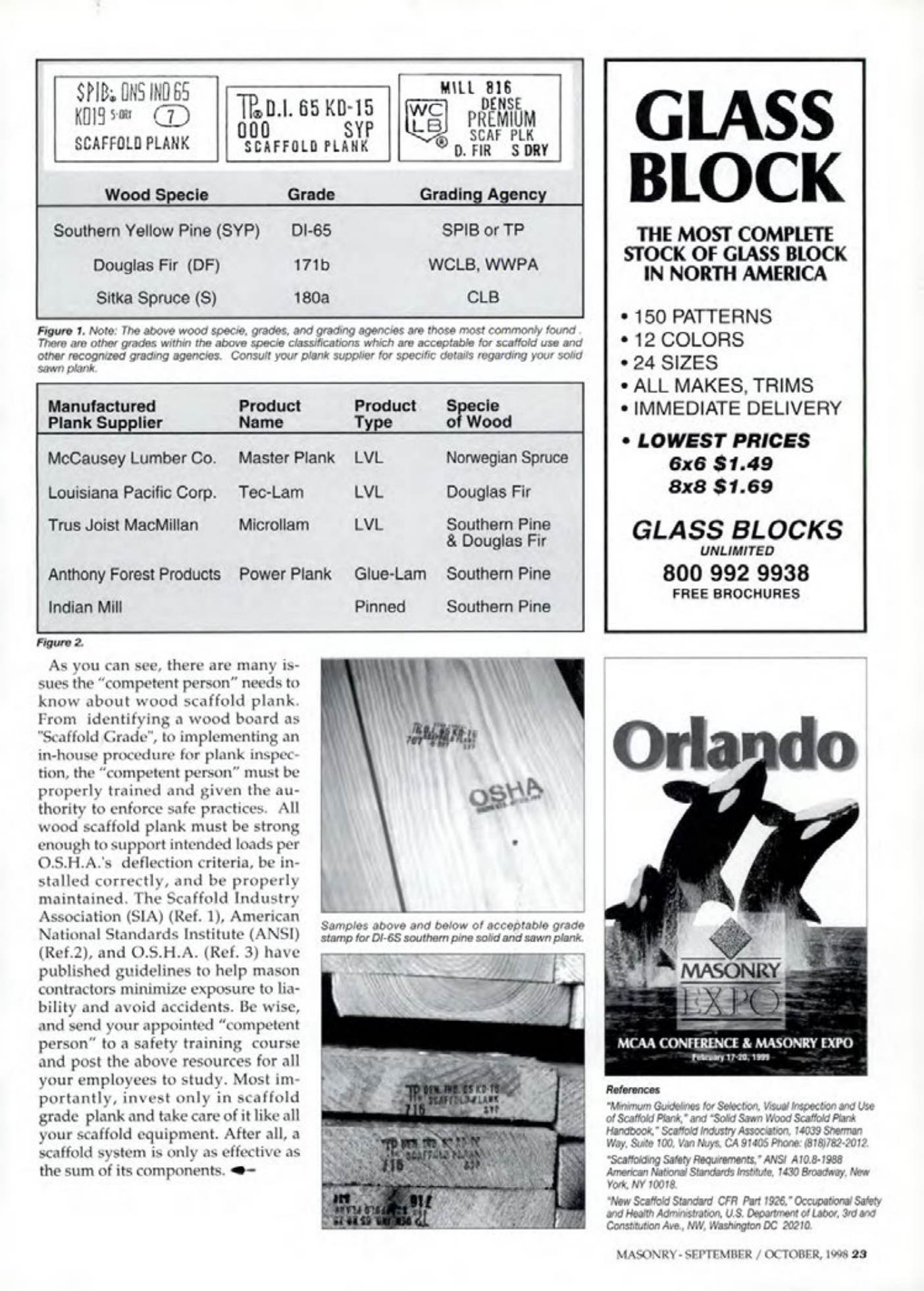

Masonry Magazine October 1998 Page. 23
SPIB: ONS IND 65
K01957
SCAFFOLD PLANK
TPD.I. 65 KD-15
000 SYP
SCAFFOLD PLANK
WC
MILL 816
DENSE
LB PREMIUM
SCAF PLK
D. FIR S DRY
Wood Specie | Grade | Grading Agency
--- | --- | ---
Southern Yellow Pine (SYP) | DI-65 | SPIB or TP
Douglas Fir (DF) | 171b | WCLB, WWPA
Sitka Spruce (S) | 180a | CLB
Figure 1. Note: The above wood specie, grades, and grading agencies are those most commonly found. There are other grades within the above specie classifications which are acceptable for scaffold use and other recognized grading agencies. Consult your plank supplier for specific details regarding your solid sawn plank.
Manufactured
Plank Supplier | Product
Name | Product
Type | Specie
of Wood
--- | --- | --- | ---
McCausey Lumber Co. | Master Plank | LVL | Norwegian Spruce
Louisiana Pacific Corp. | Tec-Lam | LVL | Douglas Fir
Trus Joist MacMillan | Microllam | LVL | Southern Pine
& Douglas Fir
Anthony Forest Products | Power Plank | Glue-Lam | Southern Pine
Indian Mill | | Pinned | Southern Pine
GLASS
BLOCK
THE MOST COMPLETE
STOCK OF GLASS BLOCK
IN NORTH AMERICA
* 150 PATTERNS
* 12 COLORS
* 24 SIZES
* ALL MAKES, TRIMS
* IMMEDIATE DELIVERY
* LOWEST PRICES
6x6 $1.49
8x8 $1.69
GLASS BLOCKS
UNLIMITED
800 992 9938
FREE BROCHURES
Figure 2. As you can see, there are many issues the "competent person" needs to know about wood scaffold plank. From identifying a wood board as "Scaffold Grade", to implementing an in-house procedure for plank inspection, the "competent person" must be properly trained and given the authority to enforce safe practices. All wood scaffold plank must be strong enough to support intended loads per O.S.H.A.'s deflection criteria, be installed correctly, and be properly maintained. The Scaffold Industry Association (SIA) (Ref. 1), American National Standards Institute (ANSI) (Ref.2), and O.S.H.A. (Ref. 3) have published guidelines to help mason contractors minimize exposure to liability and avoid accidents. Be wise, and send your appointed "competent person" to a safety training course and post the above resources for all your employees to study. Most importantly, invest only in scaffold grade plank and take care of it like all your scaffold equipment. After all, a scaffold system is only as effective as the sum of its components.
OSHA
Samples above and below of acceptable grade stamp for DI-65 southern pine solid and sawn plank.
Orlando
MASONRY
EXPO
MCAA CONFERENCE & MASONRY EXPO
February 12-28, 1999
References
"Minimum Guidelines for Selection, Visual Inspection and Use of Scaffold Plank," and "Solid Sawn Wood Scaffold Plank Handbook," Scaffold Industry Association, 14039 Sherman Way Suite 100, Van Nuys, CA 91405 Phone: (818)782-2012
"Scaffolding Safety Requirements," ANSI A10.8-1988
American National Standards Institute, 1430 Broadway, New York, NY 10018.
"New Scaffold Standard CFR Part 1926,"Occupational Safety and Health Administration, U.S. Department of Labor 3rd and Constitution Ave., NW, Washington DC 20210
