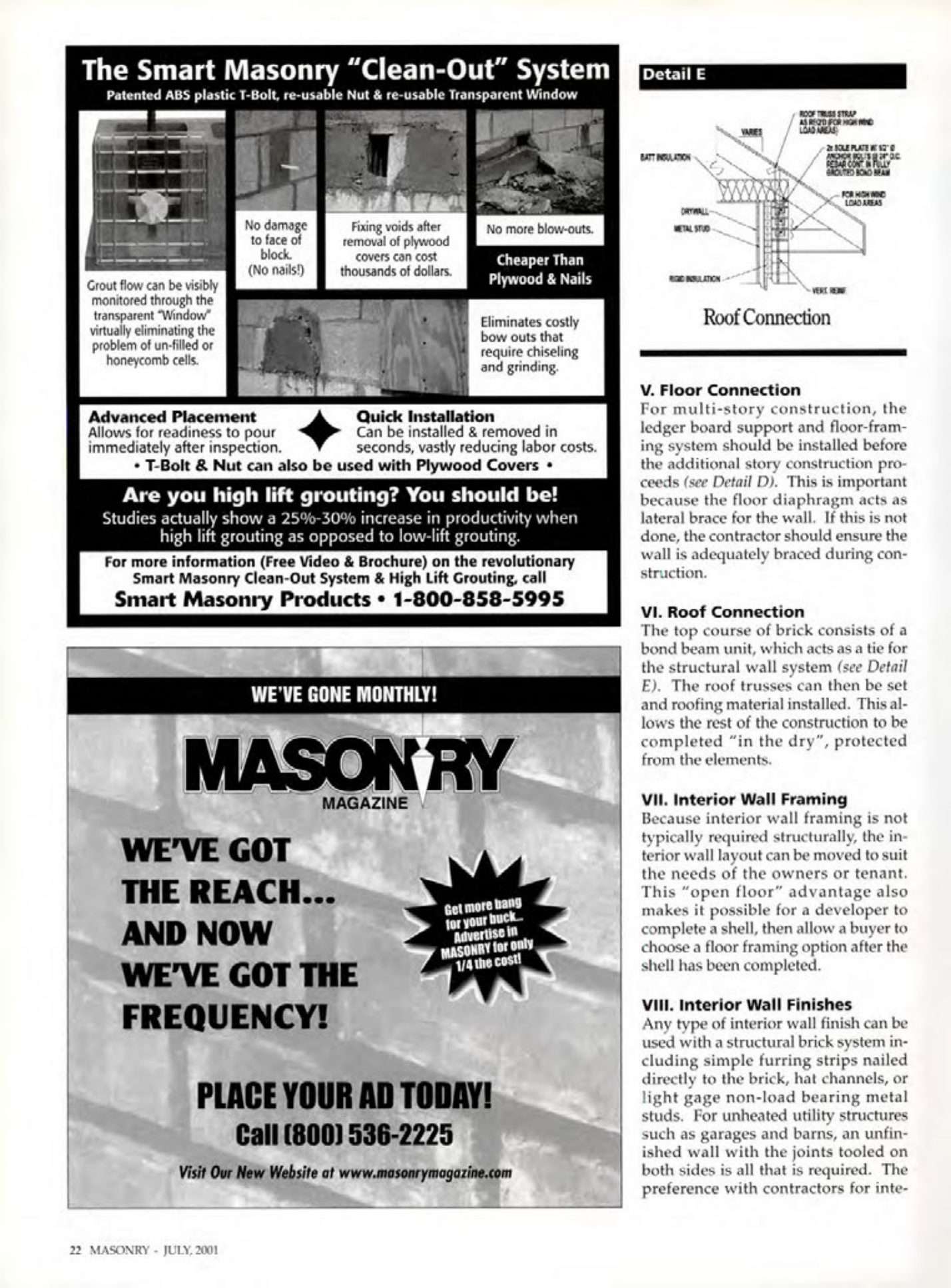

Detail E
Roof Connection
V. Floor Connection
For multi-story construction, the ledger board support and floor-framing system should be installed before the additional story construction proceeds (see Detail D). This is important because the floor diaphragm acts as lateral brace for the wall. If this is not done, the contractor should ensure the wall is adequately braced during construction.
VI. Roof Connection
The top course of brick consists of a bond beam unit, which acts as a tie for the structural wall system (see Detail E). The roof trusses can then be set and roofing material installed. This allows the rest of the construction to be completed "in the dry", protected from the elements.
VII. Interior Wall Framing
Because interior wall framing is not typically required structurally, the interior wall layout can be moved to suit the needs of the owners or tenant. This "open floor" advantage also makes it possible for a developer to complete a shell, then allow a buyer to choose a floor framing option after the shell has been completed.
VIII. Interior Wall Finishes
Any type of interior wall finish can be used with a structural brick system including simple furring strips nailed directly to the brick, hat channels, or light gage non-load bearing metal studs. For unheated utility structures such as garages and barns, an unfinished wall with the joints tooled on both sides is all that is required. The preference with contractors for inte-
