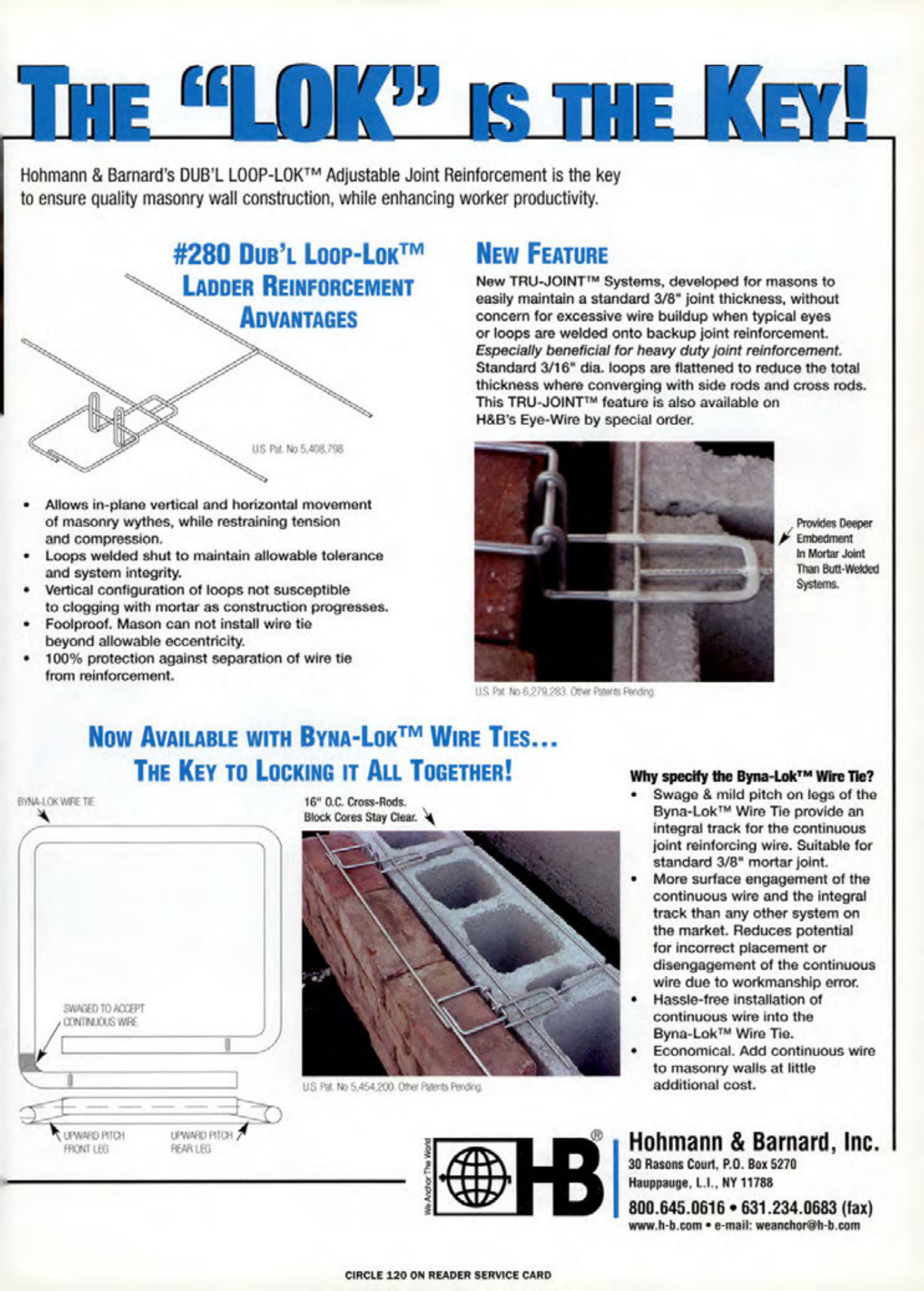

Masonry Magazine October 2003 Page. 17
THE "LOK" IS THE KEY!
Hohmann & Barnard's DUB'L LOOP-LOKTM Adjustable Joint Reinforcement is the key to ensure quality masonry wall construction, while enhancing worker productivity.
#280 DUB'L LOOP-LOKTM
LADDER REINFORCEMENT
ADVANTAGES
US P No 5,408,798
NEW FEATURE
New TRU-JOINT™ Systems, developed for masons to easily maintain a standard 3/8" joint thickness, without concern for excessive wire buildup when typical eyes or loops are welded onto backup joint reinforcement. Especially beneficial for heavy duty joint reinforcement. Standard 3/16" dia. loops are flattened to reduce the total thickness where converging with side rods and cross rods. This TRU-JOINT™™ feature is also available on H&B's Eye-Wire by special order.
Allows in-plane vertical and horizontal movement of masonry wythes, while restraining tension and compression.
Loops welded shut to maintain allowable tolerance and system integrity.
Vertical configuration of loops not susceptible to clogging with mortar as construction progresses.
Foolproof. Mason can not install wire tie beyond allowable eccentricity.
100% protection against separation of wire tie from reinforcement. US Pat No 6,279,283. Other Patents Pending
NOW AVAILABLE WITH BYNA-LOKTM WIRE TIES...
THE KEY TO LOCKING IT ALL TOGETHER!
BYNA-LOK WIRE TE
16" O.C. Cross-Rods.
Block Cores Stay Clear.
SWAGED TO ACCEPT
CONTINUOUS WIRE
UPWARD PITCH
FRONT LEG
UPWVID PITCH
REAR LEG
Provides Deeper
Embedment
In Mortar Joint
Than Butt-Welded
Systems.
US Pat. No 5,454,200 Other Patents Pending
Why specify the Byna-Lok™ Wire Tie?
Swage & mild pitch on legs of the Byna-Lok™ Wire Tie provide an integral track for the continuous joint reinforcing wire. Suitable for standard 3/8" mortar joint.
More surface engagement of the continuous wire and the integral track than any other system on the market. Reduces potential for incorrect placement or disengagement of the continuous wire due to workmanship error.
Hassle-free installation of continuous wire into the Byna-Lok™ Wire Tie.
Economical. Add continuous wire to masonry walls at little additional cost.
Hohmann & Barnard, Inc.
30 Rasons Court, P.O. Box 5270
Hauppauge, L.I., NY 11788
800.645.0616 631.234.0683 (fax)
www.h-b.com e-mail: weanchor@h-b.com
