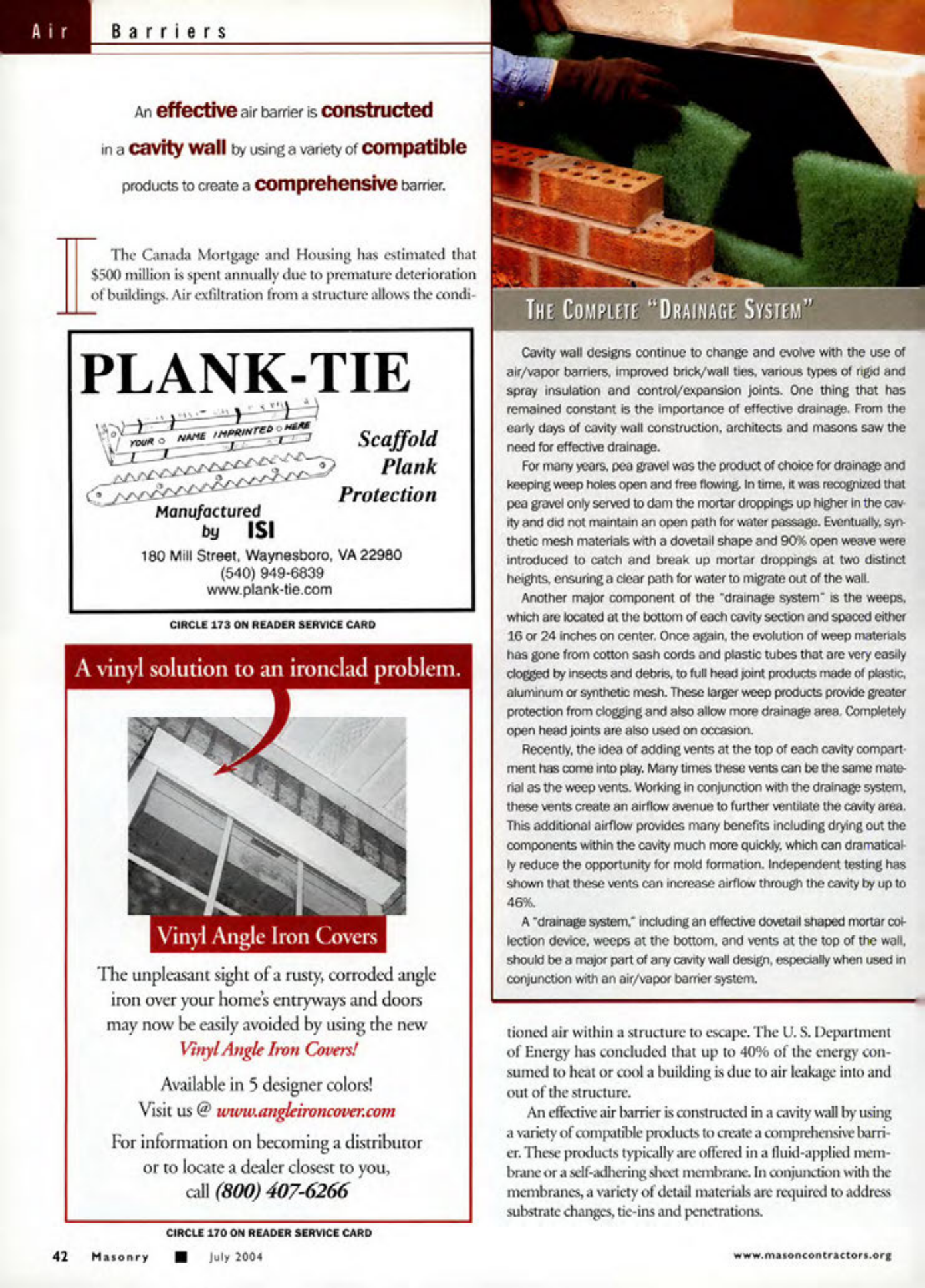

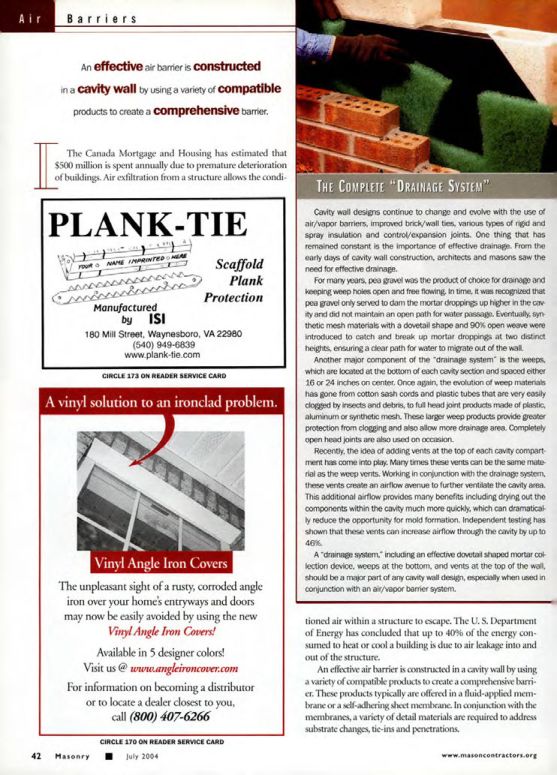

Masonry Magazine July 2004 Page. 44
Air Barriers
An **effective** air barrier is **constructed** in a **cavity wall** by using a variety of **compatible** products to create a **comprehensive** barrier.
The Canada Mortgage and Housing has estimated that $500 million is spent annually due to premature deterioration of buildings. Air exfiltration from a structure allows the conditioned air within a structure to escape. The U. S. Department of Energy has concluded that up to 40% of the energy consumed to heat or cool a building is due to air leakage into and out of the structure.
An effective air barrier is constructed in a cavity wall by using a variety of compatible products to create a comprehensive barrier. These products typically are offered in a fluid-applied membrane or a self-adhering sheet membrane. In conjunction with the membranes, a variety of detail materials are required to address substrate changes, tie-ins and penetrations.
PLANK-TIE
PLANK-TIE
YOUR NAME IMPRINTED HERE
Scaffold
Plank
Protection
Manufactured
by ISI
180 Mill Street, Waynesboro, VA 22980
(540) 949-6839
www.plank-tie.com
Vinyl Angle Iron Covers
A vinyl solution to an ironclad problem.
The unpleasant sight of a rusty, corroded angle iron over your home's entryways and doors may now be easily avoided by using the new **Vinyl Angle Iron Covers!**
Available in 5 designer colors!
Visit us @ www.angleironcover.com
For information on becoming a distributor or to locate a dealer closest to you, call **(800) 407-6266**
THE COMPLETE "DRAINAGE SYSTEM"
Cavity wall designs continue to change and evolve with the use of air/vapor barriers, improved brick/wall ties, various types of rigid and spray insulation and control/expansion joints. One thing that has remained constant is the importance of effective drainage. From the early days of cavity wall construction, architects and masons saw the need for effective drainage.
For many years, pea gravel was the product of choice for drainage and keeping weep holes open and free flowing, In time, it was recognized that pea gravel only served to dam the mortar droppings up higher in the cavity and did not maintain an open path for water passage. Eventually, synthetic mesh materials with a dovetail shape and 90% open weave were introduced to catch and break up mortar droppings at two distinct heights, ensuring a clear path for water to migrate out of the wall.
Another major component of the "drainage system" is the weeps, which are located at the bottom of each cavity section and spaced either 16 or 24 inches on center. Once again, the evolution of weep materials has gone from cotton sash cords and plastic tubes that are very easily clogged by insects and debris, to full head joint products made of plastic, aluminum or synthetic mesh. These larger weep products provide greater protection from clogging and also allow more drainage area. Completely open head joints are also used on occasion.
Recently, the idea of adding vents at the top of each cavity compartment has come into play. Many times these vents can be the same material as the weep vents. Working in conjunction with the drainage system, these vents create an airflow avenue to further ventilate the cavity area. This additional airflow provides many benefits including drying out the components within the cavity much more quickly, which can dramatically reduce the opportunity for mold formation. Independent testing has shown that these vents can increase airflow through the cavity by up to 46%
A "drainage system," including an effective dovetail shaped mortar collection device, weeps at the bottom, and vents at the top of the wall, should be a major part of any cavity wall design, especially when used in conjunction with an air/vapor barrier system.
