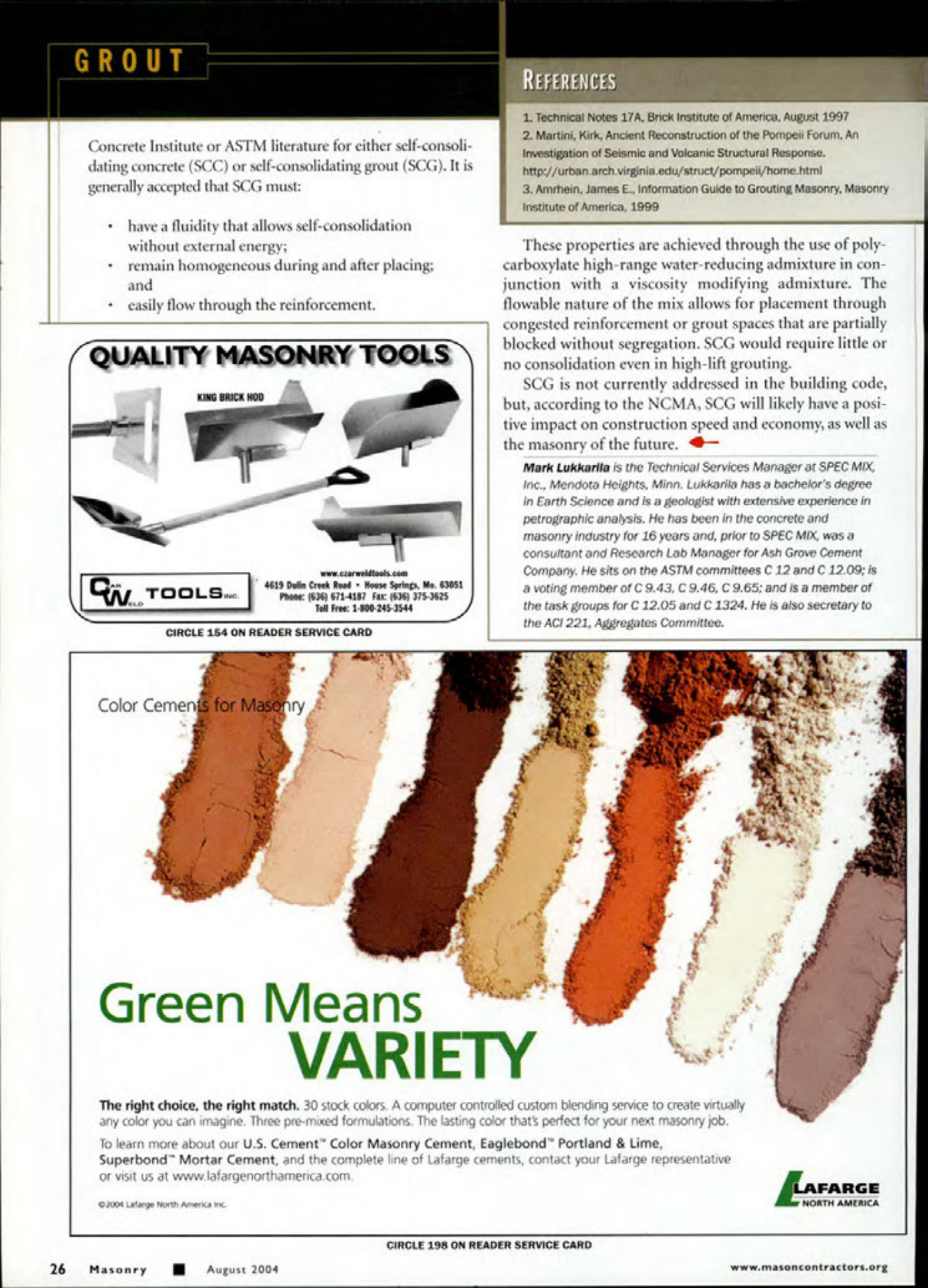

Masonry Magazine August 2004 Page. 28
GROUT
Concrete Institute or ASTM literature for either self-consolidating concrete (SCC) or self-consolidating grout (SCG). It is generally accepted that SCG must:
* have a fluidity that allows self-consolidation without external energy;
* remain homogeneous during and after placing; and
* easily flow through the reinforcement.
QUALITY MASONRY TOOLS
KING BRICK HOD
WTOOLS
4615 Dullin Creek
Springs Μ. 63051
Phone: (536) 671-4187 Fax: (636) 375-3625
Toll Free: 1-800-245-3544
CIRCLE 154 ON READER SERVICE CARD
REFERENCES
1. Technical Notes 17A, Brick Institute of America, August 1997
2. Martini, Kirk, Ancient Reconstruction of the Pompeii Forum, An Investigation of Seismic and Volcanic Structural Response. http://urban.arch.virginia.edu/struct/pompeil/home.html
3. Amrhein, James E., Information Guide to Grouting Masonry Masonry Institute of America, 1999
These properties are achieved through the use of poly-carboxylate high-range water-reducing admixture in conjunction with a viscosity modifying admixture. The flowable nature of the mix allows for placement through congested reinforcement or grout spaces that are partially blocked without segregation. SCG would require little or no consolidation even in high-lift grouting.
SCG is not currently addressed in the building code, but, according to the NCMA, SCG will likely have a positive impact on construction speed and economy, as well as the masonry of the future.
Mark Lukkarila is the Technical Services Manager at SPEC MIX, Inc., Mendota Heights, Minn. Lukkarila has a bachelor's degree in Earth Science and is a geologist with extensive experience in petrographic analysis. He has been in the concrete and masonry industry for 16 years and, prior to SPEC MIX, was a consultant and Research Lab Manager for Ash Grove Cement Company. He sits on the ASTM committees C 12 and C 12.09; is a voting member of C 9.43, C 9.46, C 9.65: and is a member of the task groups for C 12.05 and C 1324. He is also secretary to the ACI 221, Aggregates Committee.
