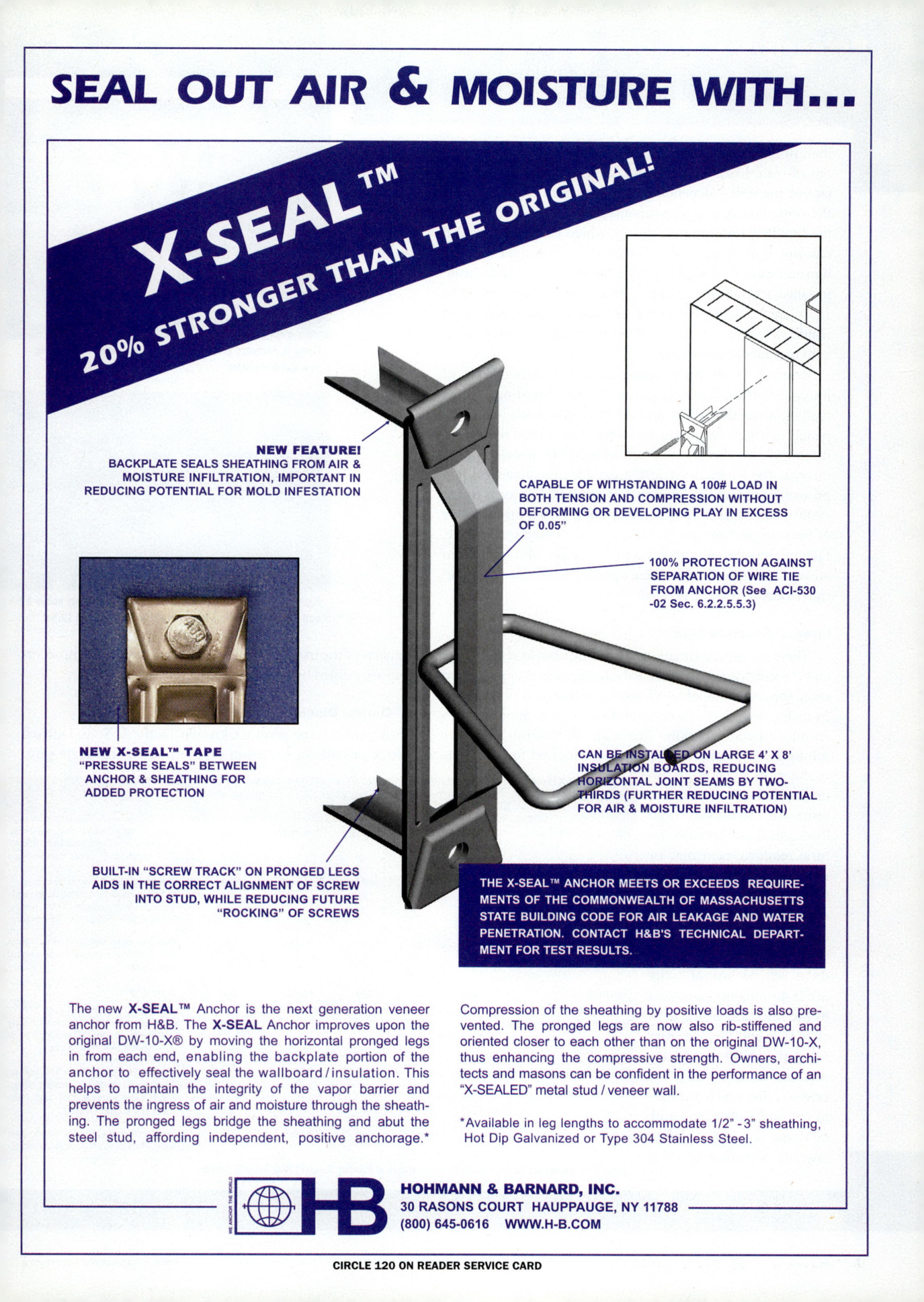

SEAL OUT AIR & MOISTURE WITH...
X-SEALT™
20% STRONGER THAN THE ORIGINAL!
NEW FEATURE!
BACKPLATE SEALS SHEATHING FROM AIR & MOISTURE INFILTRATION, IMPORTANT IN REDUCING POTENTIAL FOR MOLD INFESTATION
CAPABLE OF WITHSTANDING A 100# LOAD IN BOTH TENSION AND COMPRESSION WITHOUT DEFORMING OR DEVELOPING PLAY IN EXCESS OF 0.05"
NEW X-SEAL TAPE
"PRESSURE SEALS" BETWEEN ANCHOR & SHEATHING FOR ADDED PROTECTION
100% PROTECTION AGAINST SEPARATION OF WIRE TIE FROM ANCHOR (See ACI-530 -02 Sec. 6.2.2.5.5.3)
CAN BE INSTALEDON LARGE 4X8 INSULATION BOARDS, REDUCING HORIZONTAL JOINT SEAMS BY TWO-WIRDS (FURTHER REDUCING POTENTIAL FOR AIR & MOISTURE INFILTRATION)
BUILT-IN "SCREW TRACK ON PRONGED LEGS AIDS IN THE CORRECT ALIGNMENT OF SCREW INTO STUD, WHILE REDUCING FUTURE "ROCKING" OF SCREWS
THE X-SEAL ANCHOR MEETS OR EXCEEDS REQUIREMENTS OF THE COMMONWEALTH OF MASSACHUSETTS STATE BUILDING CODE FOR AIR LEAKAGE AND WATER PENETRATION. CONTACT H&B'S TECHNICAL DEPARTMENT FOR TEST RESULTS.
The new X-SEAL™ Anchor is the next generation veneer anchor from H&B. The X-SEAL Anchor improves upon the original DW-10-X8 by moving the horizontal pronged legs in from each end, enabling the backplate portion of the anchor to effectively seal the wallboard/insulation. This helps to maintain the integrity of the vapor barrier and prevents the ingress of air and moisture through the sheathing. The pronged legs bridge the sheathing and abut the steel stud, affording independent, positive anchorage.
Compression of the sheathing by positive loads is also prevented. The pronged legs are now also rib-stiffened and oriented closer to each other than on the original DW-10-X, thus enhancing the compressive strength. Owners, architects and masons can be confident in the performance of an "X-SEALED" metal stud/veneer wall.
Available in leg lengths to accommodate 1/2"-3" sheathing. Hot Dip Galvanized or Type 304 Stainless Steel.
HOHMANN & BARNARD, INC.
30 RASONS COURT HAUPPAUGE, NY 11788
(800) 645-0616 WWW.H-B.COM
