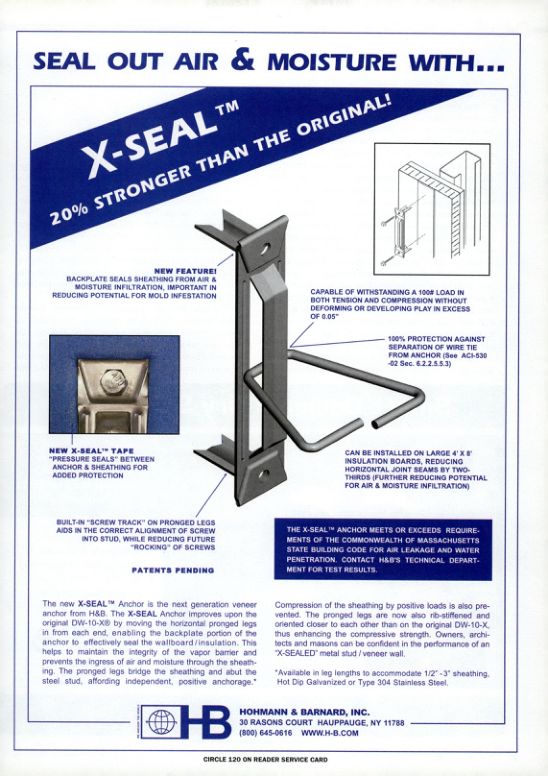

Masonry Magazine April 2005 Page. 39
SEAL OUT AIR & MOISTURE WITH...
X-SEAL™™
20% STRONGER THAN THE ORIGINAL!
NEW FEATUREI
BACKPLATE SEALS SHEATHING FROM AIR & MOISTURE INFILTRATION, IMPORTANT IN REDUCING POTENTIAL FOR MOLD INFESTATION
CAPABLE OF WITHSTANDING A 100# LOAD IN BOTH TENSION AND COMPRESSION WITHOUT DEFORMING OR DEVELOPING PLAY IN EXCESS OF 0.05"
NEW X-SEAL TAPE
"PRESSURE SEALS" BETWEEN ANCHOR & SHEATHING FOR ADDED PROTECTION
100% PROTECTION AGAINST SEPARATION OF WIRE TIE FROM ANCHOR (See ACI-530 -02 Sec. 6.2.2.5.5.3)
CAN BE INSTALLED ON LARGE 4'X8' INSULATION BOARDS, REDUCING HORIZONTAL JOINT SEAMS BY TWO-THIRDS (FURTHER REDUCING POTENTIAL FOR AIR & MOISTURE INFILTRATION)
BUILT-IN "SCREW TRACK" ON PRONGED LEGS AIDS IN THE CORRECT ALIGNMENT OF SCREW INTO STUD, WHILE REDUCING FUTURE "ROCKING OF SCREWS
PATENTS PENDING
THE X-SEALT ANCHOR MEETS OR EXCEEDS REQUIRE-MENTS OF THE COMMONWEALTH OF MASSACHUSETTS STATE BUILDING CODE FOR AIR LEAKAGE AND WATER PENETRATION. CONTACT H&B'S TECHNICAL DEPART-MENT FOR TEST RESULTS.
The new X-SEAL™ Anchor is the next generation veneer anchor from H&B. The X-SEAL Anchor improves upon the original DW-10-X® by moving the horizontal pronged legs in from each end, enabling the backplate portion of the anchor to effectively seal the wallboard/insulation. This helps to maintain the integrity of the vapor barrier and prevents the ingress of air and moisture through the sheath-ing. The pronged legs bridge the sheathing and abut the steel stud, affording independent, positive anchorage.
Compression of the sheathing by positive loads is also pre-vented. The pronged legs are now also rib-stiffened and oriented closer to each other than on the original DW-10-X thus enhancing the compressive strength. Owners, archi-tects and masons can be confident in the performance of an "X-SEALED" metal stud/veneer wall.
Available in leg lengths to accommodate 1/2"-3" sheathing. Hot Dip Galvanized or Type 304 Stainless Steel.
