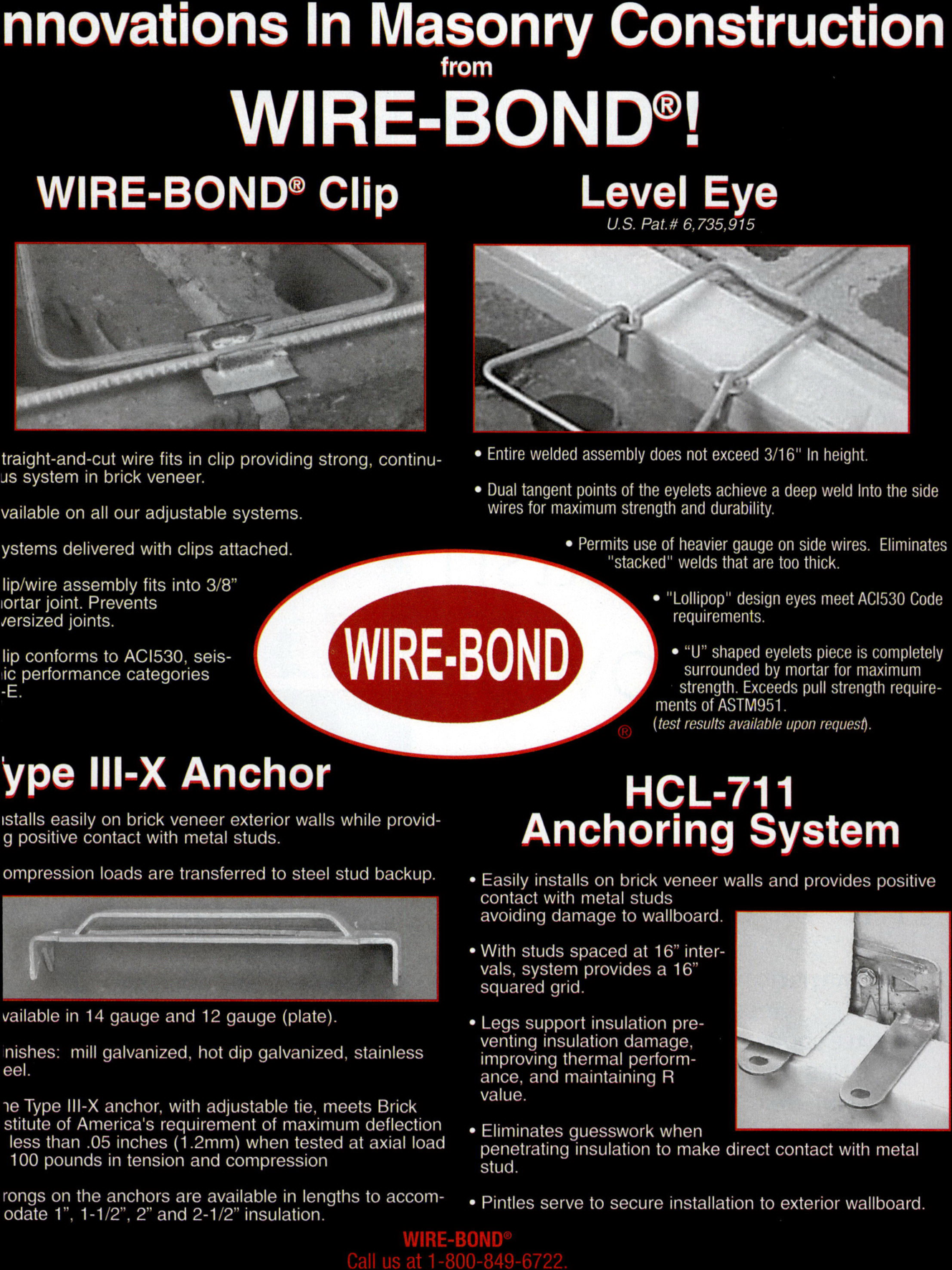

Masonry Magazine August 2005 Page. 35
Innovations In Masonry Construction
from
WIRE-BOND®!
WIRE-BOND® Clip
Level Eye
U.S. Pat.# 6,735,915
* Straight-and-cut wire fits in clip providing strong, continuous system in brick veneer.
* Available on all our adjustable systems.
* Systems delivered with clips attached.
* Clip/wire assembly fits into 3/8" mortar joint. Prevents oversized joints.
* Clip conforms to AC1530, seismic performance categories -E
* Entire welded assembly does not exceed 3/16" In height.
* Dual tangent points of the eyelets achieve a deep weld Into the side wires for maximum strength and durability.
* Permits use of heavier gauge on side wires. Eliminates "stacked" welds that are too thick.
* "Lollipop" design eyes meet ACI530 Code requirements.
* "U" shaped eyelets piece is completely surrounded by mortar for maximum strength. Exceeds pull strength requirements of ASTM951. (test results available upon request).
Type III-X Anchor
HCL-711
Anchoring System
* Installs easily on brick veneer exterior walls while providing positive contact with metal studs.
* Compression loads are transferred to steel stud backup.
* Available in 14 gauge and 12 gauge (plate).
* Finishes: mill galvanized, hot dip galvanized, stainless steel.
* One Type III-X anchor, with adjustable tie, meets Brick Institute of America's requirement of maximum deflection of less than .05 inches (1.2mm) when tested at axial load of 100 pounds in tension and compression
* Prongs on the anchors are available in lengths to accommodate 1", 1-1/2", 2" and 2-1/2" insulation.
* Easily installs on brick veneer walls and provides positive contact with metal studs avoiding damage to wallboard.
* With studs spaced at 16" intervals, system provides a 16" squared grid.
* Legs support insulation preventing insulation damage, improving thermal performance, and maintaining R value.
* Eliminates guesswork when penetrating insulation to make direct contact with metal stud.
* Pintles serve to secure installation to exterior wallboard.
WIRE-BOND®
Call us at 1-800-849-6722.
