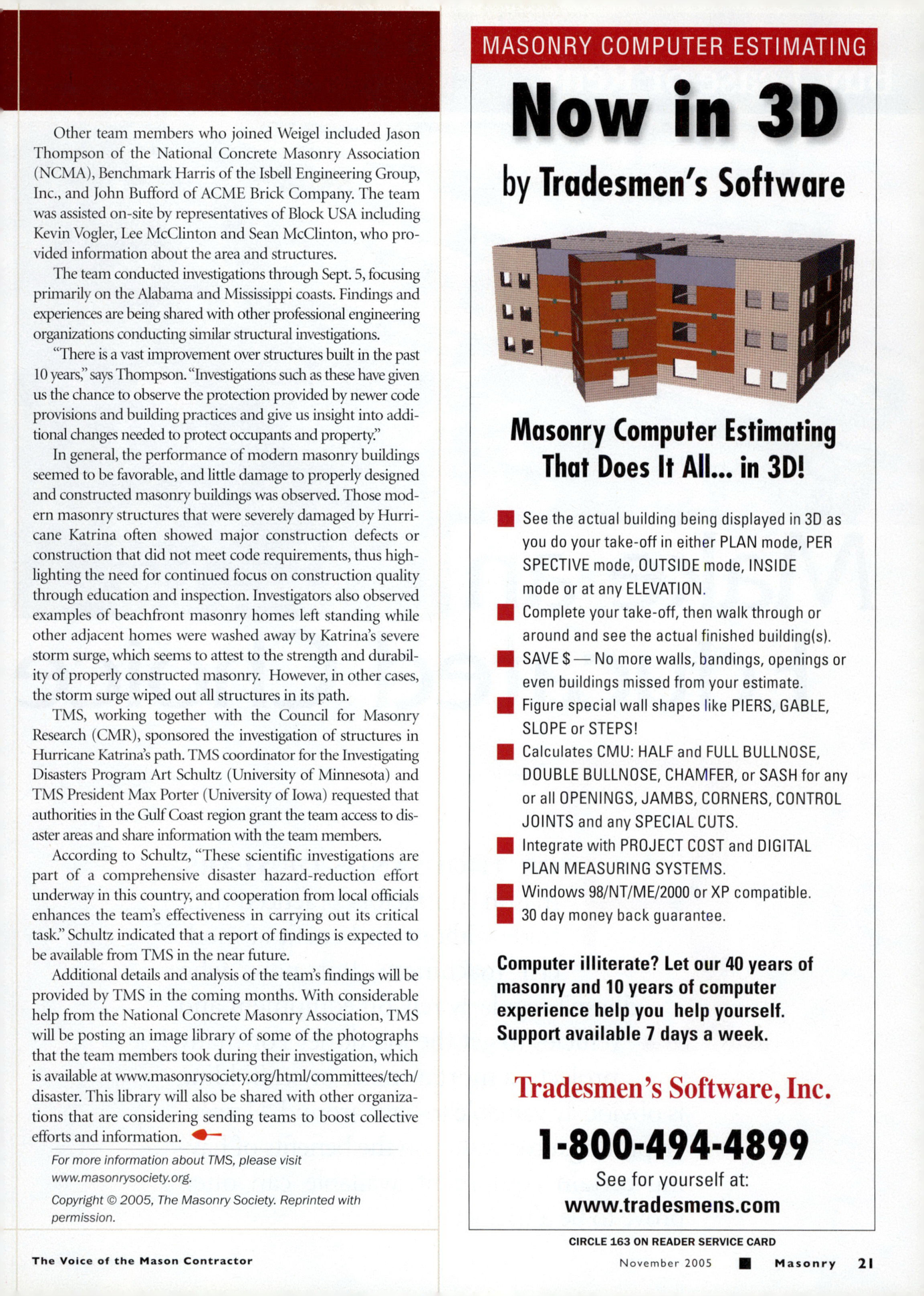

Masonry Magazine November 2005 Page. 23
MASONRY COMPUTER ESTIMATING
Now in 3D
by Tradesmen's Software
Masonry Computer Estimating
That Does It All... in 3D!
See the actual building being displayed in 3D as you do your take-off in either PLAN mode, PERSPECTIVE mode, OUTSIDE mode, INSIDE mode or at any ELEVATION.
Complete your take-off, then walk through or around and see the actual finished building(s).
SAVE S- No more walls, bandings, openings or even buildings missed from your estimate.
Figure special wall shapes like PIERS, GABLE, SLOPE or STEPS!
Calculates CMU: HALF and FULL BULLNOSE, DOUBLE BULLNOSE, CHAMFER, or SASH for any or all OPENINGS, JAMBS, CORNERS, CONTROL JOINTS and any SPECIAL CUTS.
Integrate with PROJECT COST and DIGITAL PLAN MEASURING SYSTEMS.
Windows 98/NT/ME/2000 or XP compatible.
30 day money back guarantee.
Computer illiterate? Let our 40 years of masonry and 10 years of computer experience help you help yourself. Support available 7 days a week.
Tradesmen's Software, Inc.
1-800-494-4899
See for yourself at:
www.tradesmens.com
CIRCLE 163 ON READER SERVICE CARD
November 2005
Masonry 21
Other team members who joined Weigel included Jason Thompson of the National Concrete Masonry Association (NCMA), Benchmark Harris of the Isbell Engineering Group, Inc., and John Bufford of ACME Brick Company. The team was assisted on-site by representatives of Block USA including Kevin Vogler, Lee McClinton and Sean McClinton, who provided information about the area and structures.
The team conducted investigations through Sept. 5, focusing primarily on the Alabama and Mississippi coasts. Findings and experiences are being shared with other professional engineering organizations conducting similar structural investigations.
"There is a vast improvement over structures built in the past 10 years," says Thompson. "Investigations such as these have given us the chance to observe the protection provided by newer code provisions and building practices and give us insight into additional changes needed to protect occupants and property."
In general, the performance of modern masonry buildings seemed to be favorable, and little damage to properly designed and constructed masonry buildings was observed. Those modern masonry structures that were severely damaged by Hurricane Katrina often showed major construction defects or construction that did not meet code requirements, thus highlighting the need for continued focus on construction quality through education and inspection. Investigators also observed examples of beachfront masonry homes left standing while other adjacent homes were washed away by Katrina's severe storm surge, which seems to attest to the strength and durability of properly constructed masonry. However, in other cases, the storm surge wiped out all structures in its path.
TMS, working together with the Council for Masonry Research (CMR), sponsored the investigation of structures in Hurricane Katrina's path. TMS coordinator for the Investigating Disasters Program Art Schultz (University of Minnesota) and TMS President Max Porter (University of lowa) requested that authorities in the Gulf Coast region grant the team access to disaster areas and share information with the team members.
According to Schultz, "These scientific investigations are part of a comprehensive disaster hazard-reduction effort underway in this country, and cooperation from local officials enhances the team's effectiveness in carrying out its critical task." Schultz indicated that a report of findings is expected to be available from TMS in the near future.
Additional details and analysis of the team's findings will be provided by TMS in the coming months. With considerable help from the National Concrete Masonry Association, TMS will be posting an image library of some of the photographs that the team members took during their investigation, which is available at www.masonrysociety.org/html/committees/tech/disaster. This library will also be shared with other organizations that are considering sending teams to boost collective efforts and information.
For more information about TMS, please visit
www.masonrysociety.org
Copyright © 2005, The Masonry Society. Reprinted with permission.
