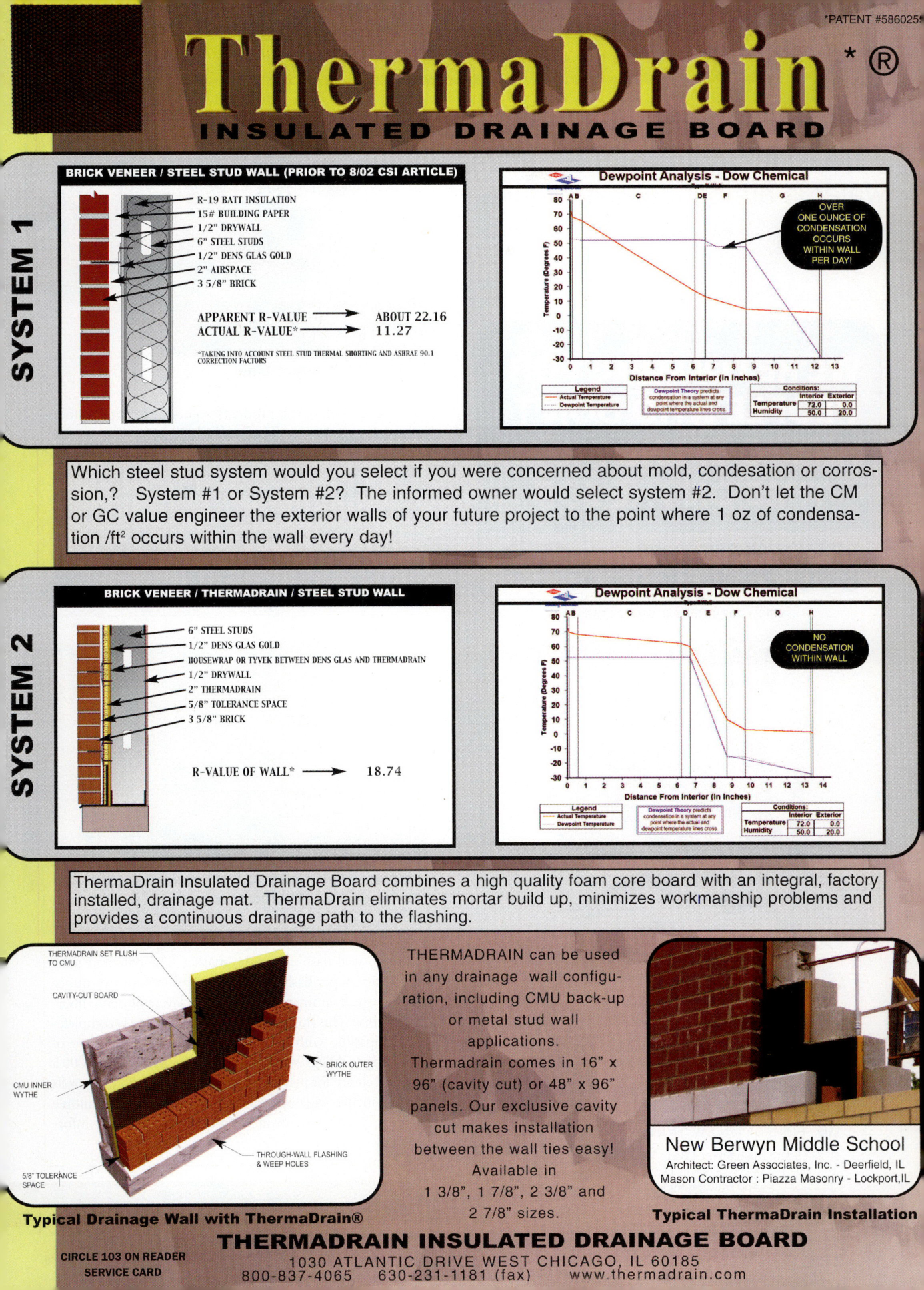

Masonry Magazine November 2005 Page. 37
PATENT #586025
Therma Drain®
INSULATED DRAINAGE BOARD
BRICK VENEER/STEEL STUD WALL (PRIOR TO 8/02 CSI ARTICLE)
R-19 BATT INSULATION
150 BUILDING PAPER
1/2" BRYWALL
6 STEEL STURS
1/2" BENS GLAS GOLD
2 AIRSPACE
35ABRICK
APPARENT R-VALUE ABOUT 22.16
ACTUAL R-VALUE 11.27
Dewpoint Analysis-Dow Chemical
OVER
ONE OUNCE OF
CONDENSATION
OCCURS
WITHIN WALL
PER DAYT
Which steel stud system would you select if you were concerned about mold, condensation or corrosion? System #1 or System #2? The informed owner would select system #2. Don't let the CM or GC value engineer the exterior walls of your future project to the point where 1 oz of condensation /ft occurs within the wall every day!
BRICK VENEER/THERMADRAIN/STEEL STUD WALL
6 STEEL STU
1/2" BENS GLAS GOLD
BOSEKEAP OR TYVEKRETENDENS GLAS AND THERMAPRAN
1/2" RYWALL
2 THERMADRAIN
5/8
TOLERANCE SPACE
35/8 BRICK
R-VALUE OF WALL 18.74
Dewpoint Analysis - Dow Chemical
NO
CONDENSATION
WITHIN WALL
ThermaDrain Insulated Drainage Board combines a high quality foam core board with an integral, factory installed, drainage mat. ThermaDrain eliminates mortar build up, minimizes workmanship problems and provides a continuous drainage path to the flashing.
THERMADRAIN can be used in any drainage wall configuration, including CMU back-up or metal stud wall applications. Thermadrain comes in 16" x 96" (cavity cut) or 48" x 96" panels. Our exclusive cavity cut makes installation between the wall ties easy! Available in 1 3/8", 1 7/8", 2 3/8" and 2 7/8" sizes.
New Berwyn Middle School
Architect: Green Associates, Inc. - Deerfield, IL
Mason Contractor: Piazza Masonry-Lockport L
Typical Drainage Wall with ThermaDrain®
Typical ThermaDrain Installation
THERMADRAIN INSULATED DRAINAGE BOARD
1030 ATLANTIC DRIVE WEST CHICAGO, IL 60185
800-837-4065 630-231-1181 (fax) www.thermadrain.com
