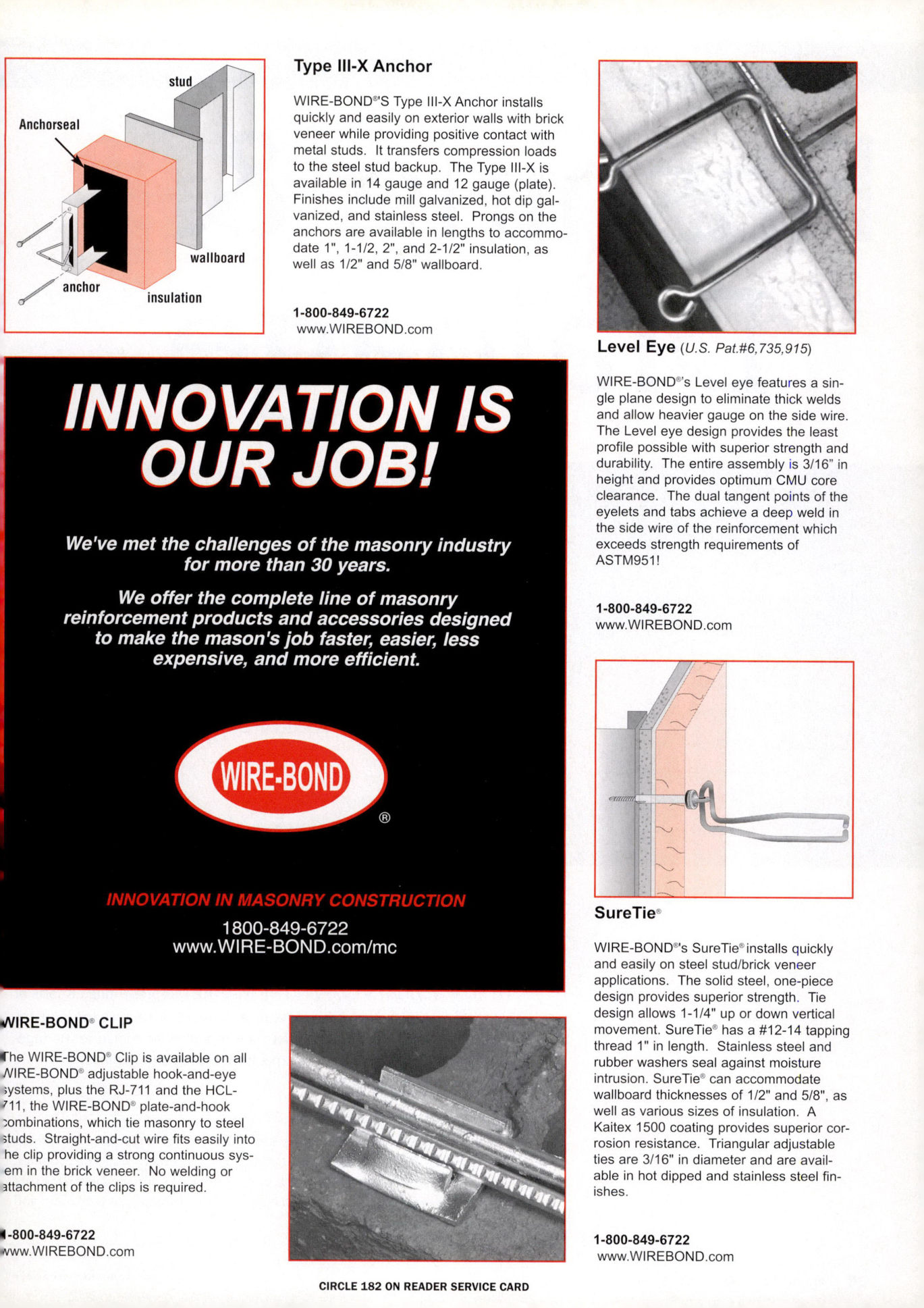

Masonry Magazine March 2006 Page. 39
Type III-X Anchor
WIRE-BOND'S Type III-X Anchor installs quickly and easily on exterior walls with brick veneer while providing positive contact with metal studs. It transfers compression loads to the steel stud backup. The Type III-X is available in 14 gauge and 12 gauge (plate). Finishes include mill galvanized, hot dip galvanized, and stainless steel. Prongs on the anchors are available in lengths to accommodate 1", 1-1/2, 2", and 2-1/2" insulation, as well as 1/2" and 5/8" wallboard.
1-800-849-6722
www.WIREBOND.com
INNOVATION IS OUR JOB!
We've met the challenges of the masonry industry for more than 30 years.
We offer the complete line of masonry reinforcement products and accessories designed to make the mason's job faster, easier, less expensive, and more efficient.
INNOVATION IN MASONRY CONSTRUCTION
1800-849-6722
www.WIRE-BOND.com/mc
Level Eye (U.S. Pat.#6,735,915)
WIRE-BOND's Level eye features a single plane design to eliminate thick welds and allow heavier gauge on the side wire. The Level eye design provides the least profile possible with superior strength and durability. The entire assembly is 3/16" in height and provides optimum CMU core clearance. The dual tangent points of the eyelets and tabs achieve a deep weld in the side wire of the reinforcement which exceeds strength requirements of ASTM9511.
1-800-849-6722
www.WIREBOND.com
SureTie
WIRE-BOND's SureTie" installs quickly and easily on steel stud/brick veneer applications. The solid steel, one-piece design provides superior strength. Tie design allows 1-1/4" up or down vertical movement. SureTie" has a #12-14 tapping thread 1" in length. Stainless steel and rubber washers seal against moisture intrusion. Sure Tie" can accommodate wallboard thicknesses of 1/2" and 5/8", as well as various sizes of insulation. A Kaitex 1500 coating provides superior corrosion resistance. Triangular adjustable ties are 3/16" in diameter and are available in hot dipped and stainless steel finishes.
1-800-849-6722
www.WIREBOND.com
WIRE-BOND CLIP
The WIRE-BOND Clip is available on all WIRE-BOND adjustable hook-and-eye systems, plus the RJ-711 and the HCL-711, the WIRE-BOND" plate-and-hook combinations, which tie masonry to steel studs. Straight-and-cut wire fits easily into he clip providing a strong continuous system in the brick veneer. No welding or attachment of the clips is required.
-800-849-6722
www.WIREBOND.com
