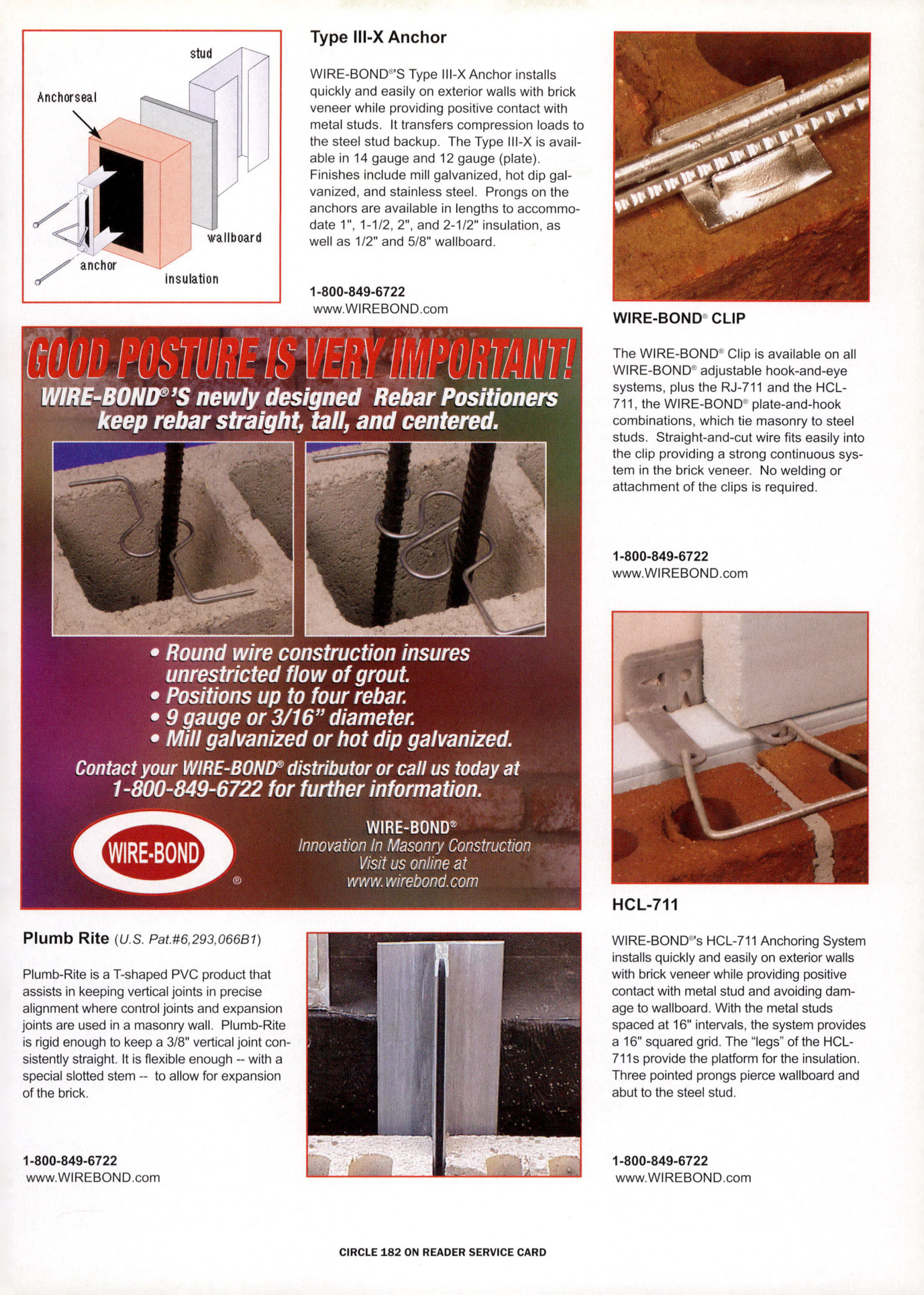

Masonry Magazine September 2006 Page. 53
Type III-X Anchor
WIRE-BOND'S Type III-X Anchor installs quickly and easily on exterior walls with brick veneer while providing positive contact with metal studs. It transfers compression loads to the steel stud backup. The Type III-X is available in 14 gauge and 12 gauge (plate). Finishes include mill galvanized, hot dip galvanized, and stainless steel. Prongs on the anchors are available in lengths to accommodate 1", 1-1/2, 2", and 2-1/2" insulation, as well as 1/2" and 5/8" wallboard.
1-800-849-6722
www.WIREBOND.com
WIRE-BOND CLIP
The WIRE-BOND Clip is available on all WIRE-BOND adjustable hook-and-eye systems, plus the RJ-711 and the HCL-711, the WIRE-BOND plate-and-hook combinations, which tie masonry to steel studs. Straight-and-cut wire fits easily into the clip providing a strong continuous system in the brick veneer. No welding or attachment of the clips is required.
1-800-849-6722
www.WIREBOND.com
* Round wire construction insures unrestricted flow of grout.
* Positions up to four rebar.
* 9 gauge or 3/16" diameter.
* Mill galvanized or hot dip galvanized.
Contact your WIRE-BOND® distributor or call us today at 1-800-849-6722 for further information.
Plumb Rite (U.S. Pat.#6,293,06681)
Plumb-Rite is a T-shaped PVC product that assists in keeping vertical joints in precise alignment where control joints and expansion joints are used in a masonry wall. Plumb-Rite is rigid enough to keep a 3/8" vertical joint consistently straight. It is flexible enough - with a special slotted stem to allow for expansion of the brick.
1-800-849-6722
www.WIREBOND.com
HCL-711
WIRE-BOND's HCL-711 Anchoring System installs quickly and easily on exterior walls with brick veneer while providing positive contact with metal stud and avoiding damage to wallboard. With the metal studs spaced at 16" intervals, the system provides a 16" squared grid. The legs" of the HCL-711s provide the platform for the insulation. Three pointed prongs pierce wallboard and abut to the steel stud.
1-800-849-6722
www.WIREBOND.com
