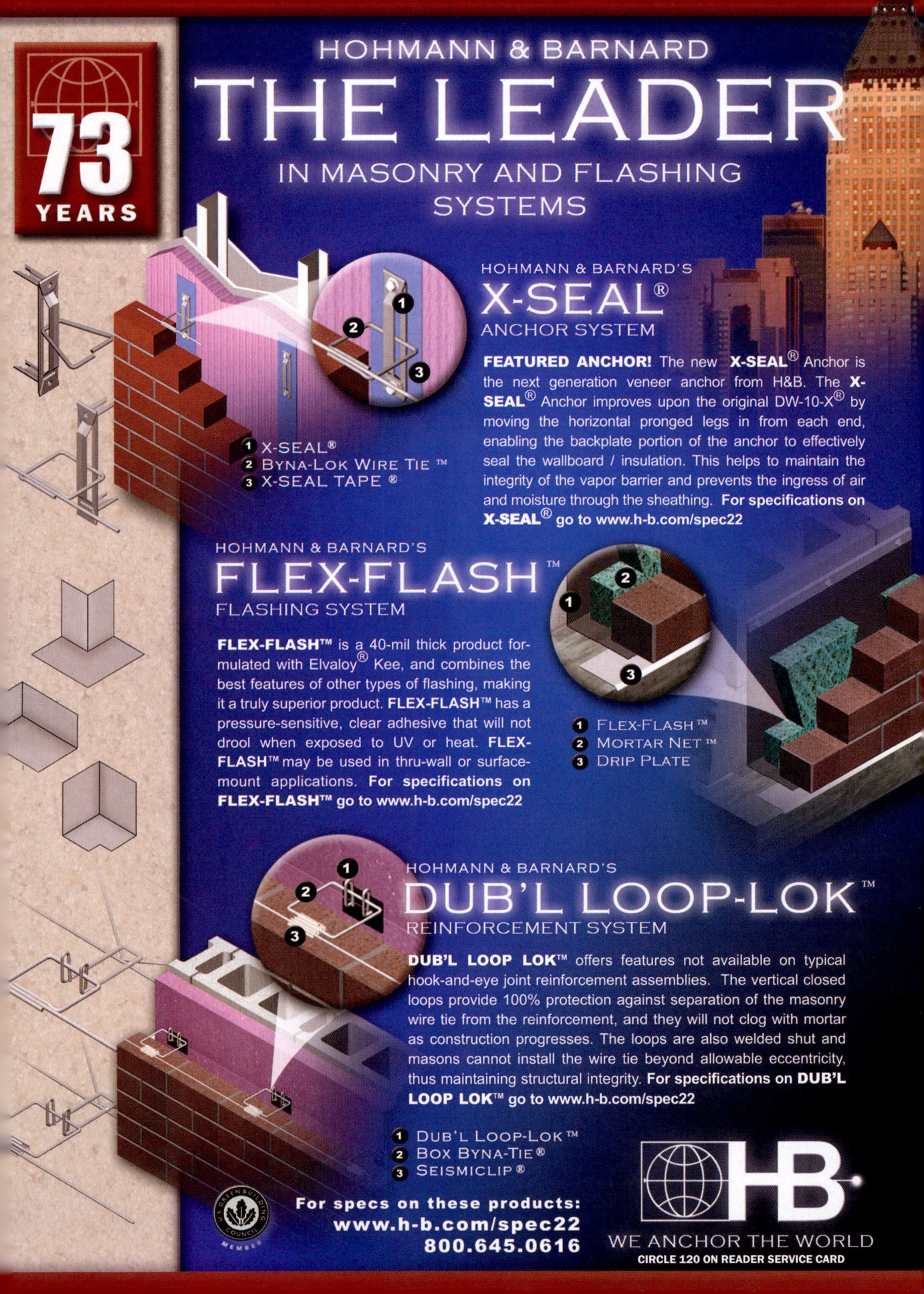

Masonry Magazine October 2006 Page. 25
73
YEARS
HOHMANN & BARNARD
THE LEADER
IN MASONRY AND FLASHING
SYSTEMS
X-SEAL
1 BYNA-LOK WIRE TIEM
2 X-SEAL TAPE
HOHMANN & BARNARD'S
X-SEAL
ANCHOR SYSTEM
FEATURED ANCHOR! The new X-SEAL Anchor is the next generation veneer anchor from H&B. The X-SEAL® Anchor improves upon the original DW-10-X® by moving the horizontal pronged legs in from each end, enabling the backplate portion of the anchor to effectively seal the wallboard/insulation. This helps to maintain the integrity of the vapor barrier and prevents the ingress of air and moisture through the sheathing. For specifications on X-SEAL go to www.h-b.com/spec22
HOHMANN & BARNARD'S
FLEX-FLASH
FLASHING SYSTEM
FLEX-FLASH™ is a 40-mil thick product formulated with Elvaloy Kee, and combines the best features of other types of flashing, making it a truly superior product. FLEX-FLASH™ has a pressure-sensitive, clear adhesive that will not drool when exposed to UV or heat. FLEX-FLASH™ may be used in thru-wall or surface-mount applications. For specifications on FLEX-FLASH™ go to www.h-b.com/spec22
1 FLEX-FLASH
2 MORTAR NET™
3 DRIP PLATE
HOHMANN & BARNARD'S
DUB'L LOOP-LOK™
REINFORCEMENT SYSTEM
DUB'L LOOP LOK™ offers features not available on typical hook-and-eye joint reinforcement assemblies. The vertical closed loops provide 100% protection against separation of the masonry wire tie from the reinforcement, and they will not clog with mortar as construction progresses. The loops are also welded shut and masons cannot install the wire tie beyond allowable eccentricity, thus maintaining structural integrity. For specifications on DUB'L LOOP LOK™ go to www.h-b.com/spec22
1 DUB'L LOOP-LOK T™
2 BOX BYNA-TIE
3 SEISMICLIP
For specs on these products:
www.h-b.com/spec22
800.645.0616
HB
WE ANCHOR THE WORLD
CIRCLE 120 ON READER SERVICE CARD
