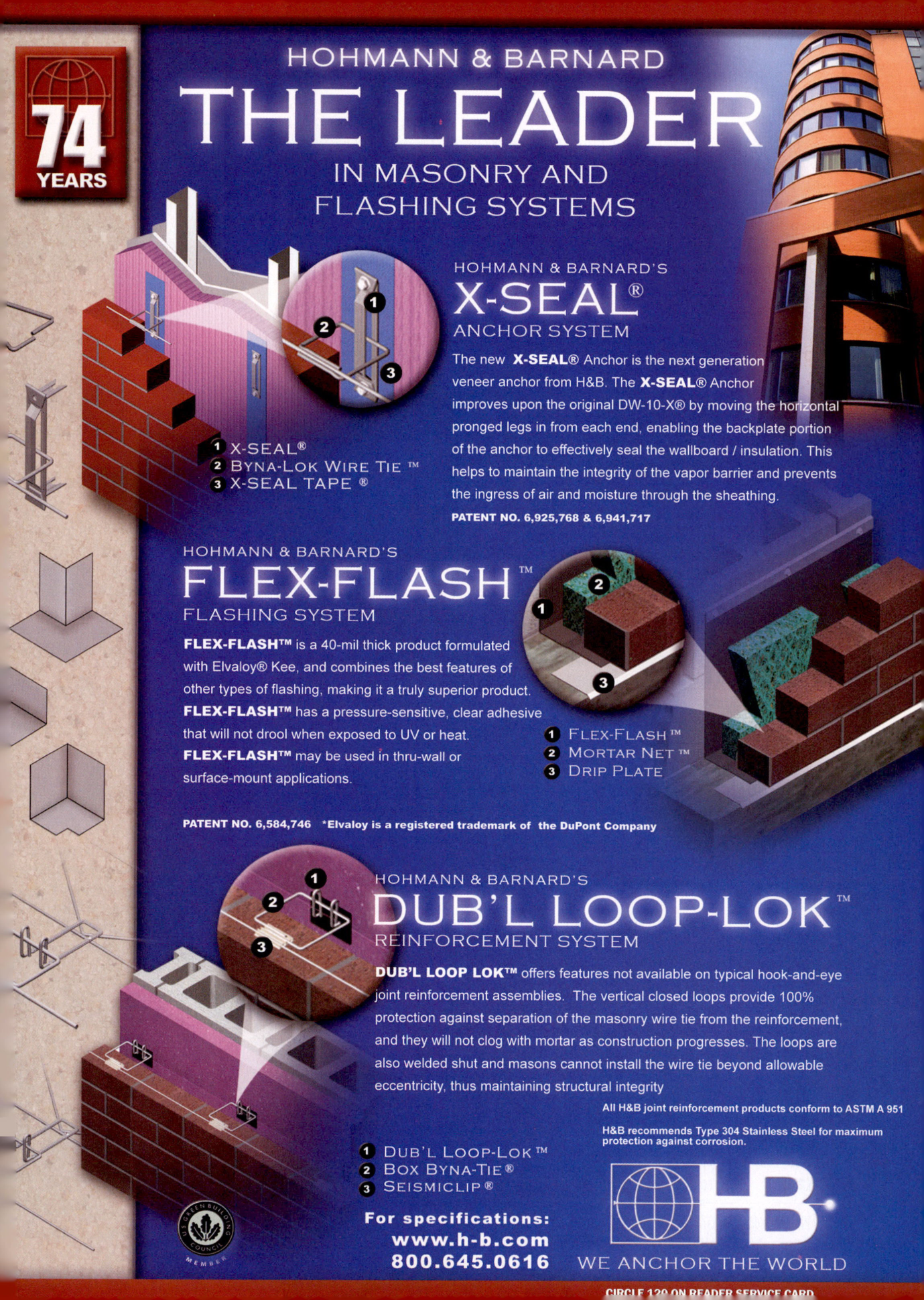

Masonry Magazine October 2007 Page. 49
HOHMANN & BARNARD
74 YEARS THE LEADER IN MASONRY AND FLASHING SYSTEMS
HOHMANN & BARNARD'S X-SEAL ANCHOR SYSTEM
The new X-SEAL® Anchor is the next generation veneer anchor from H&B. The X-SEAL® Anchor improves upon the original DW-10-X® by moving the horizontal pronged legs in from each end, enabling the backplate portion of the anchor to effectively seal the wallboard/insulation. This helps to maintain the integrity of the vapor barrier and prevents the ingress of air and moisture through the sheathing.
PATENT NO. 6,925,768 & 6,941,717
HOHMANN & BARNARD'S FLEX-FLASH FLASHING SYSTEM
FLEX-FLASH™ is a 40-mil thick product formulated with Elvaloy® Kee, and combines the best features of other types of flashing, making it a truly superior product. FLEX-FLASH™ has a pressure-sensitive, clear adhesive that will not drool when exposed to UV or heat. FLEX-FLASH™ may be used in thru-wall or surface-mount applications.
PATENT NO. 6,584,746 Elvaloy is a registered trademark of the DuPont Company
HOHMANN & BARNARD'S DUB'L LOOP-LOK REINFORCEMENT SYSTEM
DUB'L LOOP LOK™ offers features not available on typical hook-and-eye joint reinforcement assemblies. The vertical closed loops provide 100% protection against separation of the masonry wire tie from the reinforcement, and they will not clog with mortar as construction progresses. The loops are also welded shut and masons cannot install the wire tie beyond allowable eccentricity, thus maintaining structural integrity.
All H&B joint reinforcement products conform to ASTM A 951. H&B recommends Type 304 Stainless Steel for maximum protection against corrosion.
For specifications: www.h-b.com 800.645.0616
