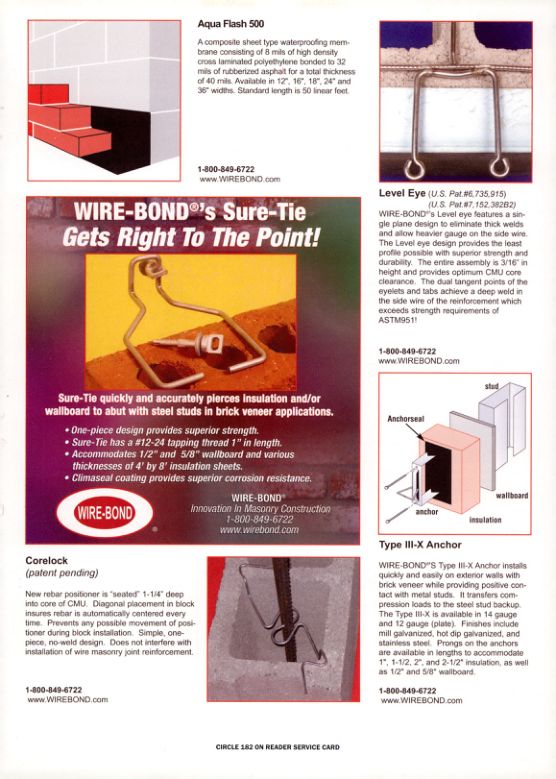

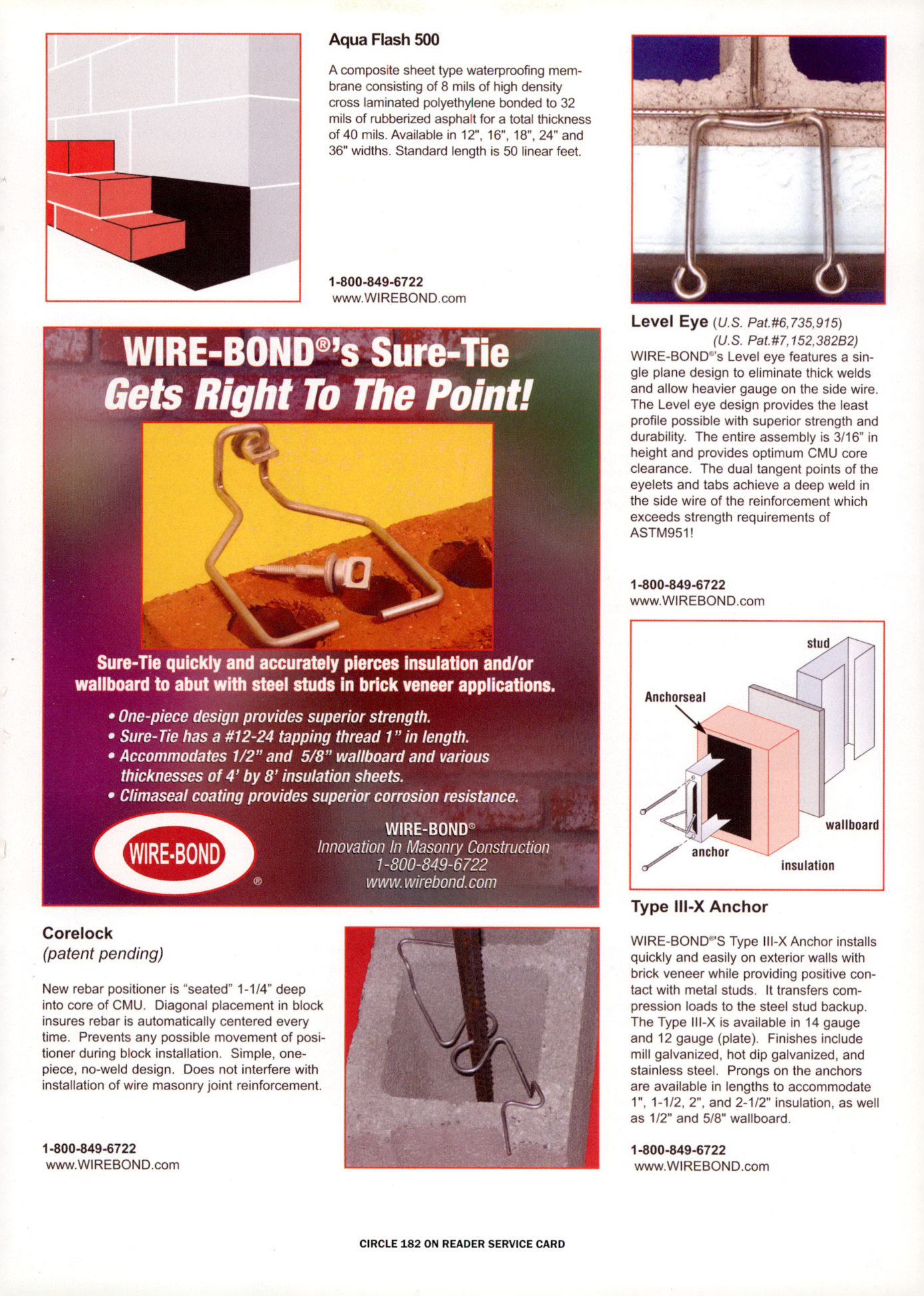

Masonry Magazine December 2008 Page. 17
Aqua Flash 500
A composite sheet type waterproofing membrane consisting of 8 mils of high density cross laminated polyethylene bonded to 32 mils of rubberized asphalt for a total thickness of 40 mils. Available in 12", 16", 18", 24" and 36" widths. Standard length is 50 linear feet.
1-800-849-6722
www.WIREBOND.com
WIRE-BOND®'s Sure-Tie
Gets Right To The Point!
Sure-Tie quickly and accurately pierces insulation and/or wallboard to abut with steel studs in brick veneer applications.
* One-piece design provides superior strength.
* Sure-Tie has a #12-24 tapping thread 1" in length.
* Accommodates 1/2" and 5/8" wallboard and various thicknesses of 4' by 8' insulation sheets.
* Climaseal coating provides superior corrosion resistance.
Corelock
(patent pending)
New rebar positioner is "seated 1-1/4" deep into core of CMU. Diagonal placement in block insures rebar is automatically centered every time. Prevents any possible movement of positioner during block installation. Simple, one-piece, no-weld design. Does not interfere with installation of wire masonry joint reinforcement.
1-800-849-6722
www.WIREBOND.com
Level Eye (U.S. Pat.#6,735,915)
(U.S. Pat.#7,152,38282)
WIRE-BOND's Level eye features a single plane design to eliminate thick welds and allow heavier gauge on the side wire. The Level eye design provides the least profile possible with superior strength and durability. The entire assembly is 3/16" in height and provides optimum CMU core clearance. The dual tangent points of the eyelets and tabs achieve a deep weld in the side wire of the reinforcement which exceeds strength requirements of ASTM951!
1-800-849-6722
www.WIREBOND.com
Type III-X Anchor
WIRE-BOND'S Type III-X Anchor installs quickly and easily on exterior walls with brick veneer while providing positive contact with metal studs. It transfers compression loads to the steel stud backup. The Type III-X is available in 14 gauge and 12 gauge (plate). Finishes include mill galvanized, hot dip galvanized, and stainless steel. Prongs on the anchors are available in lengths to accommodate 1", 1-1/2, 2", and 2-1/2" insulation, as well as 1/2" and 5/8" wallboard.
1-800-849-6722
www.WIREBOND.com
