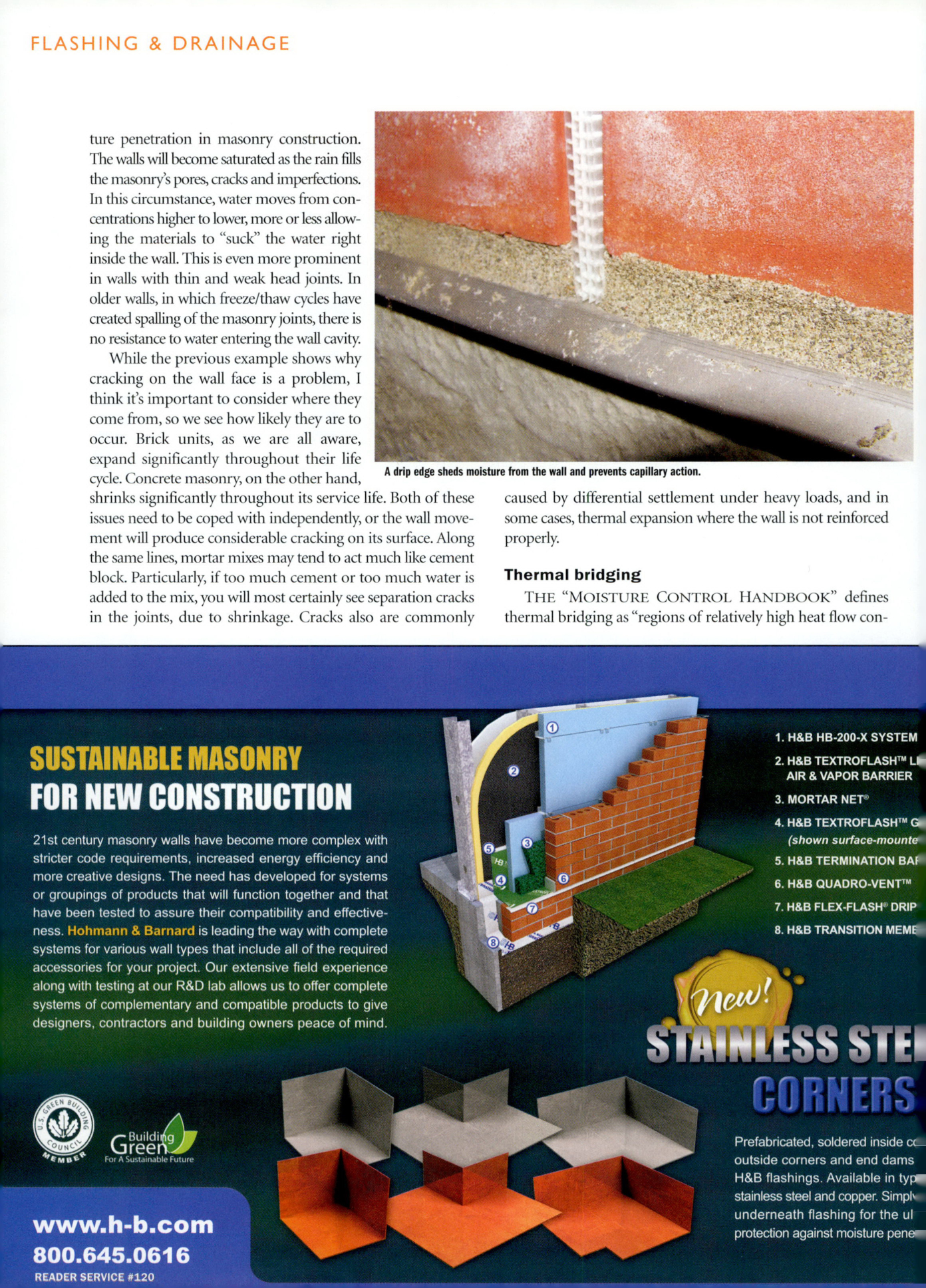

Masonry Magazine June 2010 Page. 20
FLASHING & DRAINAGE
ture penetration in masonry construction.
The walls will become saturated as the rain fills the masonry's pores, cracks and imperfections. In this circumstance, water moves from concentrations higher to lower, more or less allowing the materials to "suck" the water right inside the wall. This is even more prominent in walls with thin and weak head joints. In older walls, in which freeze/thaw cycles have created spalling of the masonry joints, there is no resistance to water entering the wall cavity.
While the previous example shows why cracking on the wall face is a problem, I think it's important to consider where they come from, so we see how likely they are to occur. Brick units, as we are all aware, expand significantly throughout their life cycle. Concrete masonry, on the other hand, shrinks significantly throughout its service life. Both of these issues need to be coped with independently, or the wall movement will produce considerable cracking on its surface. Along the same lines, mortar mixes may tend to act much like cement block. Particularly, if too much cement or too much water is added to the mix, you will most certainly see separation cracks in the joints, due to shrinkage. Cracks also are commonly caused by differential settlement under heavy loads, and in some cases, thermal expansion where the wall is not reinforced properly.
Thermal bridging
THE "MOISTURE CONTROL HANDBOOK" defines thermal bridging as "regions of relatively high heat flow con-
