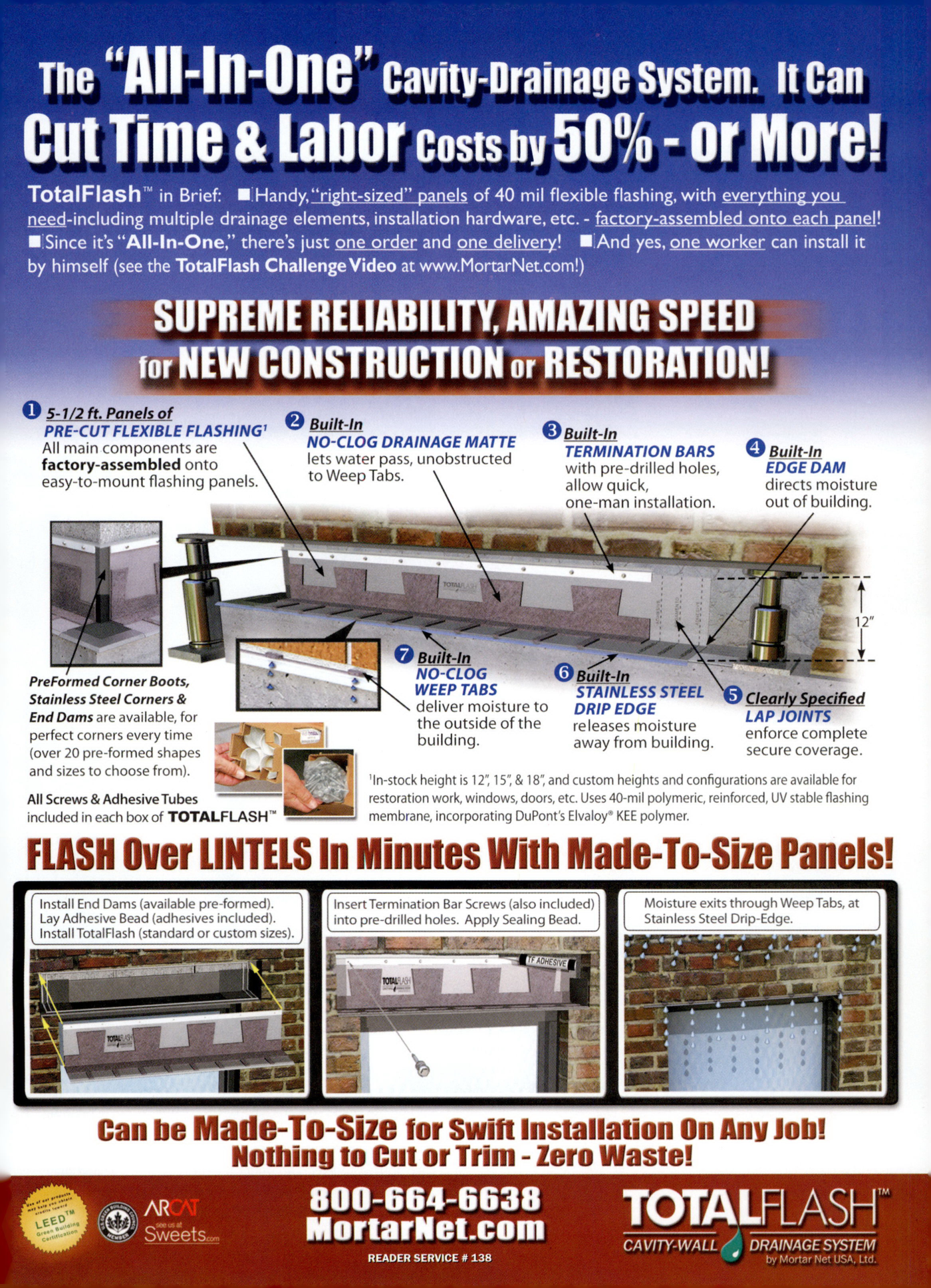

Masonry Magazine October 2010 Page. 19
The "All-In-One" Cavity-Drainage System. It Can Cut Time & Labor Costs by 50% - or More!
TotalFlash™ in Brief: Handy, "right-sized" panels of 40 mil flexible flashing, with everything you need-including multiple drainage elements, installation hardware, etc. factory-assembled onto each panel!
Since it's "All-In-One," there's just one order and one delivery! And yes, one worker can install it by himself (see the TotalFlash Challenge Video at www.MortarNet.com!)
SUPREME RELIABILITY, AMAZING SPEED for NEW CONSTRUCTION or RESTORATION!
5-1/2 ft. Panels of PRE-CUT FLEXIBLE FLASHING' All main components are factory-assembled onto easy-to-mount flashing panels.
Built-In NO-CLOG DRAINAGE MATTE lets water pass, unobstructed to Weep Tabs.
Built-In TERMINATION BARS with pre-drilled holes, allow quick, one-man installation.
Built-In EDGE DAM directs moisture out of building.
PreFormed Corner Boots, Stainless Steel Corners & End Dams are available, for perfect corners every time (over 20 pre-formed shapes and sizes to choose from). All Screws & Adhesive Tubes included in each box of TOTALFLASH"
Built-In NO-CLOG WEEP TABS deliver moisture to the outside of the building.
Built-In STAINLESS STEEL DRIP EDGE releases moisture away from building.
Clearly Specified LAP JOINTS enforce complete secure coverage. 'In-stock height is 12", 15", & 18", and custom heights and configurations are available for restoration work, windows, doors, etc. Uses 40-mill polymeric, reinforced, UV stable flashing membrane, incorporating DuPont's Elvaloy KEE polymer.
FLASH Over LINTELS In Minutes With Made-To-Size Panels!
Install End Dams (available pre-formed). Lay Adhesive Bead (adhesives included). Install TotalFlash (standard or custom sizes).
Insert Termination Bar Screws (also included) into pre-drilled holes. Apply Sealing Bead.
Moisture exits through Weep Tabs, at Stainless Steel Drip-Edge.
Can be Made-To-Size for Swift Installation On Any Job!
Nothing to Cut or Trim - Zero Waste!
800-664-6638
MortarNet.com
READER SERVICE #138
TOTALFLASH
CAVITY-WALL
DRAINAGE SYSTEM
by Mortar Net USA, Ltd.
