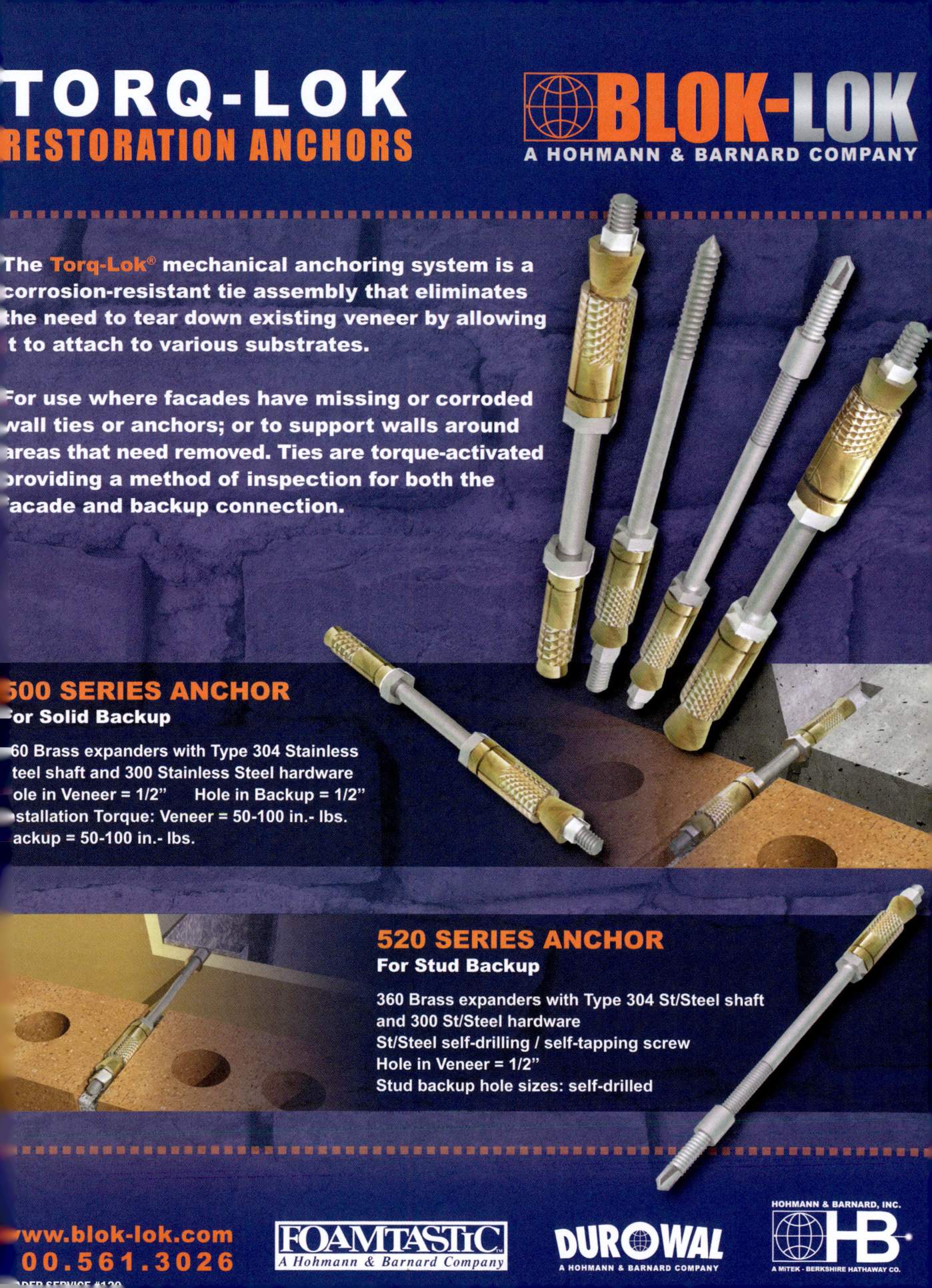

Masonry Magazine April 2011 Page. 17
TORQ-LOK
RESTORATION ANCHORS
OBLOK-LOK
A HOHMANN & BARNARD COMPANY
The Torq-Lok mechanical anchoring system is a corrosion-resistant tie assembly that eliminates the need to tear down existing veneer by allowing it to attach to various substrates.
For use where facades have missing or corroded wall ties or anchors; or to support walls around areas that need removed. Ties are torque-activated providing a method of inspection for both the Facade and backup connection.
500 SERIES ANCHOR
For Solid Backup
60 Brass expanders with Type 304 Stainless steel shaft and 300 Stainless Steel hardware. Hole in Veneer = 1/2" Hole in Backup = 1/2" Installation Torque: Veneer = 50-100 in.- lbs. Backup = 50-100 in.- lbs.
520 SERIES ANCHOR
For Stud Backup
360 Brass expanders with Type 304 St/Steel shaft and 300 St/Steel hardware. St/Steel self-drilling/self-tapping screw. Hole in Veneer = 1/2" Stud backup hole sizes: self-drilled
www.blok-lok.com
800.561.3026
