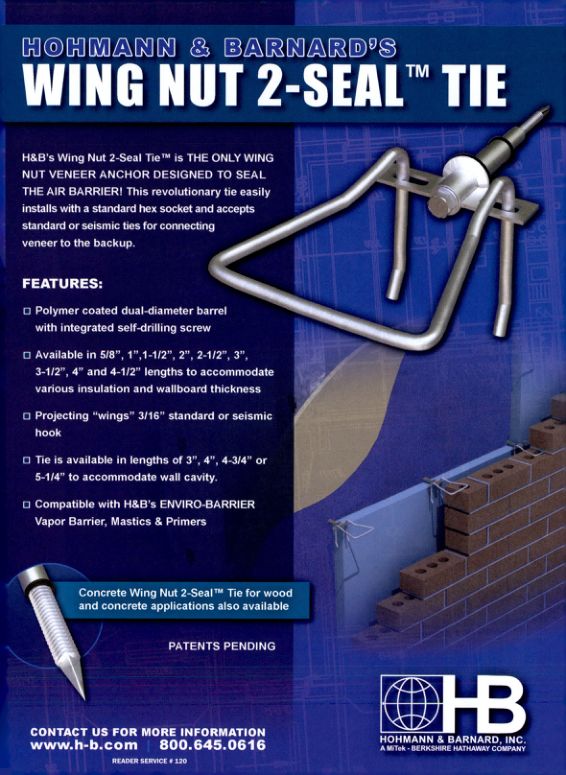

Masonry Magazine September 2012 Page. 15
HOHMANN & BARNARD'S
WING NUT 2-SEAL™ TIE
H&B's Wing Nut 2-Seal Tie™ is THE ONLY WING NUT VENEER ANCHOR DESIGNED TO SEAL THE AIR BARRIER! This revolutionary tie easily installs with a standard hex socket and accepts standard or seismic ties for connecting veneer to the backup.
FEATURES:
Polymer coated dual-diameter barrel with integrated self-drilling screw.
Available in 5/8", 1", 1-1/2", 2", 2-1/2", 3", 3-1/2", 4" and 4-1/2" lengths to accommodate various insulation and wallboard thickness.
Projecting "wings" 3/16" standard or seismic hook.
Tie is available in lengths of 3", 4", 4-3/4" or 5-1/4" to accommodate wall cavity.
Compatible with H&B's ENVIRO-BARRIER Vapor Barrier, Mastics & Primers.
Concrete Wing Nut 2-Seal™ Tie for wood and concrete applications also available.
PATENTS PENDING
CONTACT US FOR MORE INFORMATION
www.h-b.com
800.645.0616
READER SERVICE 120
HB
HOHMANN & BARNARD, INC.
A MiTek-BERKSHIRE HATHAWAY COMPANY
