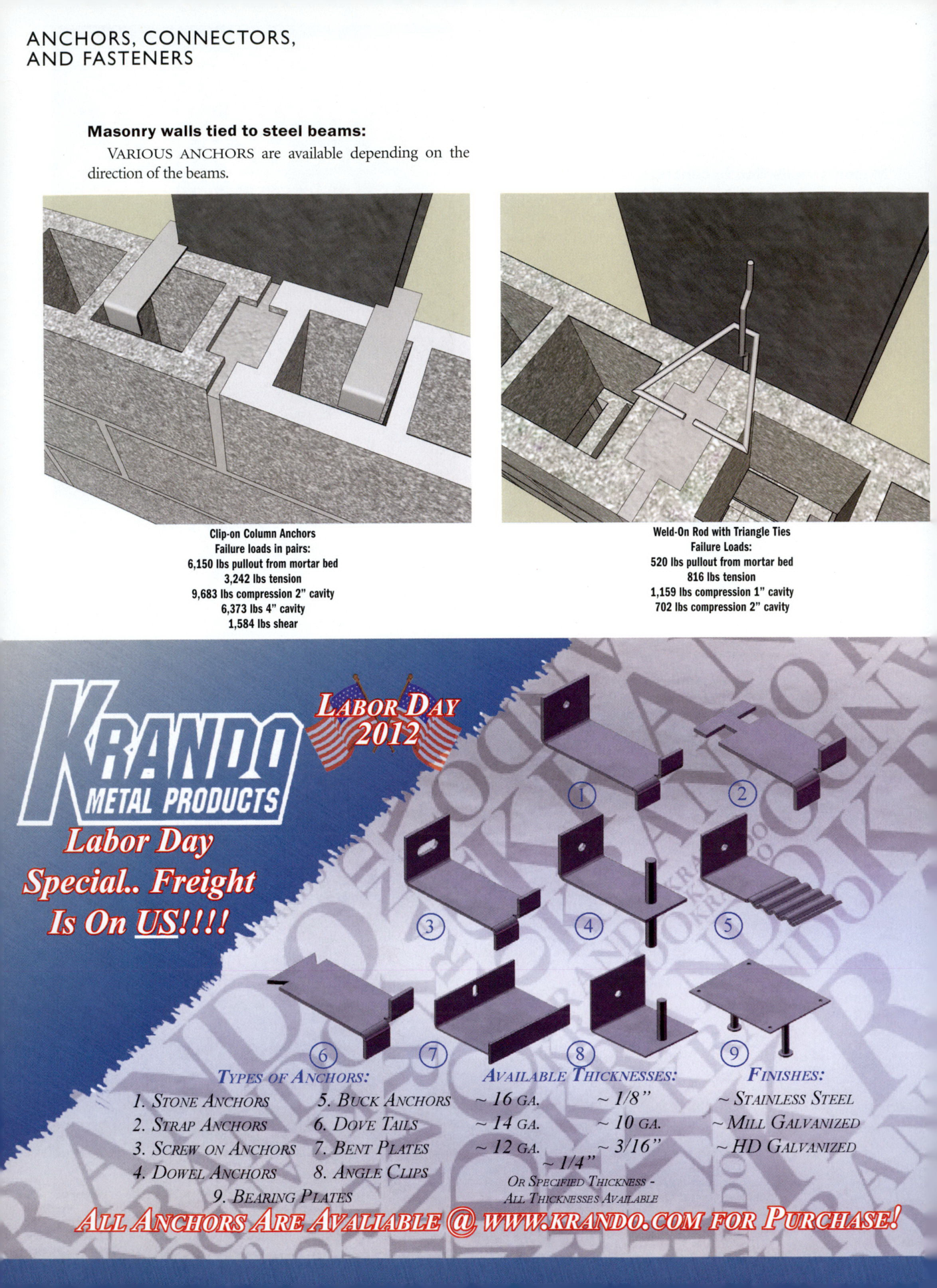

Masonry Magazine September 2012 Page. 18
ANCHORS, CONNECTORS, AND FASTENERS
Masonry walls tied to steel beams: VARIOUS ANCHORS are available depending on the direction of the beams.
# Clip-on Column Anchors
Failure loads in pairs:
* 6,150 lbs pullout from mortar bed
* 3,242 lbs tension
* 9,683 lbs compression 2" cavity
* 6,373 lbs 4" cavity
* 1,584 lbs shear
# Weld-On Rod with Triangle Ties
Fallure Loads:
* 520 lbs pullout from mortar bed
* 816 Its tension
* 1,159 lbs compression 1" cavity
* 702 lbs compression 2" cavity
KRANDO METAL PRODUCTS
Labor Day Special.. Freight Is On US!!!! LABOR DAY 2012
# TYPES OF ANCHORS:
1. STONE ANCHORS
2. STRAP ANCHORS
3. SCREW ON ANCHORS
4. DOWEL ANCHORS
5. BUCK ANCHORS
6. DOVE TAILS
7. BENT PLATES
8. ANGLE CLIPS
9. BEARING PLATES
# AVAILABLE THICKNESSES:
* 16 GA.
* 1/8"
* 14 GA.
* 10 GA.
* 12 GA.
* 3/16"
* 1/4"
* OR SPECIFIED THICKNESS- ALL THICKNESSES AVAILABLE
# FINISHES:
* STAINLESS STEEL
* MILL GALVANIZED
* HD GALVANIZED
ALL ANCHORS ARE AVALIABLE@WWW.KRANDO.COM FOR PURCHASE!
