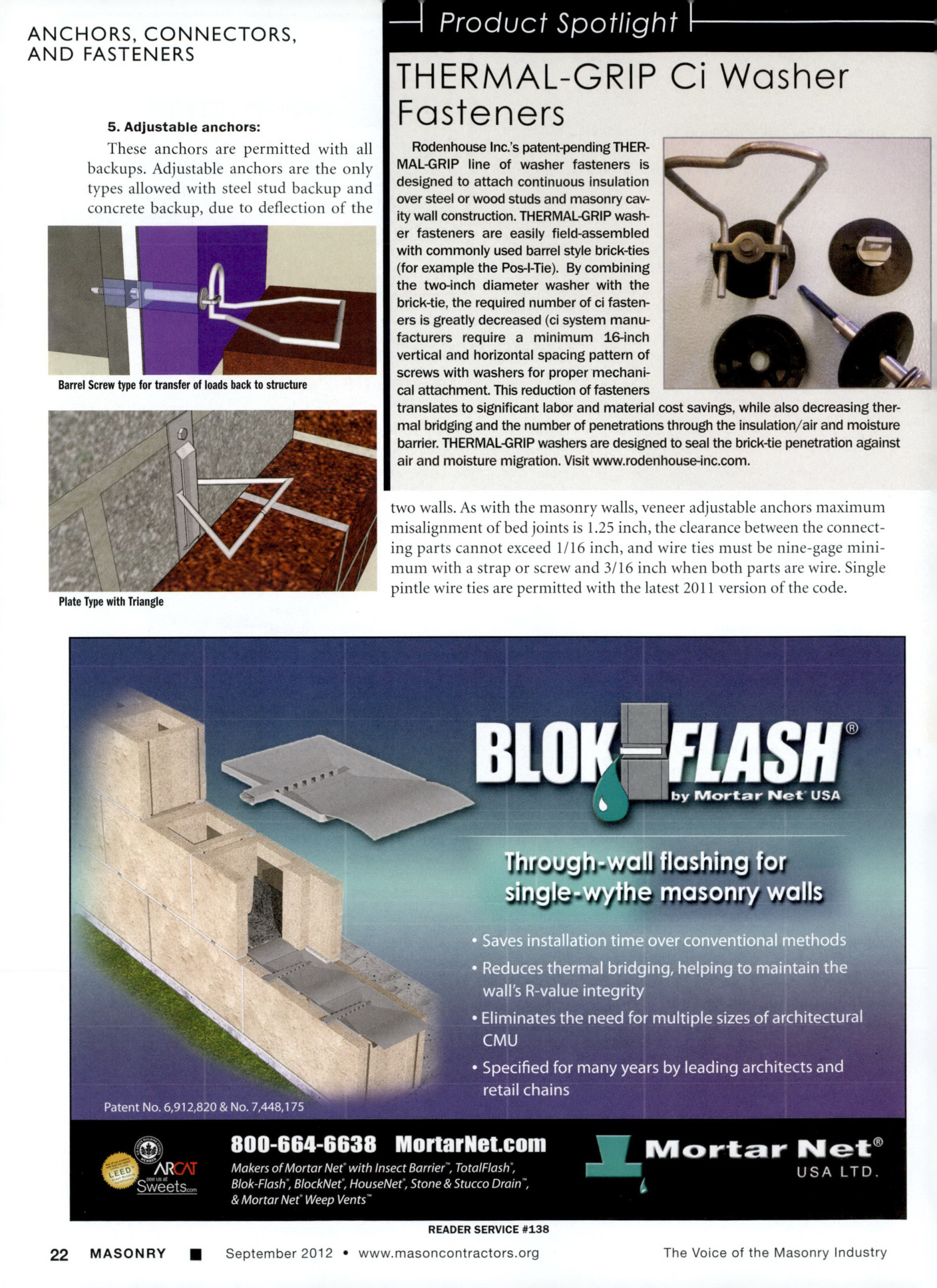

ANCHORS, CONNECTORS, AND FASTENERS
Adjustable anchors: These anchors are permitted with all backups. Adjustable anchors are the only types allowed with steel stud backup and concrete backup, due to deflection of the
Barrel Screw type for transfer of loads back to structure
Plate Type with Triangle
two walls. As with the masonry walls, veneer adjustable anchors maximum misalignment of bed joints is 1.25 inch, the clearance between the connecting parts cannot exceed 1/16 inch, and wire ties must be nine-gage minimum with a strap or screw and 3/16 inch when both parts are wire. Single pintle wire ties are permitted with the latest 2011 version of the code.
Product Spotlight
THERMAL-GRIP Ci Washer Fasteners
Rodenhouse Inc.'s patent-pending THERMAL-GRIP line of washer fasteners is designed to attach continuous insulation over steel or wood studs and masonry cavity wall construction. THERMAL-GRIP washer fasteners are easily field-assembled with commonly used barrel style brick-ties (for example the Pos-I-Tie). By combining the two-inch diameter washer with the brick-tie, the required number of ci fasteners is greatly decreased (ci system manufacturers require a minimum 16-inch vertical and horizontal spacing pattern of screws with washers for proper mechanical attachment. This reduction of fasteners translates to significant labor and material cost savings, while also decreasing thermal bridging and the number of penetrations through the insulation/air and moisture barrier. THERMAL-GRIP washers are designed to seal the brick-tie penetration against air and moisture migration. Visit www.rodenhouse-inc.com.
Through-wall flashing for single-wythe masonry walls
• Saves installation time over conventional methods
• Reduces thermal bridging, helping to maintain the wall's R-value integrity
• Eliminates the need for multiple sizes of architectural CMU
• Specified for many years by leading architects and retail chains
800-664-6638 MortarNet.com
Makers of Mortar Net with Insect Barrier", TotalFlash", Blok-Flash, BlockNet, HouseNet, Stone & Stucco Drain", & Mortar Net Weep Vents"
