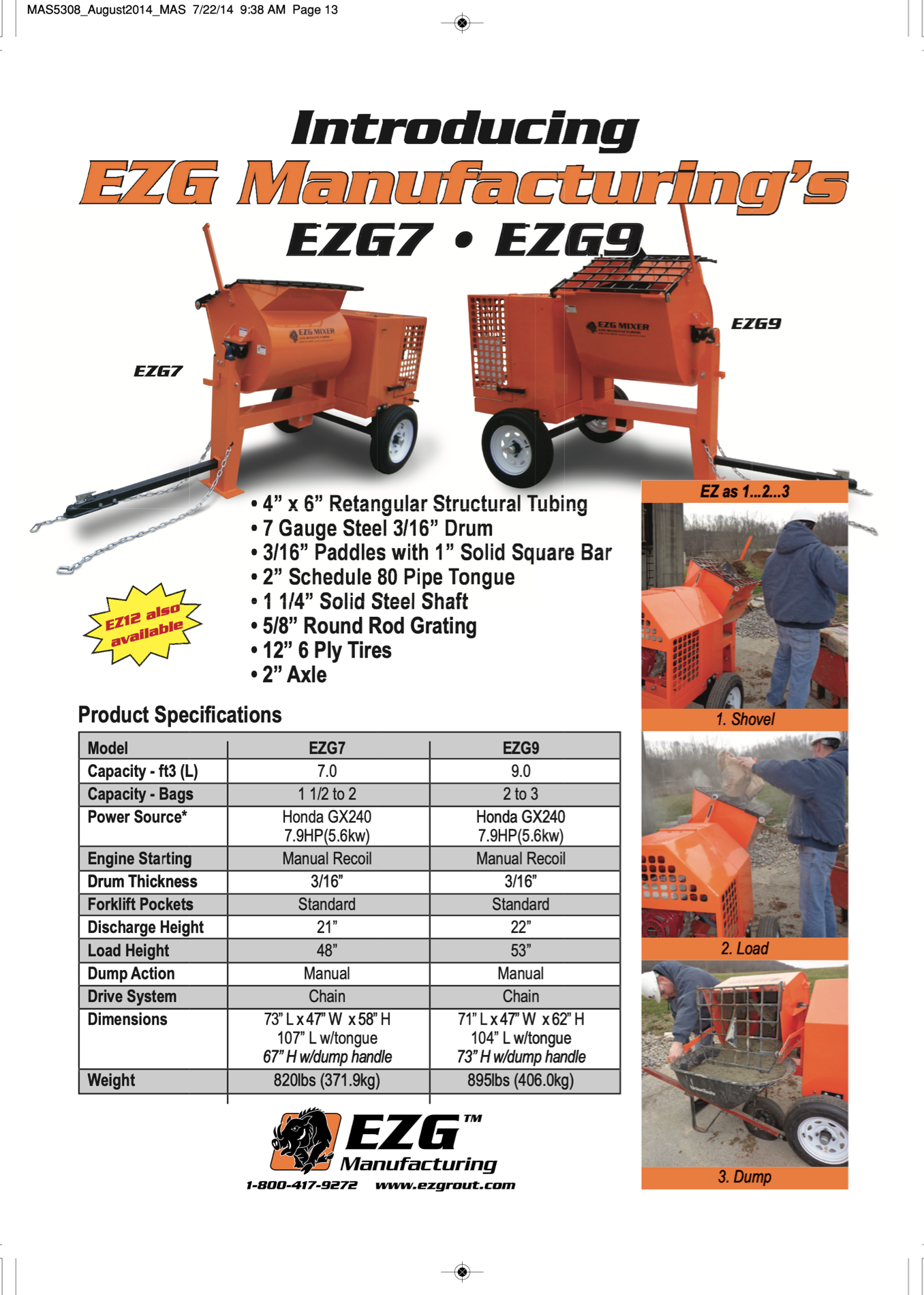

Masonry Magazine August 2014 Page. 15
MAS5308_August2014_MAS 7/22/14 9:38 AM Page 13
j
CJ
EZli7 � EZ
EZli9
EZ&7
� 4" x 6" Retangular Structural Tubing
�
7 Gauge Steel 3/16" Drum
�
3/16" Paddles with 1" Solid Square Bar
�
2" Schedule 80 Pipe Tongue
�
11/4" Solid Steel Shaft
�
5/8" Round Rod Grating
r
� 12" 6 Ply Tires � 2" Axle
Product Specifications
Model Capacity -ft3 (L) Capacity -Bags Power Source*
Engine Starting Drum Thickness Forklift Pockets Discharge Height Load Height Dump Action Drive System Dimensions
Weight
EZG7
7.0 11/2 to 2 Honda GX240 7.9HP(5.6kw) Manual Recoil 3/16" Standard 21 "
48"
Manual Chain 73"Lx47' W x 58"H
107" L w/tongue
67" H wldump handle
8201bs (371.9kg}
EZG9
9.0 2 to 3 Honda GX240 7.9HP(5.6kw) Manual Recoil 3/16" Standard 22" 53" Manual Chain 71"Lx4rW x62"H
104" L w/tongue
73" H wldump handle
8951bs (406.0kg}
EZ&�
ManuFacturing
3. Dump
t-BDD-4t7-9i!7i! 11NWW.ezgraut.can1
