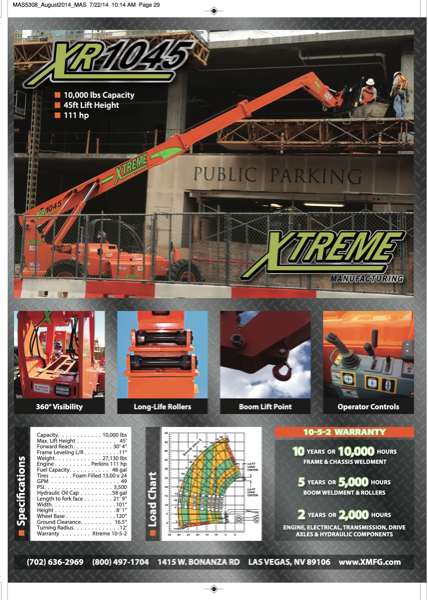

Masonry Magazine August 2014 Page. 31
j
MAS5308_August2014_MAS 7/22/14 10:14 AM Page 29
PU
�
Capacity. . .......... 10,000 lbs Max. Lift Height . . . . . . . . . . . 45' Forward Reach ........... 30' 4" Frame leveling UR ..........11 � Weight............. 27,130 lbs
2.0f'T
Engine .......... Perkins 111 hp Fuel Capacity. . . . . . . . . . . 48 gal t---+--'i'-t"-f?ltf'"Ol~~5.t~ ~ Tires ...... Foam Filled 13.00 x 24 GPM ................... 49 PSI. .................. 3,500 Hydraulic Oil Cap .........58 gal Length to fork face . . . . . . . . 21 ' 9" Width..................101" Height .................8' 1" Wheel Base ..............120" ' 0 Ground Clearance ........ . 16.5" � < � Turning Radius.............12' Warranty ........ Xtreme 10-5-2
l.S 30 1S 20 15 10 S
