Marvelous Masonry: Potala Palace

Words: Cass Stern
Photos: atosan, darrensp, bjdlzx, lin7, Zhang mengyang, Shawnlio, chuyu, lzf, YINYI WANG, Dmitrii Pichugin, LUHUANFENG, Hung_Chung_Chih, Bim, rweisswald

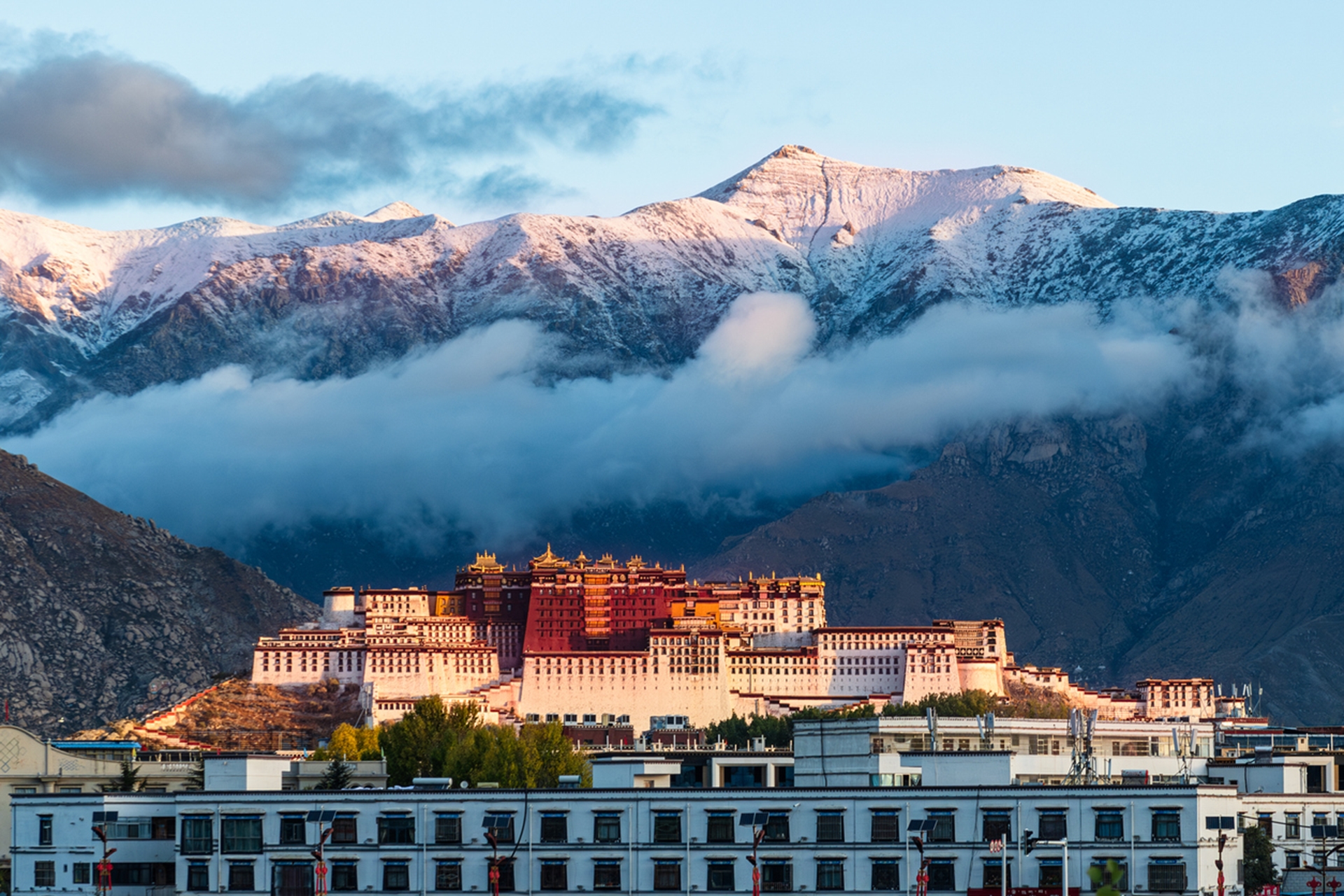

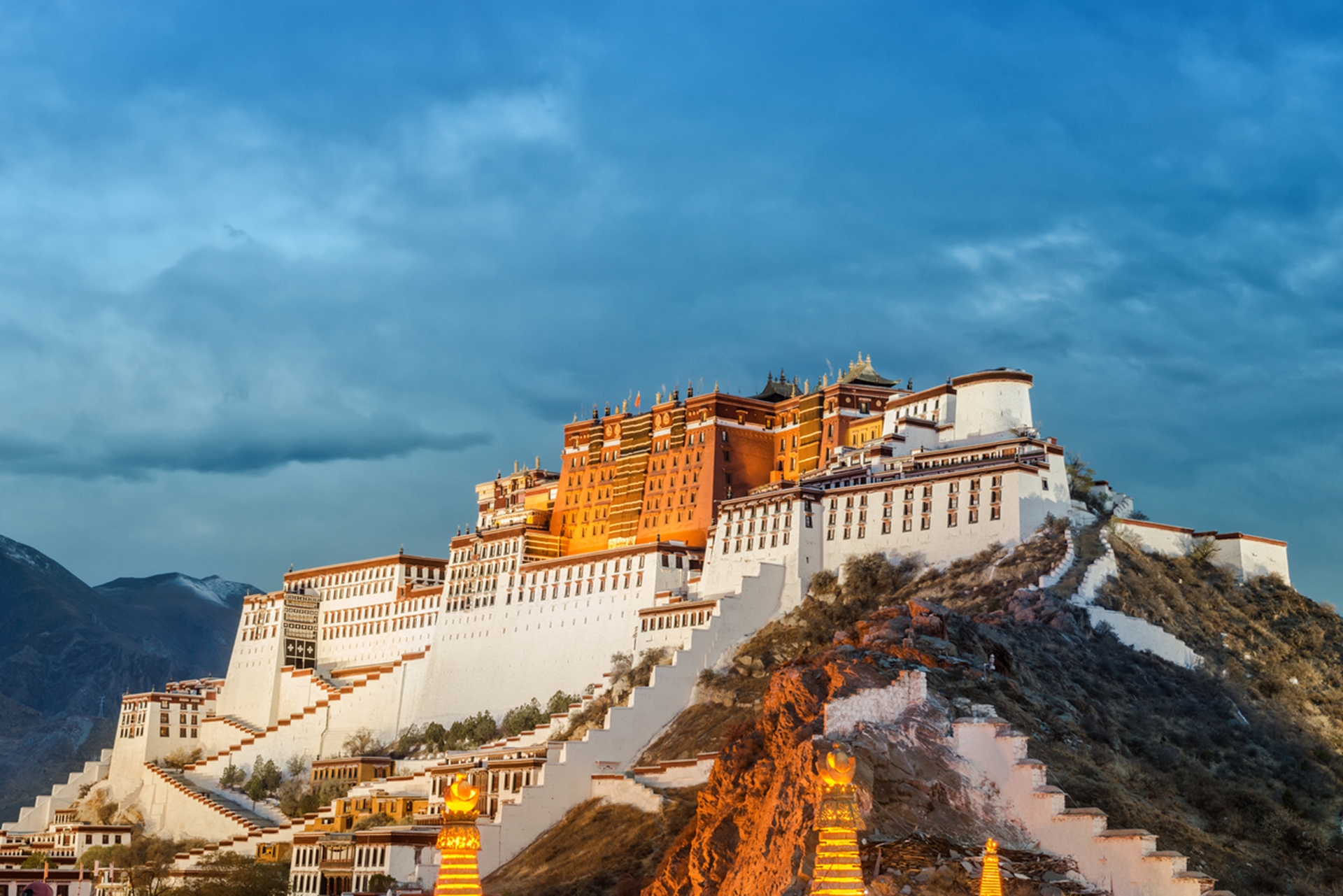

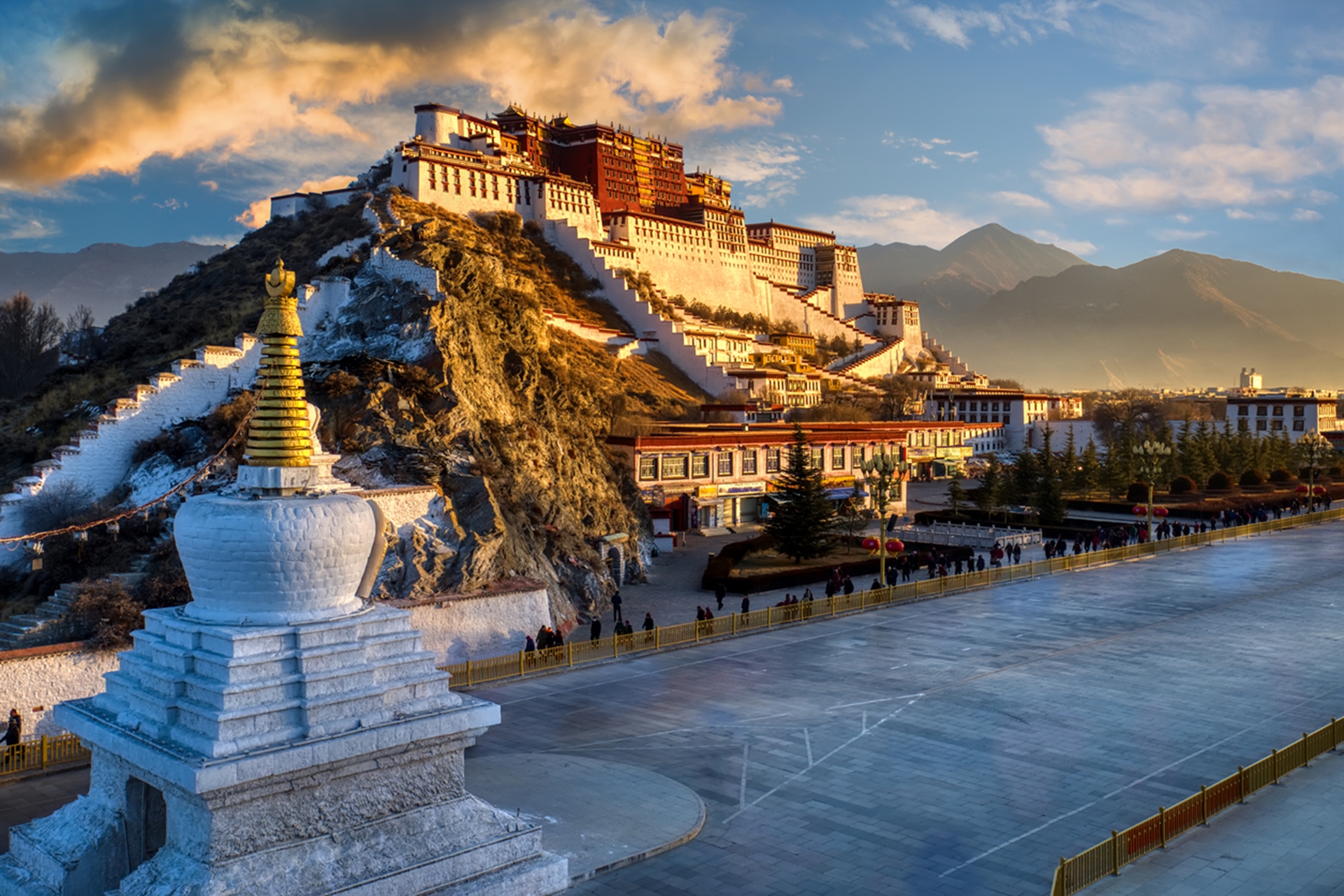

Perched more than 12,000 feet above sea level on Red Mountain in Lhasa, Tibet, the Potala Palace stands as one of the world’s most remarkable masonry structures. Its enduring resilience not only represents an architectural achievement but also a living case study in time-tested building techniques, material resilience, and the lasting value of traditional craftsmanship, inspiring professionals in the masonry construction industry.

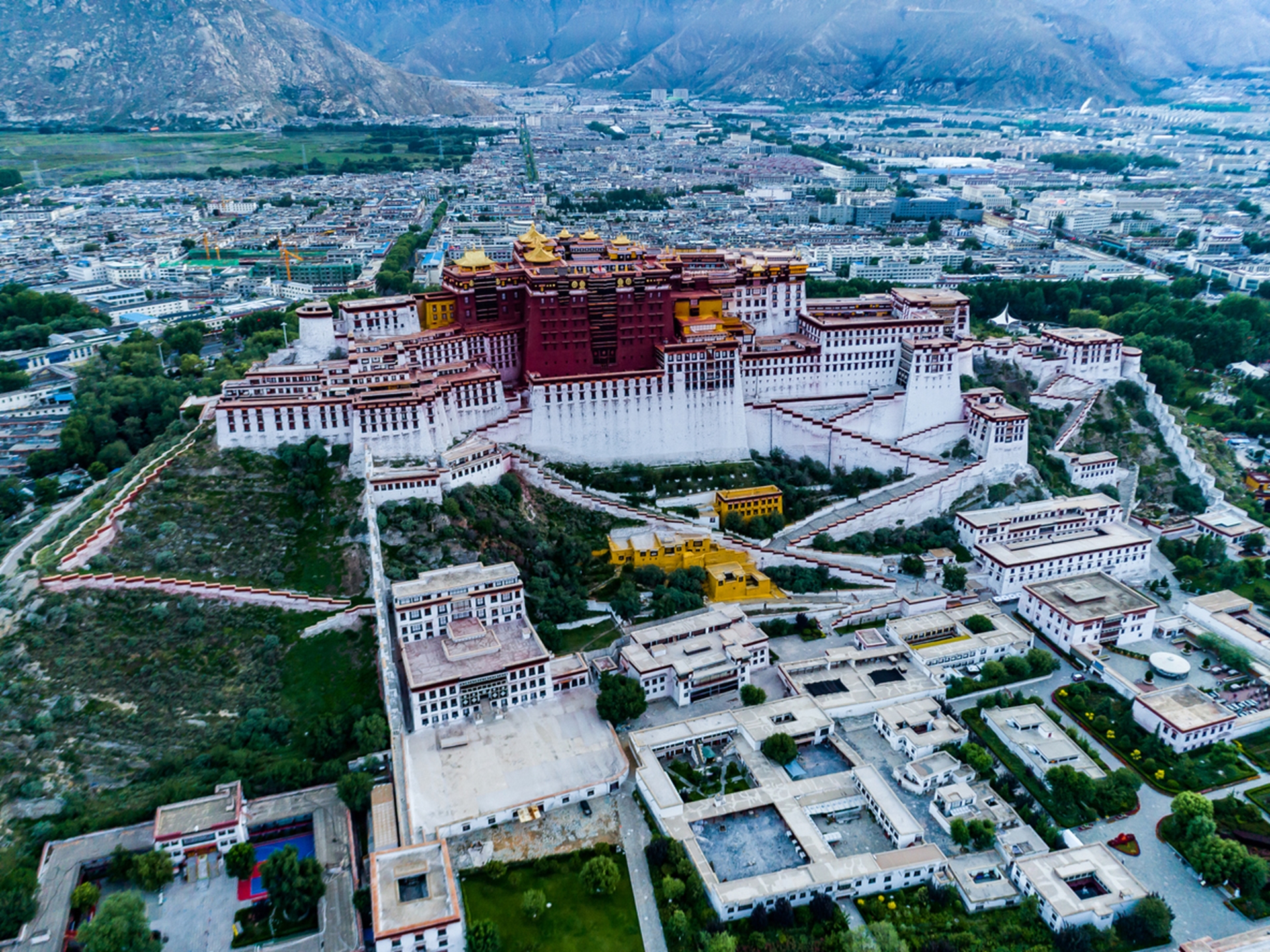

Although the site was initially developed in the 7th century, the palace as it exists today was largely rebuilt in the 17th century under the Fifth Dalai Lama. Rising 13 stories and encompassing over 1,000 rooms, the Potala was constructed using local materials, such as rammed earth and stone, which were selected for their durability and adaptability to the region’s extreme conditions. These components were combined with techniques refined over centuries by Tibetan builders, who understood how to balance structural mass, thermal performance, and seismic resistance without the aid of modern equipment.

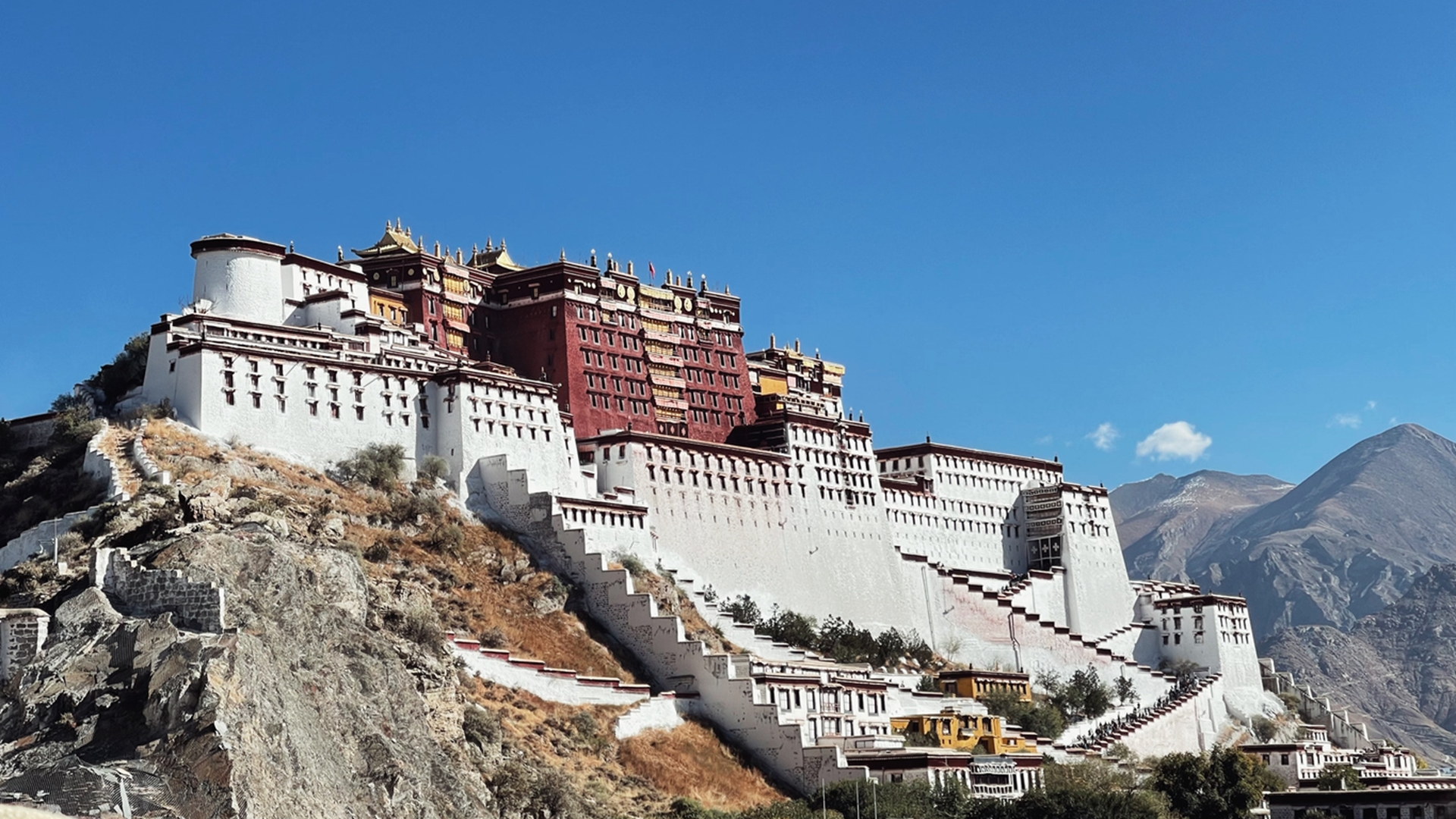

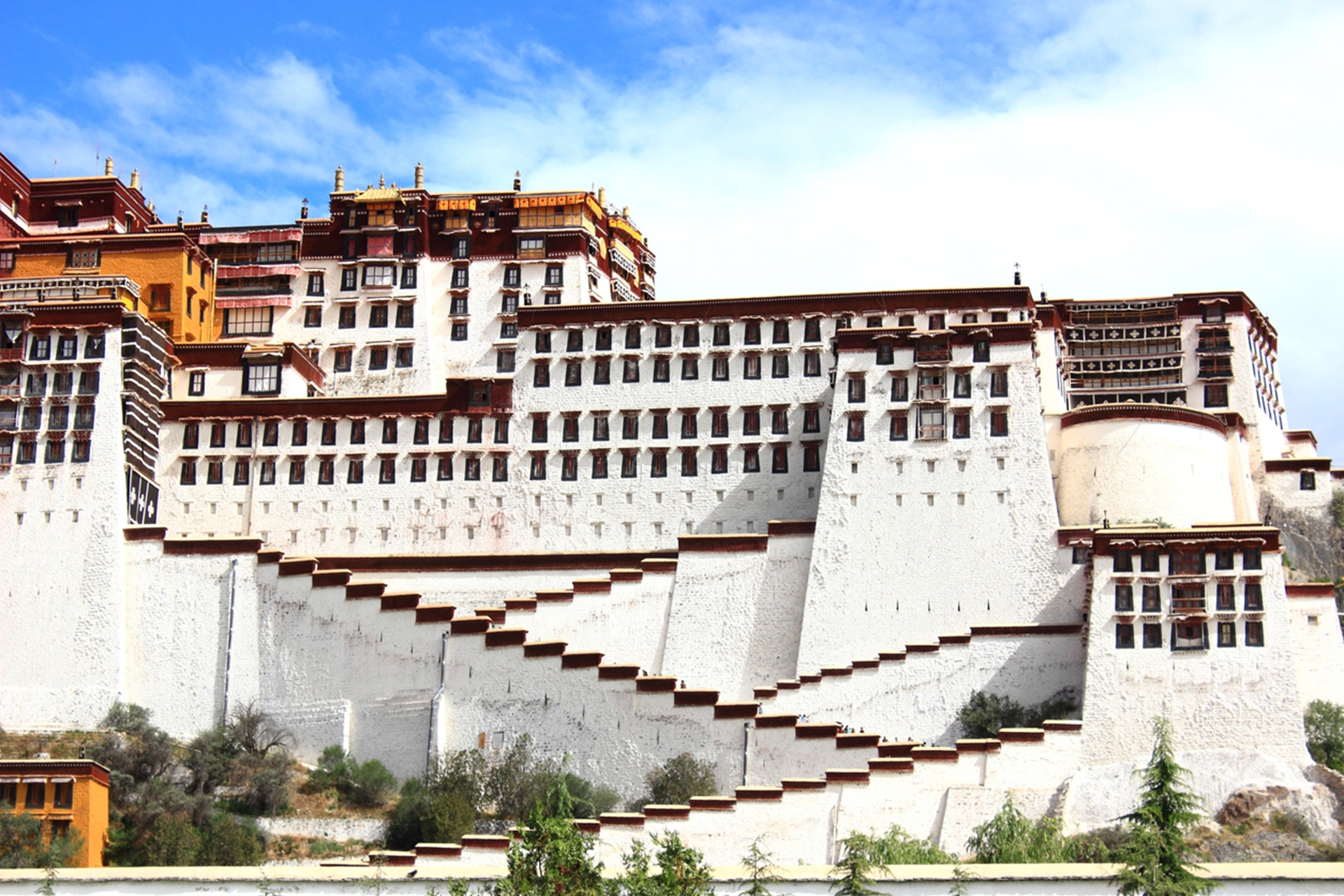

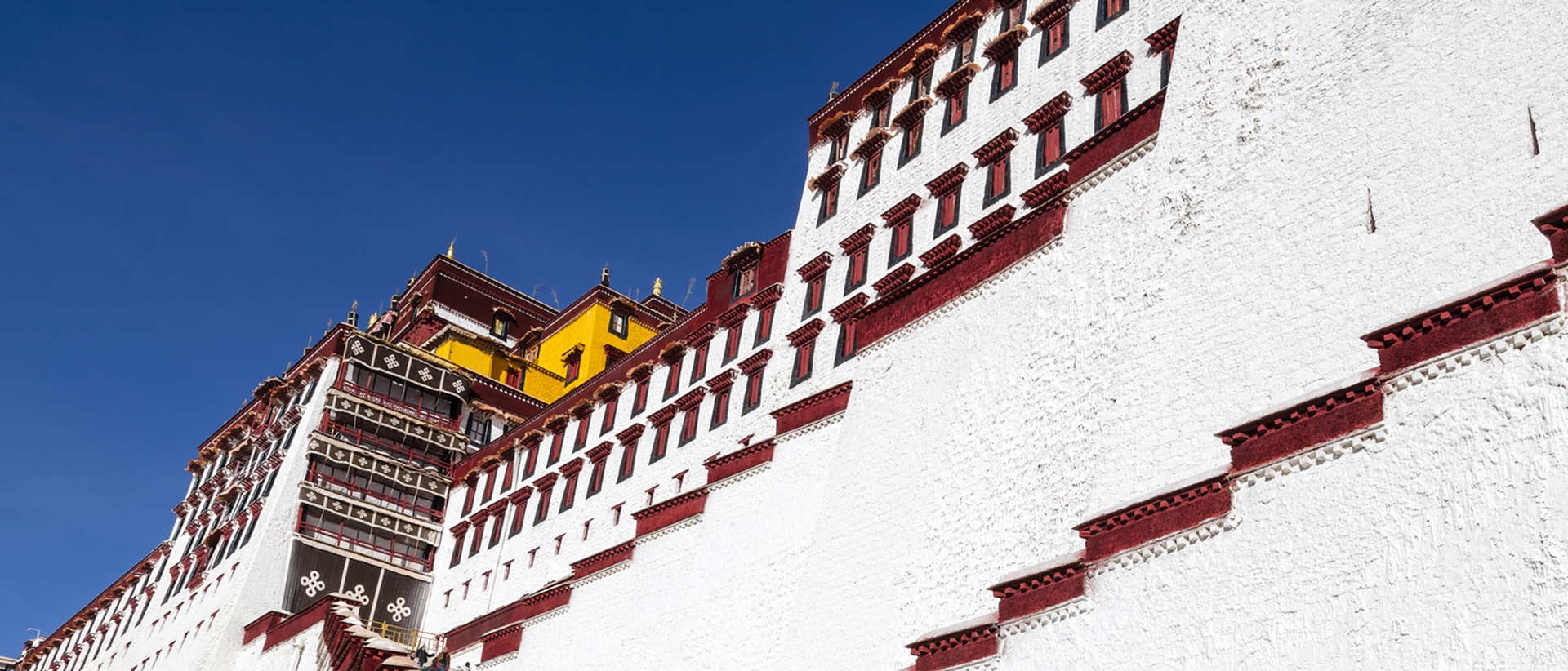

The masonry of the Potala Palace is monumental in scale and ambition. Its walls, made primarily of hand-cut granite and gneiss, are up to 16 feet thick at their base and taper as they rise. This not only gives the building its imposing profile but also provides exceptional strength and stability. The builders employed dry stone masonry methods in many areas, using mud mortar for flexibility and bonding, and strategically embedded horizontal timber beams at various heights to help the structure flex under seismic stress. These methods are as much about engineering as they are about intuition, developed through generations of empirical observation and practical refinement.

What is especially notable about these traditional techniques is their longevity. Many sections of the palace have survived for hundreds of years with minimal intervention, enduring frequent seismic activity, dramatic temperature swings, and the relentless effects of time and weather. The thick stone walls are a passive form of environmental control, moderating interior temperatures by storing heat during the day and releasing it at night. Lime-based plasters applied to exposed surfaces enhance moisture resistance and durability, while thoughtful building orientation and natural ventilation patterns improve indoor air quality without the need for mechanical systems.

This is architecture that adapts to its environment, rather than imposing itself upon it. For today’s masonry professionals, it offers a wealth of insights. The Potala Palace demonstrates the effectiveness of material synergy: the strategic combination of stone, wood, and earth illustrates the importance of designing structures in harmony with their climate and topography. It’s a reminder that masonry is not
merely a matter of materials, but of systems, driving home the importance of how each element works in concert to create a durable, integrated whole.

Preservation of the Potala Palace has been an ongoing challenge and a subject of considerable international interest. In the 1980s and again in the early 2000s, the Chinese government funded major restoration campaigns aimed at stabilizing the structure without compromising its historical integrity. These efforts required not only a deep understanding of the original construction methods but also a sensitivity to the site's visual and cultural significance. Contractors and restoration teams worked to replicate traditional masonry techniques, often using original or locally sourced materials. Stone blocks were shaped by hand to match historical profiles. Mortars were recreated based on chemical analysis of centuries-old samples to ensure compatibility with the existing masonry. The restoration process was not without its challenges, from sourcing the right materials to training artisans in traditional techniques, but the result is a testament to the enduring value of these methods.

While modern technologies such as laser scanning, ground-penetrating radar, and vibration sensors have been used to monitor the structure and assess areas of weakness, they have not replaced the hands-on expertise of skilled masons. The restoration process remains a labor-intensive endeavor. Artisans must be able to identify stone types by feel, judge mortar mixes by smell and texture, and lay each block with the care required to preserve not just structural function but aesthetic continuity. These are skills that cannot be automated. However, the use of modern technologies has significantly improved the efficiency and accuracy of the restoration work, demonstrating the potential for a harmonious blend of tradition and innovation in the field of masonry.

For contractors and material suppliers involved in masonry today, the lessons of Potala Palace are both practical and philosophical. They offer a wealth of insights, from the importance of investing in craftsmanship to the structural necessity of training the next generation of masons. Second, restoration and preservation work demands authenticity. Cutting corners with incompatible materials or techniques may offer short-term fixes but often lead to long-term degradation. The Potala’s preservation has demonstrated that when repairs are carried out with care, using materials and methods aligned with the original construction, the result is more durable and less intrusive, instilling a sense of reassurance and confidence in the restoration process.

Ultimately, the palace underscores the importance of documentation. Restoration teams working on Potala have relied heavily on detailed records, such as visual surveys, hand drawings, structural assessments, and chemical analyses to guide their work. In any masonry project, keeping thorough records of construction techniques, material sources, and design decisions is vital, especially when planning for future maintenance, inspections, or repairs.

In a fast-paced construction landscape often focused on speed and cost efficiency, the Potala Palace stands as a counterpoint: a structure that was built to last, not just to meet a deadline. It embodies an ethos of building with care, foresight, and respect for materials: a mindset that modern contractors can apply whether they’re working on a cultural landmark or a contemporary office building.
