Natural Bond: Mortar, Natural Stone and the Mason

Words: Dan KamysNovember 2014

Natural Stone

Natural Bond: Mortar, Natural Stone and the Mason

Desert Mountain golf community residence

The Sonoran Desert is considered one of the hottest deserts in North America, but tucked into the rolling hills and dramatic scenery of north Scottsdale, Ariz., sits one of the coolest natural stone residences imaginable. Nestled into one of the many hillsides near the Desert Mountain golf community is a secluded, 12,000-square-foot private residence. It was designed to include a variety of indigenous, natural schist and granite stones to artfully combine the qualities of the surrounding desert.

The residence was designed by project architect Craig Brown of Craig E. Brown & Associates, Fountain Hills, Ariz. The masonry work, both vertical and horizontal, was installed by Sutter Masonry Inc., El Mirage, Ariz. The home is positioned at 3,500 feet above sea level to take full advantage of unlimited panoramic views of the neighboring mountains that serve as the backdrop for spectacular sunrises and sunsets.

According to Brown, who worked closely with the owners, both of whom are general contractors, the site already contains its design. “The creative task of the artists, designers and architects was to make the invisible visible,” said Brown. “Using natural stone as the major exterior and interior material for walls, fireplaces, floor and patio decks, in combination with wood, stucco and copper, was the only choice to bring the manmade into this beautiful natural setting.”

Desert Mountain golf community residence

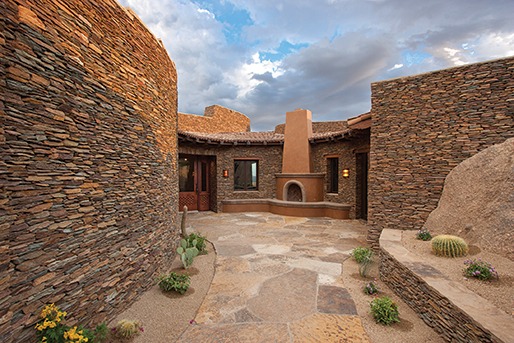

Utilizing the mountain’s solid granite and natural granite boulder outcroppings to compliment the home’s theme, it features curving walls that were designed to maximize the scenic views of the area.

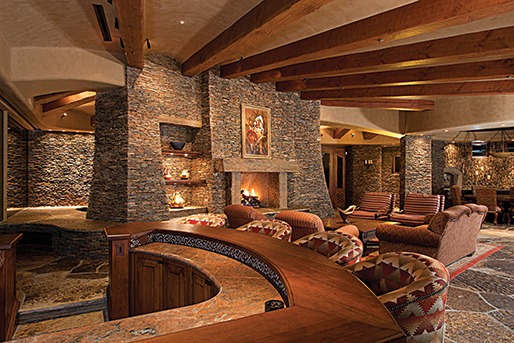

“Natural schist stone was quarried in Mayer, Ariz., into six-inch-thick veneer, blending together various natural colors,” said Brown. “It was dry stacked and laid horizontally for the walls and fireplaces, and then switched to vertical on the walls in the main dining room. Natural stone is also laid in random patterns for the floors, patio decks and stairways.

One of the highlights of the home is its exterior and interior theme, where schist stones were laid in such a manner that they almost look staggered to create a rugged, imperfect look. Thousands upon thousands of schist stones were custom cut and fitted to adhere to the inside and outside of the structure, utilizing 450 3,000-pound bulk bags – or 1.3 million pounds – of SPEC MIX’s Colored Building Stone Mortar.

Desert Mountain golf community residence“This residence is one of my favorite natural stone projects we’ve been privileged to build,” said Mike Sutter, CEO of Sutter Masonry Inc. “Aside from the overall size of the project, the two most challenging aspects of the installation were the amount of stone used – both inside and outside – and applying the mortar and stone on the curved walls, arches and slopes.”

Sutter went on to describe his masons’ technique: “They used a full depth mortar bed of colored SPEC MIX Building Stone Mortar to set the stone, resulting in a thin bed joint between the units, which perfectly matched the specified color and the stone.”

Sutter’s brother and project superintendent, Jack, has worked on numerous natural stone custom residential projects in the Phoenix valley. He is a major advocate of SPEC MIX mortars. “I use SPEC MIX Building Stone Mortar on all of my full-depth stone jobs,” he said. “You getter better production with this mortar, and it cleans off the face of the natural stone better. If we use regular Portland and lime mixes, there can be excessive lime stains left on the face of the stone. With SPEC MIX Building Stone Mortar we don’t get that.”

Desert Mountain golf community residence

SPEC MIX Building Stone Mortar is the only pre-blended, specially formulated mortar produced for stone masons building full-depth natural stone walls. The product is engineered to match the specific properties of each stone to increase the mortar-to-stone bond strength and maximize a mason’s productivity.

With all mix constituents and pigment pre-weighed and bagged, Sutter’s jobsite laborer simply loaded the SPEC MIX G7000 Silo System with 3,000-pound bulk bags. With the silo full, either the laborer or lift operator was able to charge the mortar mixer and add the appropriate water demand for the desired consistency of the masons installing the stone. In the case of the schist stone, Sutter Masonry used a thick mortar bed to place the stone in both horizontal and vertical (soldier) fashion, as specified by Brown.

Jack speaks to the company’s earlier years: “Back in the old days, mixing the bags of cement and lime together with sand was never consistent. Now with the SPEC MIX products especially their colored mortars, every batch is the same, which is better for the guys to work with and we deliver a better masonry building to the owner.”

In all, the project took three years to complete, with close to 30,000 man hours of work. The concrete masonry crew that dealt with the concrete base work on the home consisted of 25 masons and mason tenders. The crew worked more than 7,000 collaborative hours on the home. The stone crew worked on all interior and exterior stone applications, and consisted of 31 masons and mason tenders who worked more than 21,000 collaborative hours to make the house a dream come true for its owners.

Sutter Masonry also builds countless projects whereby the architect has selected natural, thin cut stone applied over concrete or CMU to achieve a certain aesthetic appeal. “On natural, thin cut stone veneer jobs, my crews use nothing but SPEC MIX Polymer Modified Stone Veneer Mortar – I love the product,” said Sutter. “Our daily production with this mortar is incredible; once the stone makes contact with the mortar on the wall, it sticks and you move on to the next stone.”
