Case Study: Cleaning the Nebraska State Capitol

Words: Dan KamysNovember 2014

Natural Stone

Case Study: Cleaning the Nebraska State Capitol

Nebraska State Capitol

For years preservationists have had to rely on invasive and labor-intensive techniques to clean masonry structures. With the recent restoration projects at the Nebraska State Capitol, preservation staff looked for the latest developments in masonry cleaning. These techniques were tested for effectiveness to clean and preserve the Capitol.

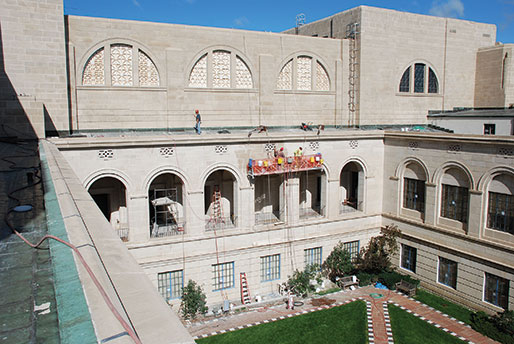

At the 1998 beginning of the Exterior Masonry Restoration Project, architectural consultants advised using a new cleaning technique, “Façade Gommage.” The technique uses a mineral abrasive that is the consistency of talc to clean the tower façade, rather than sand blasting as was previously done in the 1970s. The premise being that the aluminum oxide abrasive would remove the algae and dirt only, rather than clean and etch the surface as sand blasting does.


Poultice application
Poultice application: A mason tests a spot to remove body oil from the wall behind an elevator bench.

Further testing on the base of the building revealed that the soiling and algae on the exterior could be removed successfully by first applying a biocide treatment, and then high-pressure washing. The research and testing of cleaning techniques on the exterior limestone facade resulted in the most effective and least invasive technique being used to clean the Nebraska Capitol’s Indiana Limestone exterior.



The soiling on the interior walls of the Capitol results from a different set of circumstances than those affecting the exterior. There are three kinds of interior soiling to be addressed. Discoloration of the limestone is a result of mineral staining from leaks, soiling from indoor air pollution and soiling from human contact with surfaces. Humans excrete acids and oils that are absorbed by the porous limestone surfaces when touched by hands and other parts of the body.


cleaning the water stains and overall soiling on the walls of the George W. Norris Legislative Chamber cleaning the water stains and overall soiling on the walls of the George W. Norris Legislative Chamber
An integrated latex/detergent poultice product was successful in cleaning the water stains and overall soiling on the walls of the George W. Norris Legislative Chamber with minimal negative impact.

These three types of soiling have different chemical compositions. Capitol conservation staff members have tried different techniques to clean the interior walls, from scrubbing with soap and water to applying a clay poultice. Both of these methods require extensive preparation to protect the surrounding surfaces – large quantities of water that may further damage surfaces and then more cleanup of the work site.

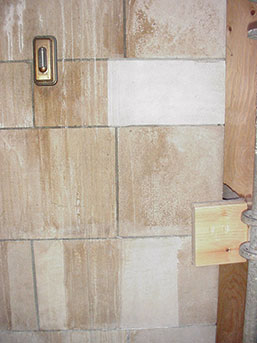

Mineral deposits from leak are cleaned
Mineral deposits from leak are cleaned.

During the planning of the 2008 West Chamber Restoration Project, Capitol Preservation staff and consultants looked for an interior cleaning product that would be effective and less invasive. They did not want water spray or clay dust spread throughout the highly finished legislative chamber and onto the finished surfaces of the walnut desks, gold leafed ceiling and wool carpet. A new integrated latex/detergent poultice product was successful in cleaning the water stains and overall soiling on the walls of the George W. Norris Legislative Chamber with minimal negative impact.



In 2009, a conservation consultant and Capitol conservation staff continued testing of the latex/detergent product in two areas of significant mineral staining. Because a new copper roof was installed over the southwest quadrant, conditions that had allowed the staining to occur were resolved, and cleaning began in the southwest elevator vestibule on third floor. This cleaning proved successful, and work moved to the third floor southeast stairwell.



The latex/detergent poultice has successfully cleaned all soiling conditions, the mineral deposits, general soiling from smoke and airborne particles, and hand soiling on the limestone surfaces. Capitol preservation staff members now have another tool to use in their ongoing work to clean and preserve the Nebraska State Capitol.


Roxanne Smith is public information officer for the Nebraska Office of the Capitol Commission. She can be reached at 402-471-0449. Visit www.capitol.org for more information.
