Refractory Mortar

Words: Dan Kamys

Chimneys and Fireplaces

Refractory mortar for masonry fireplace and chimney construction Refractory mortar for masonry fireplace and chimney construction

In recent years, we have seen vast changes regarding masons’ preferred choices of mortar for firebrick (fireplace) and clay flue liner (chimney) installations. Jobsite prepared mortars that may have included fireclay and Portland cement are now out of favor. Factory prepared refractory mortar is now the most widely accepted standard.

Refractory mortars have become easier to use, safer, are more readily available, and meet all of the local and national building codes. Masons who resisted them at first, now accept them as a better, safer masonry product, offering their customers a higher quality installation. No more guesswork regarding homespun mortar formulations, liability issues, or concerns regarding code compliance. And, without getting into all of the detail about the fireclay mixes breaking down and losing strength as they pass through the temperature range of 600 to 800 degrees, they simply don’t take the heat like refractory mortars do, nor do they have the strength or acid resistance.

While our building codes may have been a bit confusing or inconsistent in previous decades, that is no longer the case. The International Code Council (ICC), the International Residential Code (IRC) and the National Fire Protection Association (NFPA-211) now all require refractory mortar tested to American Society for Testing Materials, ASTM C-199, medium duty. Also called out in these codes are the high-temperature resistant manufacturing standards for firebrick (ASTM C-27 & C-1261) and for clay flue lining (ASTM C-315). It does make sense that the mortars used for installation of firebrick and clay flues should be manufactured to a high-temperature resistant standard as well. After all, what part of residential construction should have more attention to fire safety than that part in which we are going to intentionally build a fire?

There are basically two kinds of refractory mortar conforming to ASTMC-199 and permitted by code. Non-water soluble refractory mortar (sometimes called hydraulic setting) is a dry blend, requiring only cold water to be added, usually ships in a bag, and sets up or cures much like a regular mortar mix. The second type is a premixed version. It comes in a pail and is about the consistency of drywall compound. It usually requires no additives, and with a little mixing is ready to use.

Refractory mortar for masonry fireplace and chimney construction

Non-water soluble refractory mortar This type of refractory mortar is a blend of aggregates and binders that are not only high-temperature resistant, but also are acid resistant. This product is now the best all-around refractory mortar for fireplace and chimney construction. It is also the preferred choice for installation of the high-temperature resistant component parts for masonry bread ovens. It has the workability of a regular mortar mix, may have mortar color added to it, and is preferred if the joint thickness exceeds 1/8-inch. (By the way, always strike or finish smoothly the face of the joints, just like on a regular masonry wall, no matter the thickness of the joint.)

Non-water soluble refractory mortar is the only refractory mortar that should be used in outdoor applications. Premixed refractory mortars may wash out, even after drying. Due to the previously mentioned characteristics, non-water soluble product is the preferred choice for clay flue installations that may vent gas or oil appliances, or in any other instance in which moisture may be present within the clay flue. This is our overall refractory mortar of choice. It is used four to one versus other types of refractory mortar in residential construction.

Premixed refractory mortar Premixed refractory mortar is a blend of clays, aggregates, and has a liquid silicate as a binder. Some masons prefer it simply because it is premixed, nothing needs to be added, and with a simple quick stir it is ready to use. Since the firebrick can be laid in place very rapidly (as with a firebox with firebrick joints 1/16- to 1/8-inch thick, for example) installation is a little quicker. Ten seconds after setting the firebrick, it takes some effort to dislodge them, and the fast-drying of the mortar does not compromise its strength like with regular mortar.

We usually recommend building Rumford firebox walls straight up, but premixed mortar makes building even a curved or slant firebox a breeze, because you don’t have to form it or wait long for the mortar to set up. Premixed mortar can be a little messy to use, but remember, it is water soluble, so it cleans up easily with water.

You should butter a thin layer of refractory mortar on the firebrick that you are going to lay. Use a small margin trowel, because it fits in the bucket better than a pointed trowel. After applying a small amount on the firebrick, tap the firebrick in place so that the joint thickness is about 1/16-inch, and the excess mortar that oozes out from between the firebrick is removed with the margin trowel. Take your time and avoid the mess. The best thing is to lay a few firebricks, and then clean up the face of the firebrick with a sponge and clean water. The longer you wait to clean up the face of the firebrick, the harder it is to get all the particles saturated and removed.

In hot and dry climates we prefer the premixed refractory mortar, because it does not seem to dry out as quickly as do other mortar types. Pre-wetting the firebrick helps if ambient conditions are hot and dry, no matter which type of refractory mortar is used. Even though there are some things that we prefer about the premixed products, the non-water soluble hydraulic setting refractory mortar is our first choice for all applications. In colder and damper climates, there is no question we like it better.
Questions Answered
Q: How long does the installation need to set after completion before building a fire? Bob: One overnight of drying is sufficient for any installation. Q: Where else do you use refractory mortar on your Rumford installations? Jim: I use refractory mortar for setting the firebrick and the throat and then for installing the smoke chamber as well as all of the clay flue lining. Q: Where can people find all they need to know about a masonry fireplace, chimney, or bread oven? Jim: Try Q: Any new publications regarding masonry fireplace or chimney construction? Bob: New York State Concrete Masonry Association, Tech Spec 3.5, online at
Product Watch

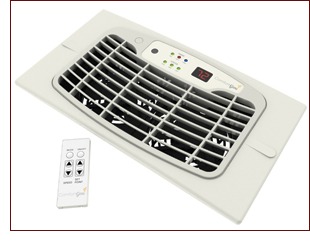

The ComfortGeniThe ComfortGeni model Geni 6xr is a through-wall fan that increases airflow from room to room or level to level, enabling building or home owners to enjoy the warmth from their fireplace or pellet stove in any room. With more than one-third of American homes using fireplaces as their primary heat source, it’s important for home owners to ensure their appliances are ready for the upcoming fall and winter seasons. Because the Geni 6xr is a through-wall fan, most homeowners will require the expertise of a contractor for installation. This new product also is not limited to residential use, and can be used in conjunction with any fireplace or HVAC system anywhere. The ComfortGeni is also eco-friendly and energy efficient. It has a built-in temperature sensor that automatically will shut the fan off when the source air temperature from a fireplace or wood stove is insufficient to create the desired temperature in the desired room. For more information, visit

Jim Buckley is CEO at Buckley Rumford Co., Bob Rucker is president of CMS Industries Inc.,
