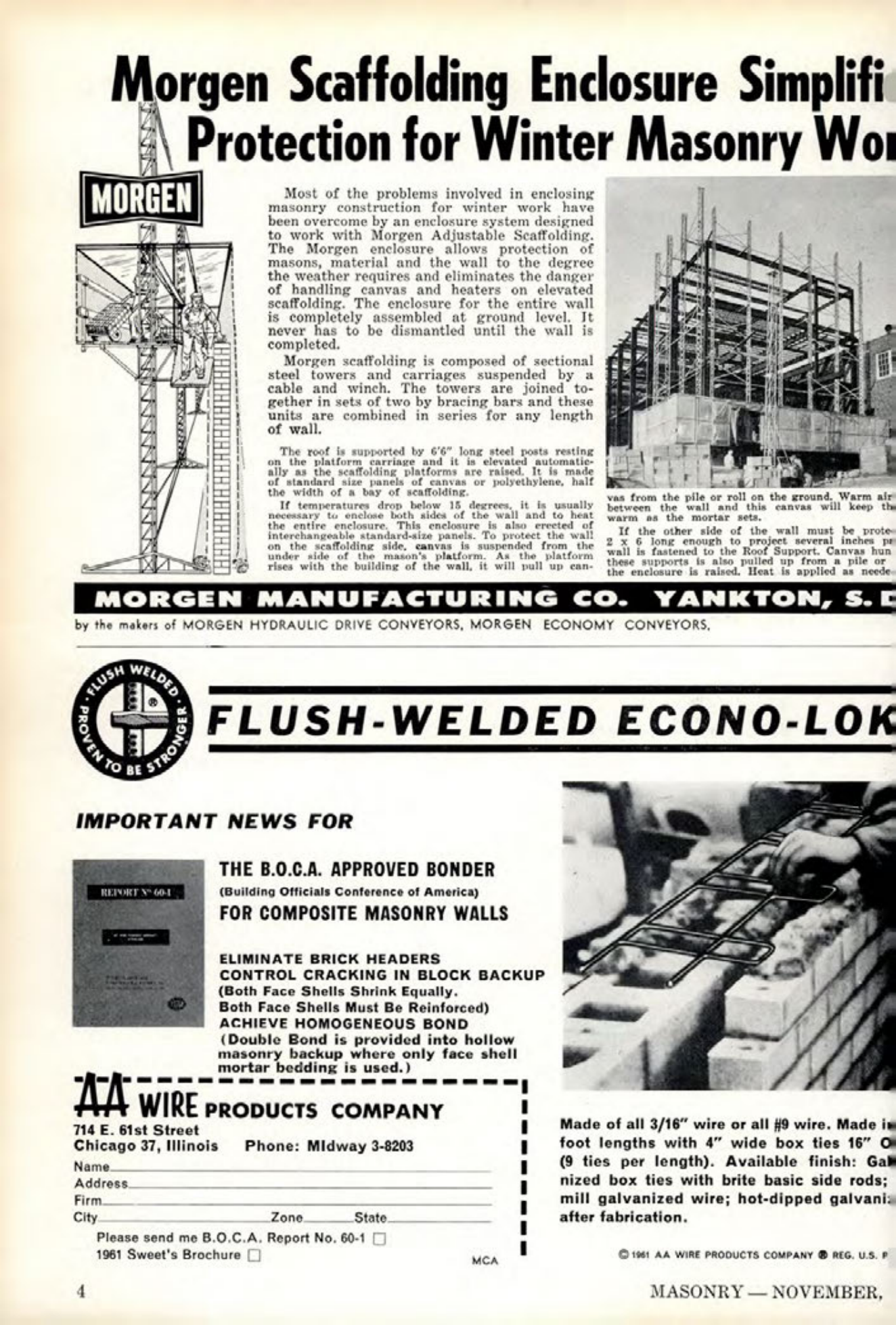

Masonry Magazine November 1961 Page. 4
Morgen Scaffolding Enclosure Simplifi
Protection for Winter Masonry Won
MORGEN
Most of the problems involved in enclosing masonry construction for winter work have been overcome by an enclosure system designed to work with Morgen Adjustable Scaffolding. The Morgen enclosure allows protection of masons, material and the wall to the degree the weather requires and eliminates the danger of handling canvas and heaters on elevated scaffolding. The enclosure for the entire wall is completely assembled at ground level. It never has to be dismantled until the wall is completed.
Morgen scaffolding is composed of sectional steel towers and carriages suspended by a cable and winch. The towers are joined together in sets of two by bracing bars and these units are combined in series for any length of wall.
The roof is supported by 6'6" long steel posts resting on the platform carriage and it is elevated automatically as the scaffolding platforms are raised. It is made of standard size panels of canvas or polyethylene, half the width of a bay of scaffolding.
If temperatures drop below 15 degrees, it is usually necessary to enclose both sides of the wall and to heat the entire enclosure. This enclosure is also erected of interchangeable standard-size panels. To protect the wall on the scaffolding side, canvas is suspended from the under side of the mason's platform. As the platform rises with the building of the wall, it will pull up canvas from the pile or roll on the ground. Warm air between the wall and this canvas will keep the wall warm as the mortar sets.
If the other side of the wall must be protected, 2 x 6 long enough to project several inches per wall is fastened to the Roof Support. Canvas hung from these supports is also pulled up from a pile or as the enclosure is raised. Heat is applied as needed.
MORGEN MANUFACTURING CO. YANKTON, S. by the makers of MORGEN HYDRAULIC DRIVE CONVEYORS, MORGEN ECONOMY CONVEYORS,
FLUSH WELDED
E
EN TO BE STRON
FLUSH-WELDED ECONO-LOK
IMPORTANT NEWS FOR
THE B.O.C.A. APPROVED BONDER
(Building Officials Conference of America)
FOR COMPOSITE MASONRY WALLS
ELIMINATE BRICK HEADERS
CONTROL CRACKING IN BLOCK BACKUP
(Both Face Shells Shrink Equally.
Both Face Shells Must Be Reinforced)
ACHIEVE HOMOGENEOUS BOND
(Double Bond is provided into hollow masonry backup where where only face shell mortar bedding is used.)
AA WIRE PRODUCTS COMPANY
714 E. 61st Street
Chicago 37, Illinois Phone: Midway 3-8203
Name.
Address.
Firm.
City
Zone
State.
Please send me B.O.C.A. Report No. 60-1
1961 Sweet's Brochure
MCA
Made of all 3/16" wire or all #9 wire. Made in foot lengths with 4" wide box ties 16" O (9 ties per length). Available finish: Galvanized box ties with brite basic side rods; mill galvanized wire; hot-dipped galvanized after fabrication.
1981 AA WIRE PRODUCTS COMPANY REG. U.S. P
MASONRY NOVEMBER,
