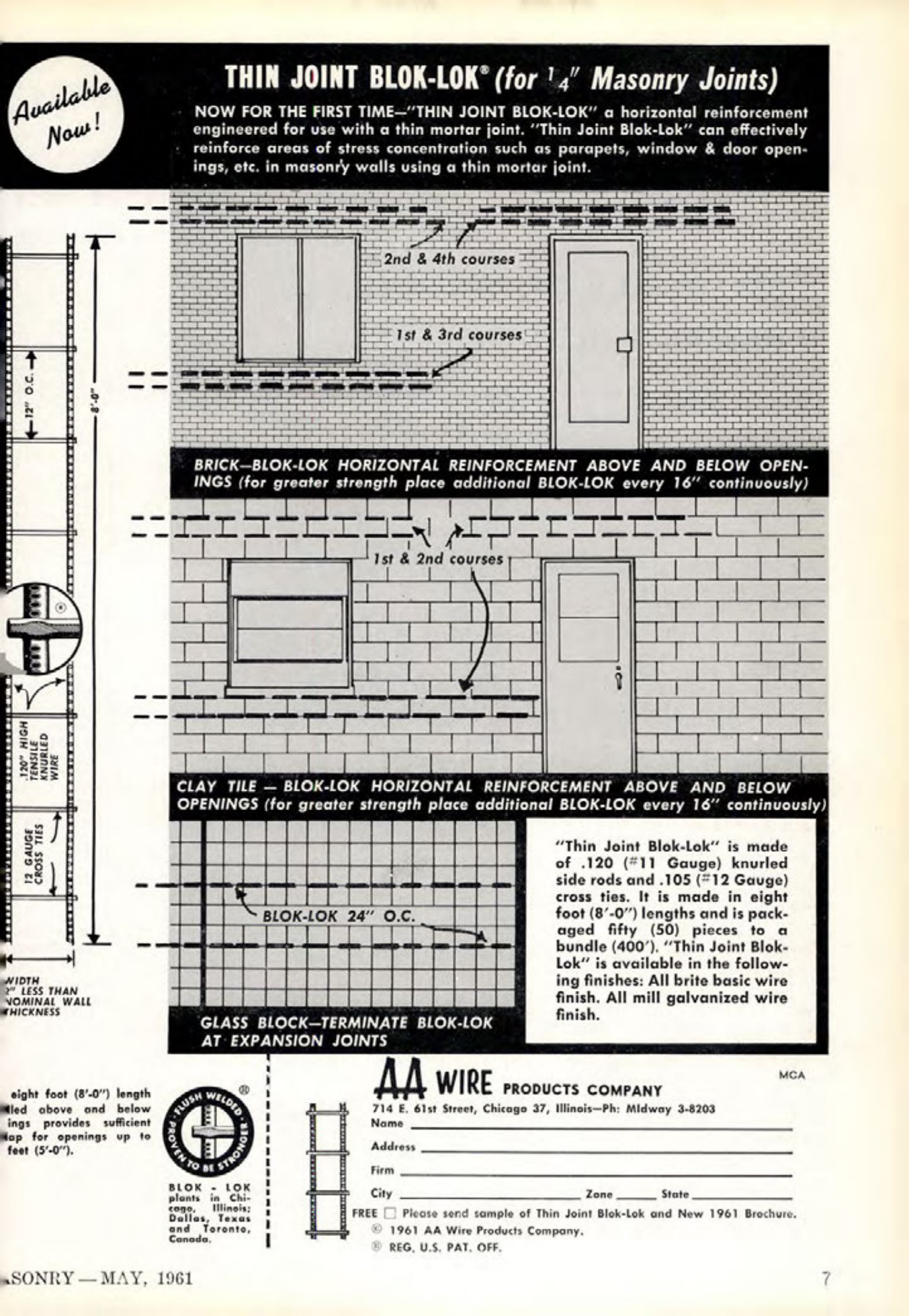

Masonry Magazine May 1961 Page. 7
120 HIGH
KNURLED
WIRE
Available
Now!
THIN JOINT BLOK-LOK® (for 14" Masonry Joints)
NOW FOR THE FIRST TIME "THIN JOINT BLOK-LOK" a horizontal reinforcement engineered for use with a thin mortar joint. "Thin Joint Blok-Lok" can effectively reinforce areas of stress concentration such as parapets, window & door openings, etc. in masonry walls using a thin mortar joint.
2nd & 4th courses
1st & 3rd courses
BRICK-BLOK-LOK HORIZONTAL REINFORCEMENT ABOVE AND BELOW OPENINGS (for greater strength place additional BLOK-LOK every 16" continuously)
1st & 2nd courses
12 GAUGE
CROSS TIES
WIDTH
LESS THAN
VOMINAL WALL
NICKNESS
sight foot (80) length led above and below ings provides sufficient Nap for openings up to feet (5-0).
CLAY TILE
BLOK-LOK HORIZONTAL REINFORCEMENT ABOVE AND BELOW OPENINGS (for greater strength place additional BLOK-LOK every 16" continuously)
BLOK-LOK 24" О.С.
GLASS BLOCK-TERMINATE BLOK-LOK AT EXPANSION JOINTS
SLUSH WELDED
OND
VENTO DESTRO
LOK
BLOK
plants in Chi-
Dallas, Texas
and Toronto,
Canada
SONRY-MAY, 1961
AA WIRE
"Thin Joint Blok-Lok" is made of 120 (#11 Gauge) knurled side rods and.105 (12 Gauge) cross ties. It is made in eight foot (8'-0") lengths and is packaged fifty (50) pieces to a bundle (400'). "Thin Joint Blok-Lok" is available in the following finishes: All brite basic wire finish. All mill galvanized wire finish.
PRODUCTS COMPANY
714 E. 61st Street, Chicago 37, Illinois-Ph: Midway 3-8203
Name
Address
Firm
City
Zene
State
MCA
FREE Please send sample of Thin Joint Blok-Lok and New 1961 Brochure.
1961 AA Wire Products Company.
REG, U.S. PAT. OFF.
