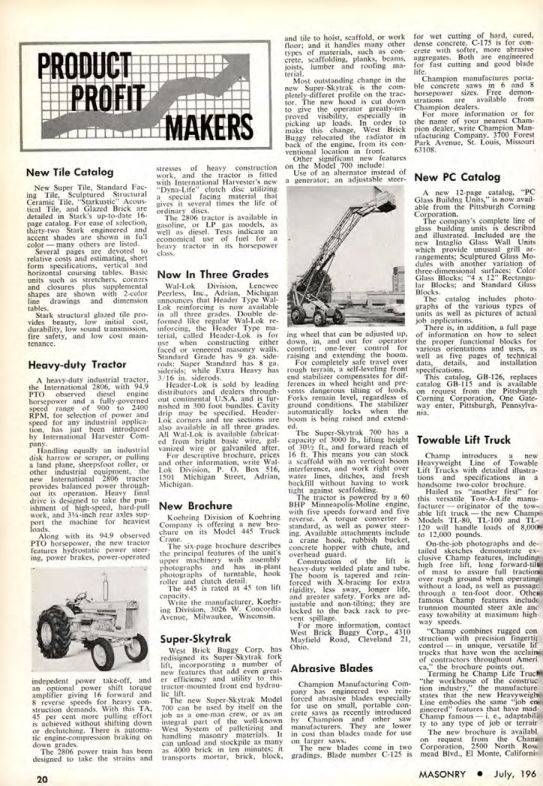

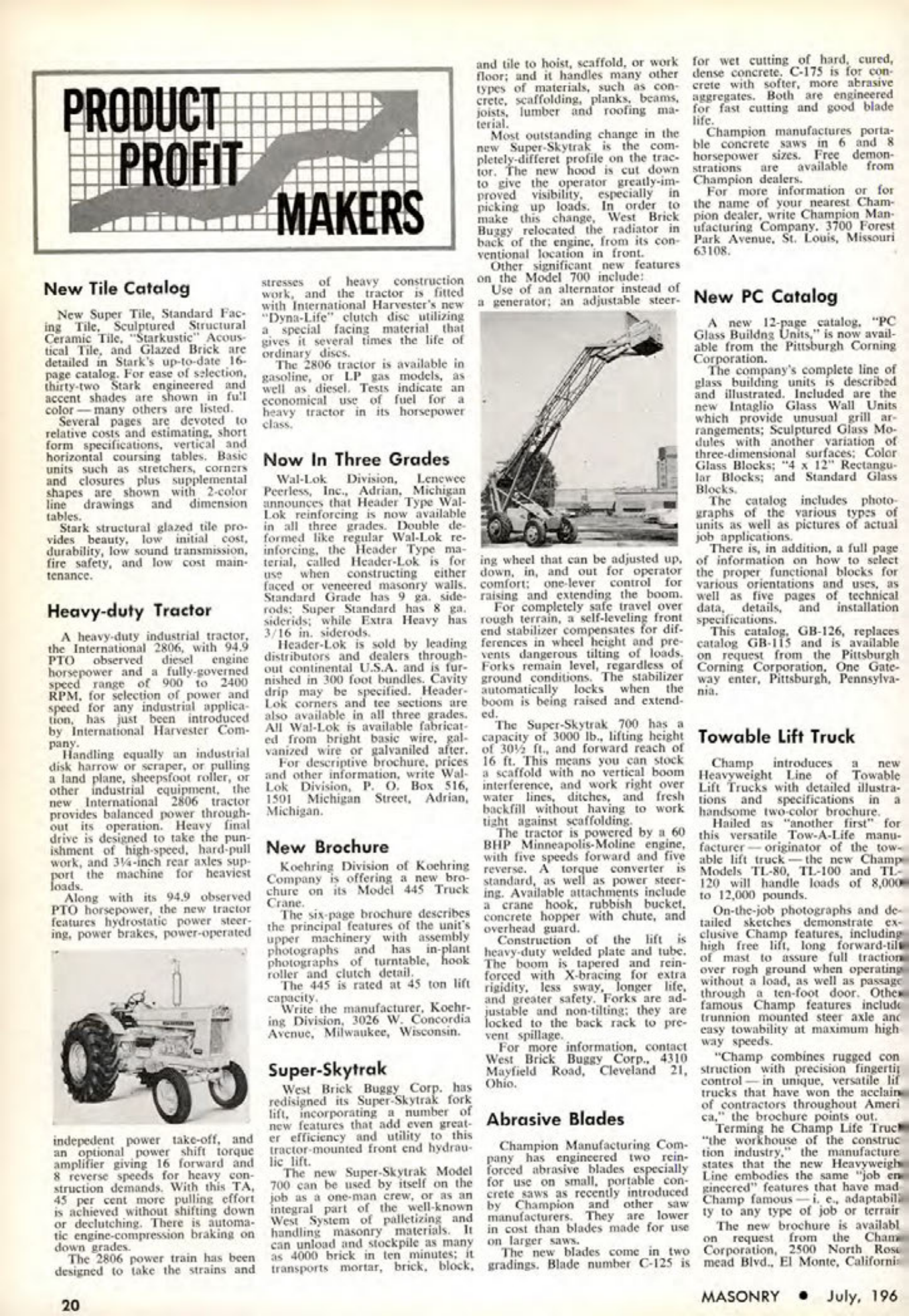

Masonry Magazine July 1964 Page. 20
PRODUCT
New Tile Catalog
New Super Tile, Standard Facing Tile, Sculptured Structural Ceramic Tile, "Starkustic" Acoustical Tile, and Glazed Brick are detailed in Stark's up-to-date 16-page catalog. For ease of selection, thirty-two Stark engineered and accent shades are shown in full color-many others are listed.
Several pages are devoted to relative costs and estimating, short form specifications, vertical and horizontal coursing tables. Basic units such as stretchers, corners and closures plus supplemental shapes are shown with 2-color line drawings and dimension tables.
Stark structural glazed tile provides beauty, low initial cost, durability, low sound transmission, fire safety, and low cost maintenance.
Heavy-duty Tractor
A heavy-duty industrial tractor, the International 2806, with 94.9 PTO observed diesel engine horsepower and a fully-governed speed range of 900 to 2400 RPM, for selection of power and speed for any industrial application, has just been introduced by International Harvester Company.
Handling equally an industrial disk harrow or scraper, or pulling a land plane, sheepsfoot roller, or other industrial equipment, the new International 2806 tractor provides balanced power throughout its operation. Heavy final drive is designed to take the punishment of high-speed, hard-pull work, and 314-inch rear axles support the machine for heaviest loads.
Along with its 94,9 observed PTO horsepower, the new tractor features hydrostatic power steering, power brakes, power-operated independent power take-off, and optional power shift torque amplifier giving 16 forward and 8 speeds for heavy construction demands. With this TA, 45 per cent more pulling effort is achieved without shifting down or declutching. There is automatic engine-compression braking on down grades.
The 2806 power train has been designed to take the strains and stresses of heavy construction work, and the tractor is fitted with International Harvester's new "Dyna-Life" clutch disc utilizing a special facing material that gives it several times the life of ordinary discs.
The 2806 tractor is available in gasoline, or LP gas models, as well as diesel. Tests indicate an economical use of fuel for a heavy tractor in its horsepower class.
Now In Three Grades
Wal-Lok Division, Lenewee Peerless, Inc., Adrian, Michigan announces that Header Type Wal-Lok reinforcing is now available in all three grades. Double deformed like regular Wal-Lok reinforcing, the Header Type material, called Header-Lok is for use when constructing either faced or veneered masonry walls, Standard Grade has 9 ga. side rods: Super Standard has 8 ga. siderids; while Extra Heavy has 3/16 in. siderods.
Header-Lok is sold by leading distributors and dealers throughout continental U.S.A. and is furnished in 300 foot bundles. Cavity drip may be specified. Header Lok corners and tee sections are also available in all three grades, All Wal-Lok is available fabricated from bright basic wire, galvanized wire or galvaniled after.
For descriptive brochure, prices and other information, write Wal Lok Division, P. O. Box 516, 1501 Michigan Street, Adrian, Michigan.
New Brochure
Koehring Division of Koehring Company is offering a new brochure on its Model 445 Truck Crane.
The six-page brochure describes the principal features of the unit's upper machinery with assembly photographs and has in-plant photographs of turntable, hook roller and clutch detail.
The 445 is rated at 45 ton lift capacity.
Write the manufacturer, Kochring Division, 3026 W. Concordia Avenue, Milwaukee, Wisconsin.
Super-Skytrak
West Brick Buggy Corp. has redisigned its Super-Skytrak fork lift, incorporating a number of new features that add even greater efficiency and utility to this tractor-mounted front hydraulic lift.
The new Super-Skytrak Model 700 can be used by itself on the job as a one-man crew, or as an integral part of the well-known West System of palletizing and handling masonry materials. It can unload and stockpile as many as 4000 brick in ten minutes; it transports mortar, brick, block, and tile to hoist, scaffold, or work floor; and it handles many other types of materials, such as concrete, scaffolding, planks, beams, joists, lumber and roofing material.
Most outstanding change in the new Super-Skytrak is the completely differet profile on the tractor. The new hood is cut down to give the operator greatly-improved visibility, especially in picking up loads. In order to make this change, West Brick Buggy relocated the radiator in back of the engine, from its conventional location in front.
Other significant new features on the Model 700 include: Use of an alternator instead of a generator, an adjustable steering wheel that can be adjusted up, down, in, and out for operator comfort; one-lever control for raising and extending the boom. For completely safe travel over rough terrain, a self-leveling front end stabilizer compensates for differences in wheel height and prevents dangerous tilting of loads Forks remain level, regardless of ground conditions. The stabilizer automatically locks when the boom is being raised and extended.
The Super-Skytrak 700 has a capacity of 3000 lb., lifting height of 30% ft, and forward reach of 16 ft. This means you can stock a scaffold with no vertical boom interference, and work right over water lines, ditches, and fresh backfill without having to work tight against scaffolding.
The tractor is powered by a 60 BHP Minneapolis-Moline engine, with five speeds forward and five reverse. A torque converter is standard, as well as power steering. Available attachments include a crane hook, rubbish bucket, concrete hopper with chute, and overhead guard.
Construction of the lift is heavy-duty welded plate and tube, The boom is tapered and reinforced with X-bracing for extra rigidity, less sway, longer life, and greater safety. Forks are adjustable and non-tilting; they are locked to the back rack to prevent spillage.
For more information, contact West Brick Buggy Corp., 4310 Mayfield Road, Cleveland 21, Ohio.
Abrasive Blades
Champion Manufacturing Company has engineered two reinforced abrasive blades especially for use on small, portable concrete saws as recently introduced by Champion and other saw manufacturers. They are lower in cost than blades made for use on larger saws.
The new blades come in two gradings. Blade number C-125 is for wet cutting of hard, cured, dense concrete, C-175 is for concrete with softer, more abrasive aggregates. Both are engineered for fast cutting and good blade life.
Champion manufactures portable concrete saws in 6 and 8 horsepower sizes. Free demonstrations are available from Champion dealers.
For more information or for the name of your nearest Champion dealer, write Champion Manufacturing Company. 3700 Forest Park Avenue, St. Louis, Missouri 63108.
New PC Catalog
A new 12-page catalog. "PC Glass Buildng Units," is now available from the Pittsburgh Corning Corporation.
The company's complete line of glass building units is described and illustrated. Included are the new Intaglio Glass Wall Units which provide unusual grill arrangements; Sculptured Glass Modules with another variation of three-dimensional surfaces: Color Glass Blocks; "4 x 12" Rectangular Blocks; and Standard Glass Blocks.
The catalog includes photographs of the various types of units as well as pictures of actual job applications.
There is, in addition, a full page of information on how to select the proper functional blocks for various orientations and uses, as well as five pages of technical data, details, and installation specifications.
This catalog, GB-126, replaces catalog GB-115 and is available on request from the Pittsburgh Corning Corporation, One Gateway enter, Pittsburgh, Pennsylvania.
Towable Lift Truck
Champ introduces a new Heavyweight Line of Towable Lift Trucks with detailed illustrations and specifications in a handsome two-color brochure.
Hailed as "another first" for this versatile Tow-A-Life manufacturer originator of the towable lift truck the new Champ Models TL-80, TL-100 and TL 120 will handle loads of 8,000 to 12,000 pounds.
On-the-job photographs and detailed sketches demonstrate exclusive Champ features, including high free lift, long forward-tile of mast to assure full tractions over rogh ground when operating as well as passage through a ten-foot door. Other famous Champ features include trunnion mounted steer axle anc easy towability at maximum highway speeds.
"Champ combines rugged construction with precision fingertip control in unique, versatile lift trucks that have won the acclaim of contractors throughout America," the brochure points out.
Terming he Champ Life Truck "the workhouse of the construction industry," the manufacturer states that the new Heavyweighs Line embodies the same "job engineered" features that have mad Champ famousi. e, adaptability to any type of job or terrain.
The new brochure is available on request from the Chan Corporation, 2500 North Rosemead Blvd., El Monte, California.
