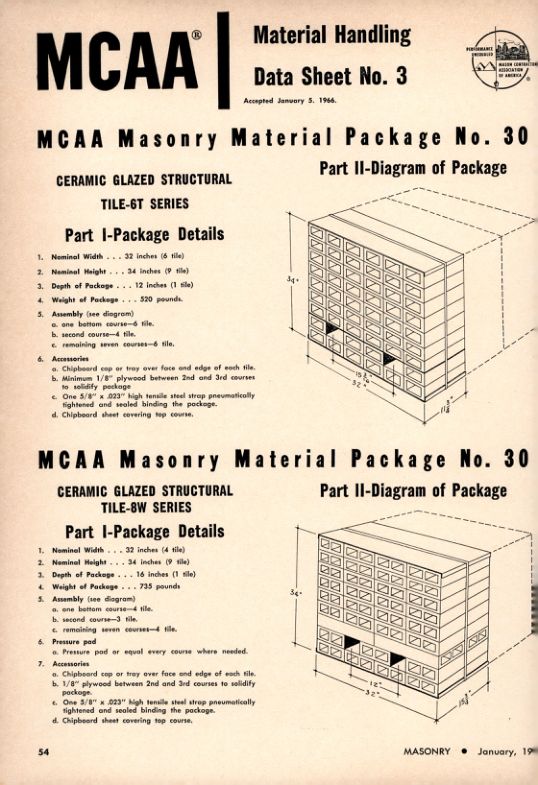

Masonry Magazine January 1966 Page. 52
MCAA |
Material Handling
Data Sheet No. 3
Accepted January 5. 1966.
MCAA Masonry Material Package No. 30
CERAMIC GLAZED STRUCTURAL
TILE-6T SERIES
Part II-Diagram of Package
Part I-Package Details
1. Nominal Width 32 inches (6 tile)
2. Nominal Height 34 inches (9 tile)
3. Depth of Package 12 inches (1 tile)
4. Weight of Package 520 pounds.
5. Assembly (see diagram)
a. one bottom course-6 tile.
b. second course-4 tile.
c. remaining seven courses-6 tile.
6. Accessories
a. Chipboard cop or tray over face and edge of each tile.
b. Minimum 1/8" plywood between 2nd and 3rd courses to solidify package
c. One 5/8" x 023" high tensile steel strap pneumatically tightened and sealed binding the package.
d. Chipboard sheet covering top course.
MCAA Masonry Material Package No. 30
CERAMIC GLAZED STRUCTURAL
TILE-8W SERIES
Part II-Diagram of Package
Part I-Package Details
1. Nominal Width 32 inches (4 tile)
2. Nominal Height 34 inches (9 tile)
3. Depth of Package 16 inches (1 tile)
4. Weight of Package 735 pounds
5. Assembly (see diagram)
a. one bottom course-4 tile.
b. second course-3 tile.
c. remaining seven courses-4 tile.
6. Pressure pad
a. Pressure pod or equal every course where needed.
7. Accessories
a. Chipboard cap or tray over face and edge of each tile.
b. 1/8" plywood between 2nd and 3rd courses to solidify package.
c. One 5/8" x 023" high tensile steel strap pneumatically tightened and sealed binding the package.
d. Chipboard sheet covering top course.
