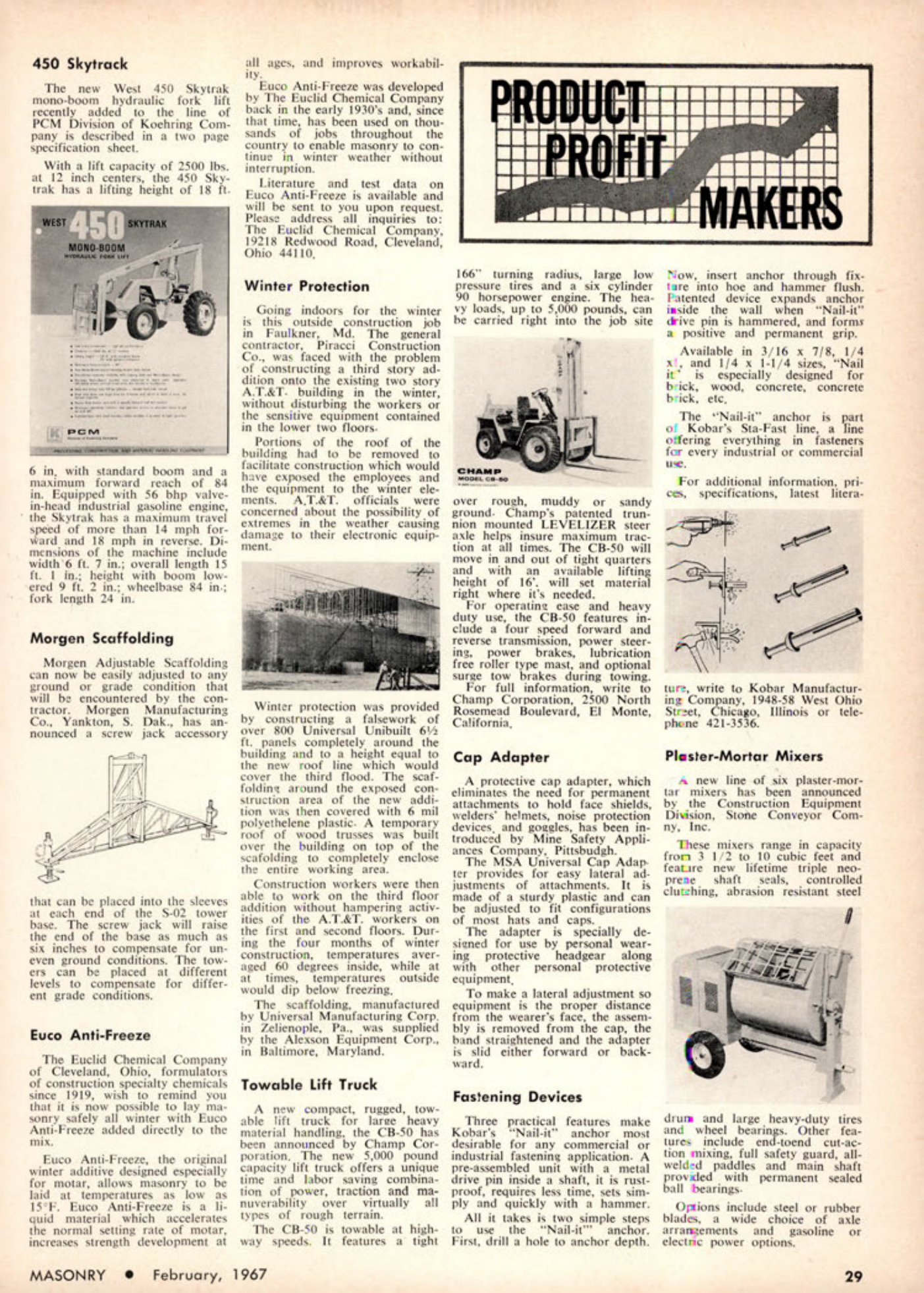

Masonry Magazine February 1967 Page. 29
450 Skytrack
The new West 450 Skytrak mono-boom hydraulic fork lift recently added to the line of PCM Division of Koehring Company is described in a two page specification sheet.
With a lift capacity of 2500 lbs. at 12 inch centers, the 450 Skytrak has a lifting height of 18 ft. 6 in, with standard boom and a maximum forward reach of 84 in. Equipped with 56 bhp valve-in-head industrial gasoline engine, the Skytrak has a maximum travel speed of more than 14 mph forward and 18 mph in reverse. Dimensions of the machine include width 6 ft. 7 in.; overall length 15 ft. 1 in. height with boom lowered 9 ft. 2 in.; wheelbase 84 in; fork length 24 in.
Morgen Scaffolding
Morgen Adjustable Scaffolding can now be easily adjusted to any ground or grade condition that will be encountered by the contractor. Morgen Manufacturing Co., Yankton, S. Dak, has announced a screw jack accessory that can be placed into the sleeves at each end of the S-02 tower base. The screw jack will raise the end of the base as much as six inches to compensate for uneven ground conditions. The towers can be placed at different levels to compensate for different grade conditions.
Euco Anti-Freeze
The Euclid Chemical Company of Cleveland, Ohio, formulators of construction specialty chemicals since 1919, wish to remind you that it is now possible to lay masonry safely all winter with Euco Anti-Freeze added directly to the mix.
Euco Anti-Freeze, the original winter additive designed especially for motar, allows masonry to be laid at temperatures as low as 15°F. Euco Anti-Freeze is a liquid material which accelerates the normal setting rate of motar, increases strength development at all ages, and improves workability. Euco Anti-Freeze was developed by The Euclid Chemical Company back in the early 1930's and, since that time, has been used on thousands of jobs throughout the country to enable masonry to continue in winter weather without interruption.
Literature and test data on Euco Anti-Freeze is available and will be sent to you upon request. Please address all inquiries to: The Euclid Chemical Company. 19218 Redwood Road, Cleveland, Ohio 44110,
Winter Protection
Going indoors for the winter is this outside construction job in Faulkner, Md. The general contractor, Piracci Construction Co., was faced with the problem of constructing a third story addition onto the existing two story A.T.&T. building in the winter, without disturbing the workers or the sensitive equipment contained in the lower two floors.
Portions of the roof of the building had to be removed to facilitate construction which would have exposed the employees and the equipment to the winter elements. A.T&T. officials were concerned about the possibility of extremes in the weather causing damage to their electronic equipment.
Winter protection was provided by constructing a falsework of over 800 Universal Unibuilt 6½ ft. panels completely around the building and to a height equal to cover the third flood. The scaffolding around the exposed construction area of the new addition was then covered with 6 mil polyethelene plastic. A temporary roof of wood trusses was built over the building on top of the scafolding to completely enclose the entire working area.
Construction workers were then able to work on the third floor addition without hampering activities of the A.T&T. workers on the first and second floors. During the four months of winter construction, temperatures averaged 60 degrees inside, while at at times, temperatures outside would dip below freezing.
The scaffolding, manufactured by Universal Manufacturing Corp. in Zelienople, Pa., was supplied by the Alexson Equipment Corp., in Baltimore, Maryland.
Towable Lift Truck
A new compact, rugged, towable lift truck for laree heavy material handling, the CB-50 has been announced by Champ Corporation. The new 5,000 pound capacity lift truck offers a unique time and labor saving combination of power, traction and maneuverability over virtually all types of rough terrain.
The CB-50 is towable at high way speeds. It features a tight 166 turning radius, large low pressure tires and a six cylinder 90 horsepower engine. The heavy loads, up to 5,000 pounds, can be carried right into the job site over rough, muddy or sandy ground. Champ's patented trunnion mounted LEVELIZER steer axle helps insure maximum traction all times. The CB-50 will move in and out of tight quarters and with an available lifting height of 16. will set material right where it's needed.
For operating ease and heavy duty use, the CB-50 features include a four speed forward and reverse transmission, power steering, power brakes, lubrication free roller type mast, and optional surge tow brakes during towing.
For full information, write to Champ Corporation, 2500 North Rosemead Boulevard, El Monte, California,
Cap Adapter
A protective cap adapter, which eliminates the need for permanent attachments to hold face shields, welders helmets, noise protection devices, and goggles, has been introduced by Mine Safety Appliances Company, Pittsbudgh.
The MSA Universal Cap Adapter provides for easy lateral adjustments of attachments. It is made of sturdy plastic and can be adjusted to fit configurations of most hats and caps.
The adapter is specially designed for use by personal wearing protective headgear along with other personal protective equipment.
To make a lateral adjustment so equipment is the proper distance from the wearer's face, the assembly is removed from the cap, the band straightened and the adapter is slid either forward or backward.
Fastening Devices
Three practical features make Kobar's "Nail-it" anchor most desirable for any commercial or industrial fastening application. A pre-assembled unit with a metal drive pin inside a shaft, it is rust proof, requires less time, sets simply and quickly with a hammer.
All it takes is two simple steps to use the "Nail-it"" anchor, First, drill a hole to anchor depth. Now, insert anchor through fixtare into hoe and hammer flush. Patented device expands anchor inside the wall when "Nail-it" drive pin is hammered, and forms a positive and permanent grip.
Available in 3/16 x 7/8, 1/4 xl, and 1/4 x 1-1/4 sizes, "Nail it is especially designed for brick, wood, concrete, concrete brick, etc,
The "Nail-it" anchor is part of Kobar's Sta-Fast line, a line offering everything in fasteners for every industrial or commercial. For additional information, prices, specifications, latest literature, write to Kobar Manufacturing Company, 1948-58 West Ohio Street, Chicago, Illinois or telephone 421-3536.
Plaster-Mortar Mixers
A new line of six plaster-mortar mixers has been announced by the Construction Equipment Division, Stone Conveyor Company, Inc.
These mixers range in capacity frors 3 1/2 to 10 cubic feet and featare new lifetime triple neo-prene shaft seals, controlled clutching, abrasion resistant steel drums and large heavy-duty tires and wheel bearings. Other features include end-toend cut-ac-tion mixing, full safety guard, all-welded paddles and main shaft provided with permanent sealed ball bearings
Options include steel or rubber blades, a wide choice of axle arrangements and gasoline electric power options.
