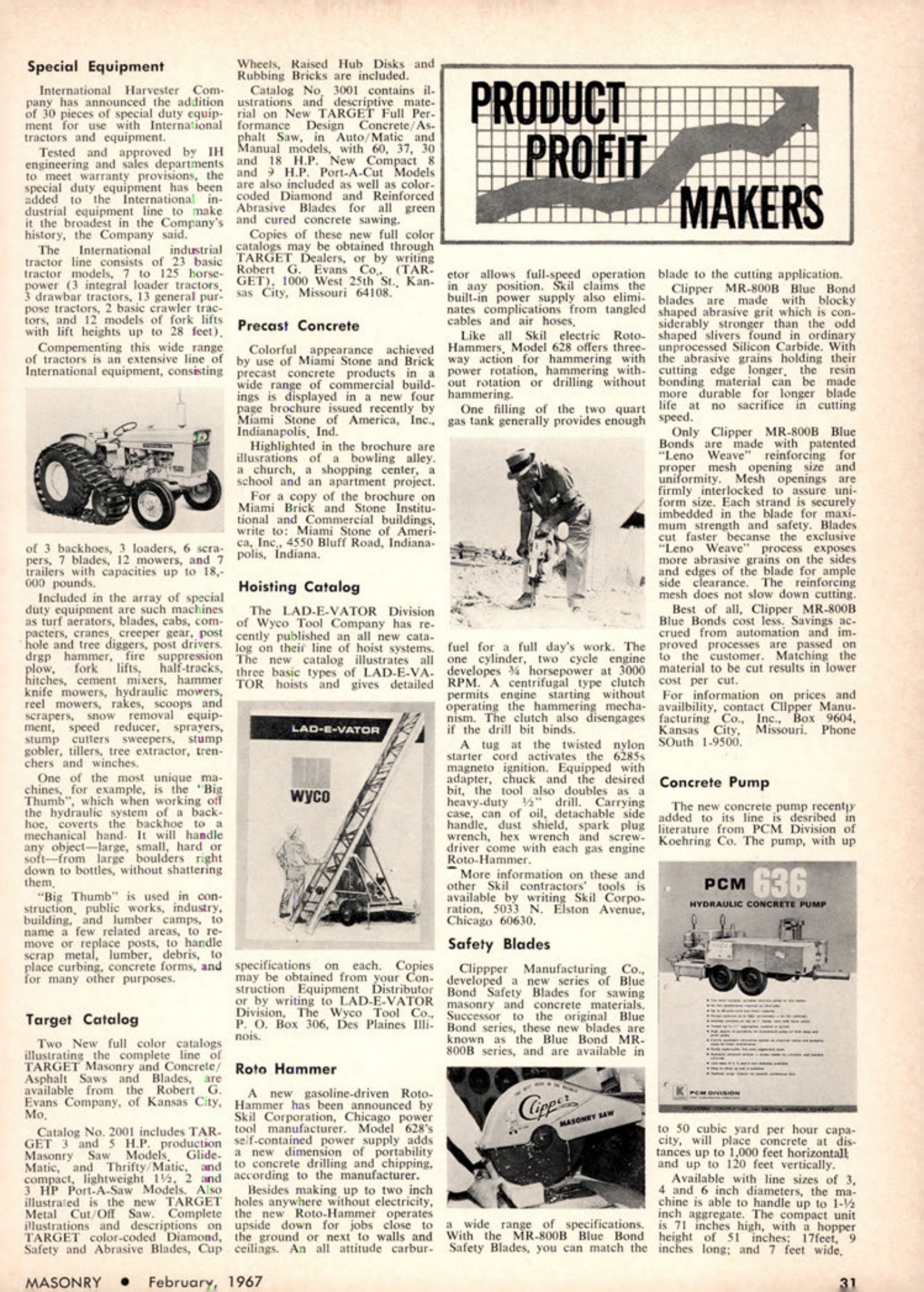

Masonry Magazine February 1967 Page. 31
Special Equipment
International Harvester Company has announced the addition of 30 pieces of special duty equipment for use with International tractors and equipment.
Tested and approved by IH engineering and sales departments to meet warranty provisions, the special duty equipment has been added to the International industrial equipment line to make it the broadest in the Company's history, the Company said.
The International industrial tractor line consists of 23 basic tractor models, 7 to 125 horse power (3 integral loader tractors, 3 drawbar tractors, 13 general purpose tractors, 2 basic crawler tractors, and 12 models of fork lifts with lift heights up to 28 feet).
Compementing this wide range of tractors is an extensive line of International equipment, consisting of 3 backhoes, 3 loaders, 6 scrapers, 7 blades, 12 mowers, and 7 trailers with capacities up to 18,000 pounds.
Included in the array of special duty equipment are such machines as turf aerators, blades, cabs, compacters, cranes, creeper gear, post hole and tree diggers, post drivers drop hammer, fire suppression plow, fork lifts, half-tracks, hitches, cement mixers, hammer knife mowers, hydraulic mowers, reel mowers, rakes, scoops and scrapers, snow removal equipment, speed reducer, sprayers, stump cutters sweepers, stamp gobler, tillers, tree extractor, trenchers and winches.
One of the most unique machines, for example, is the "Big Thumb", which when working off the hydraulic system of a backhoe, coverts the backhoe to a mechanical hand. It will handle any object-large, small, hard or soft-from large boulders right down to bottles, without shattering them.
"Big Thumb" is used in construction, public works, industry, building, and lumber camps, to name a few related areas, to remove or replace posts, to handle scrap metal, lumber, debris, to place curbing, concrete forms, and for many other purposes.
Target Catalog
Two New full color catalogs illustrating the complete line of TARGET Masonry and Concrete/Asphalt Saws and Blades, are available from the Robert G. Evans Company, of Kansas City, Mo.
Catalog No. 2001 includes TARGET 3 and 5 H.P. production Masonry Saw Models, Glide Matic, and Thrifty/Matic, and compact, lightweight 116, 2 and 3 HP Port-A-Saw Models. Also illustrated is the new TARGET Metal Cut/Off Saw. Complete illustrations and descriptions on TARGET color-coded Diamond, Safety and Abrasive Blades, Cup Wheels, Raised Hub Disks and Rubbing Bricks are included.
Catalog No, 3001 contains illustrations and descriptive material on New TARGET Full Performance Design Concrete/Asphalt Saw, in Auto/Matic and Manual models, with 60, 37, 30 and 18 H.P. New Compact 8 and H.P. Port-A-Cut Models are also included as well as color-coded Diamond and Reinforced Abrasive Blades for all green and cured concrete sawing.
Copies of these new full color catalogs may be obtained through TARGET Dealers, or by writing Robert G. Evans Co., (TARGET), 1000 West 25th St., Kansas City, Missouri 64108.
Precast Concrete
Colorful appearance achieved by use of Miami Stone and Brick precast concrete products in a wide range of commercial buildings is displayed in a new four page brochure issued recently by Miami Stone of America, Inc., Indianapolis, Ind.
Highlighted in the brochure are illusrations of a bowling alley, a church, a shopping center, a school and an apartment project.
For a copy of the brochure on Miami Brick and Stone Institutional and Commercial buildings, write to: Miami Stone of America, Inc,, 4550 Bluff Road, Indianapolis, Indiana.
Hoisting Catalog
The LAD-E-VATOR Division of Wyco Tool Company has recently published an all new catalog on their line of hoist systems. The new catalog illustrates all three basic types of LAD-E-VATOR hoists and gives detailed specifications on each. Copies may be obtained from your Construction Equipment Distributor or by writing to LAD-E-VATOR Division, The Wyco Tool Co. P. O. Box 306, Des Plaines Illinois.
Roto Hammer
A new gasoline-driven Roto-Hammer has been announced by Skil Corporation, Chicago power tool manufacturer. Model 628's self-contained power supply adds a new dimension of portability to concrete drilling and chipping, according to the manufacturer.
Besides making up to two inch holes anywhere without electricity, the new Roto-Hammer operates upside down for jobs close to the ground or next to walls and ceilings. An all attitude carburetor allows full-speed operation in any position. Skil claims the built-in power supply also eliminates complications from tangled cables and air hoses.
Like all Skil electric Roto Hammers, Model 628 offers three way action for hammering with power rotation, hammering without rotation or drilling without hammering.
One filling of the two quart gas tank generally provides enough fuel for a full day's work. The one cylinder, two cycle engine developes & horsepower at 3000 RPM. A centrifugal type clutch permits engine starting without operating the hammering mechanism. The clutch also disengages if the drill bit binds.
A tug at the twisted nylon starter cord activates the 6285s magneto ignition. Equipped with adapter, chuck and the desired tool also doubles as a heavy-duty" drill. Carrying case, can of oil, detachable side handle, dust shield, spark plug wrench, hex wrench and screwdriver come with each gas engine Roto-Hammer.
More information on these and other Skil contractors tools is available by writing Skil Corporation, 5033 N. Elston Avenue, Chicago 60630.
Safety Blades
Clippper Manufacturing Co., developed a new series of Blue Bond Safety Blades for sawing masonry and concrete materials, Successor to the original Blue Bond series, these new blades are known as the Blue Bond MR-800B series, and are available in a wide range of specifications, With the MR-800B Blue Bond Safety Blades, you can match the blade to the cutting application.
Clipper MR-800B Blue Bond blades are made with blocky shaped abrasive grit which is considerably stronger than the odd shaped slivers found in ordinary unprocessed Silicon Carbide. With the abrasive grains holding their cutting edge longer, the resin bonding material can be made more durable for longer blade life at no sacrifice in cutting speed.
Only Clipper MR-800B Blue Bonds are made with patented "Leno Weave" reinforcing for proper mesh opening size and uniformity. Mesh openings are firmly interlocked to assure uniform size. Each strand is securely imbedded in the blade for maximum strength and safety. Blades cut faster becanse the exclusive "Leno Weave" process exposes more abrasive grains on the sides and edges of the blade for ample side clearance. The reinforcing mesh does not slow down cutting.
Best of all, Clipper MR-800B Blue Bonds cost less. Savings accrued from automation and improved processes are passed on to the customer. Matching the material to be cut results in lower cost per cut.
For information on prices and availbility, contact Clipper Manufacturing Co., Inc., Box 9604, Kansas City, Missouri. Phone South 1-9500.
Concrete Pump
The new concrete pump recently added to its line is desribed in literature from PCM Division of Koehring Co. The pump, with up to 50 cubic yard per hour capacity, will place concrete at distances up to 1,000 feet horizontall and up to 120 feet vertically.
Available with line sizes of 3, 4 and 6 inch diameters, the machine is able to handle up to 1-12 inch aggregate. The compact unit is 71 inches high, with a hopper height of 51 inches: 17feet, 9 inches long; and 7 feet wide,
