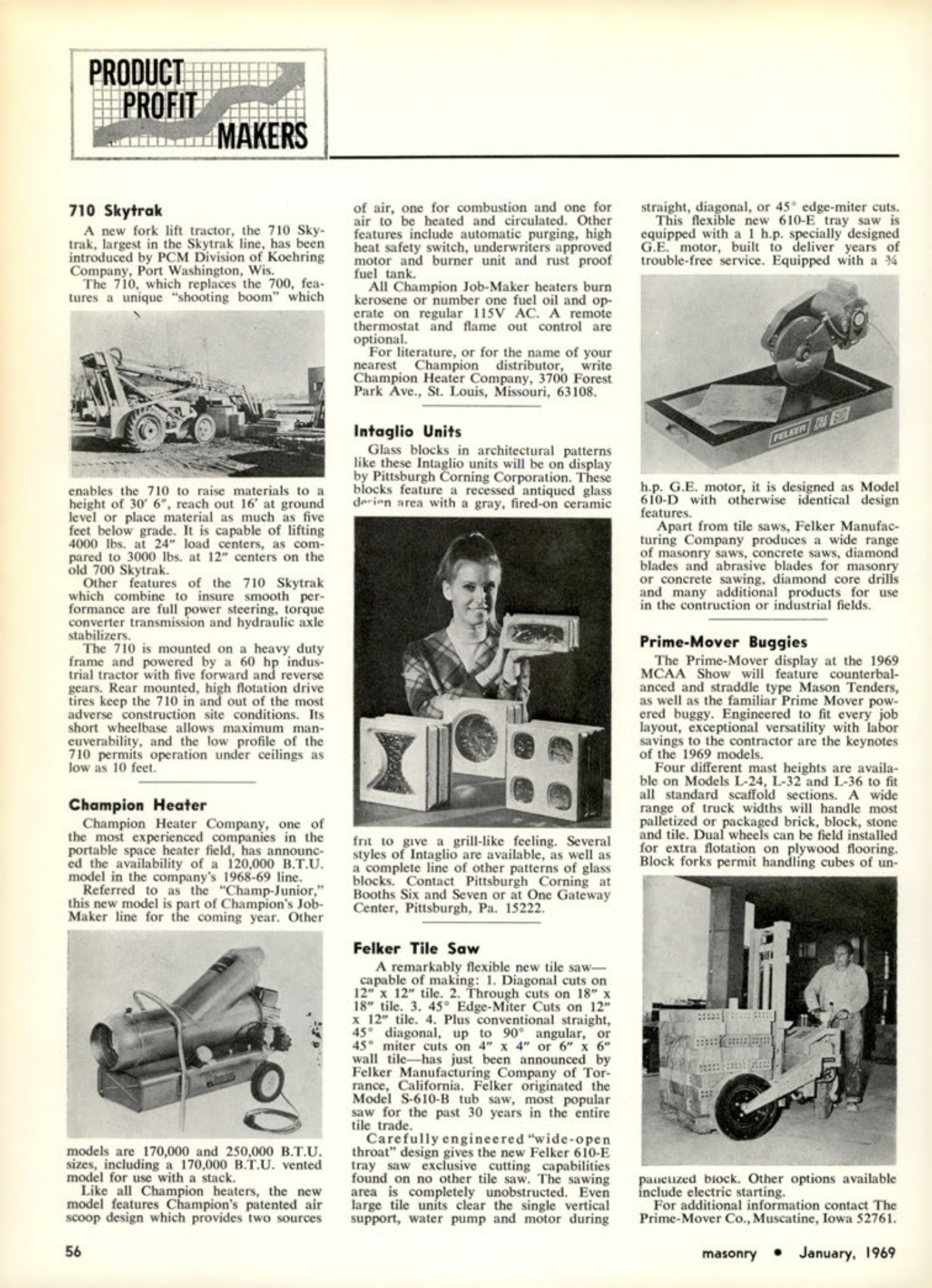

Masonry Magazine January 1969 Page. 56
PRODUCT
PROFIT
MAKERS
710 Skytrak
A new fork lift tractor, the 710 Skytrak, largest in the Skytrak line, has been introduced by PCM Division of Koehring Company, Port Washington, Wis.
The 710, which replaces the 700, features a unique "shooting boom" which enables the 710 to raise materials to a height of 30' 6", reach out 16' at ground level or place material as much as five feet below grade. It is capable of lifting 4000 lbs. at 24" load centers, as compared to 3000 lbs. at 12" centers on the old 700 Skytrak.
Other features of the 710 Skytrak which combine to insure smooth performance are full power steering, torque converter transmission and hydraulic axle stabilizers.
The 710 is mounted on a heavy duty frame and powered by a 60 hp industrial tractor with five forward and reverse gears. Rear mounted, high flotation drive tires keep the 710 in and out of the most adverse construction site conditions. Its short wheelbase allows maximum maneuverability, and the low profile of the 710 permits operation under ceilings as low as 10 feet.
Champion Heater
Champion Heater Company, one of the most experienced companies in the portable space heater field, has announced the availability of a 120,000 B.T.U. model in the company's 1968-69 line.
Referred to as the "Champ-Junior," this new model is part of Champion's Job-Maker line for the coming year. Other models are 170,000 and 250,000 B.T.U. sizes, including a 170,000 B.T.U. vented model for use with a stack.
Like all Champion beaters, the new model features Champion's patented air scoop design which provides two sources of air, one for combustion and one for air to be heated and circulated. Other features include automatic purging, high heat safety switch, underwriters approved motor and burner unit and rust proof fuel tank.
All Champion Job-Maker heaters burn kerosene or number one fuel oil and operate on regular 115V AC. A remote thermostat and flame out control are optional.
For literature, or for the name of your nearest Champion distributor, write Champion Heater Company, 3700 Forest Park Ave., St. Louis, Missouri, 63108.
Intaglio Units
Glass blocks in architectural patterns like these Intaglio units will be on display by Pittsburgh Corning Corporation. These blocks feature a recessed antiqued glass derien area with a gray, fired-on ceramic frit to give a grill-like feeling. Several styles of Intaglio are available, as well as a complete line of other patterns of glass blocks. Contact Pittsburgh Corning at Booths Six and Seven or at One Gateway Center, Pittsburgh, Pa. 15222.
Felker Tile Saw
A remarkably flexible new tile saw-capable of making: 1. Diagonal cuts on 12" x 12" tile. 2. Through cuts on 18" x 18" tile. 3. 45° Edge-Miter Cuts on 12" x 12" tile. 4. Plus conventional straight, 45° diagonal, up to 90° angular, or 45° miter cuts on 4" x 4" or 6" x 6" wall tile-has just been announced by Felker Manufacturing Company of Torrance, California. Felker originated the Model S-610-B tub saw, most popular saw for the past 30 years in the entire tile trade.
Carefully engineered "wide-open throat" design gives the new Felker 610-E tray saw exclusive cutting capabilities found on no other tile saw. The sawing area is completely unobstructed. Even large tile units clear the single vertical support, water pump and motor during straight, diagonal, or 45° edge-miter cuts. This flexible new 610-E tray saw is equipped with a 1 h.p. specially designed G.E. motor, built to deliver years of trouble-free service. Equipped with a h.p. G.E. motor, it is designed as Model 610-D with otherwise identical design features.
Apart from tile saws, Felker Manufacturing Company produces a wide range of masonry saws, concrete saws, diamond blades and abrasive blades for masonry or concrete sawing, diamond core drills and many additional products for use in the contruction or industrial fields.
Prime-Mover Buggies
The Prime-Mover display at the 1969 MCAA Show will feature counterbalanced and straddle type Mason Tenders, as well as the familiar Prime Mover powered buggy. Engineered to fit every job layout, exceptional versatility with labor savings to the contractor are the keynotes of the 1969 models.
Four different mast heights are available on Models L-24, L-32 and L-36 to fit all standard scaffold sections. A wide range of truck widths will handle most palletized or packaged brick, block, stone and tile. Dual wheels can be field installed for extra flotation on plywood flooring. Block forks permit handling cubes of un-paneuzed block. Other options available include electric starting.
For additional information contact The Prime-Mover Co., Muscatine, Iowa 52761.
